Abs Control

  1. NORMAL BRAKING

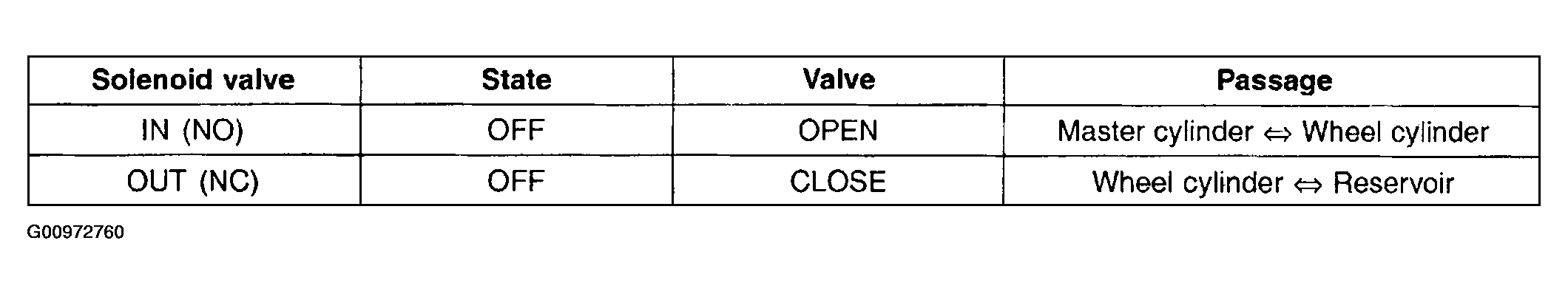

    Fig 1: Solenoid Valve Operation During Normal Braking
    G00972760Courtesy of HYUNDAI MOTOR CO.
  2. DUMP MODE

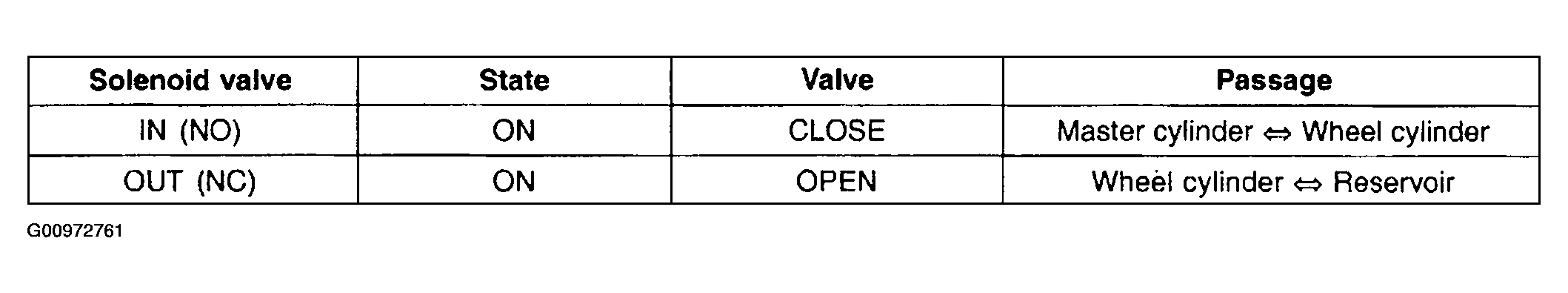

    Fig 2: Solenoid Valve Operation During Dump Mode
    G00972761Courtesy of HYUNDAI MOTOR CO.
  3. HOLD MODE

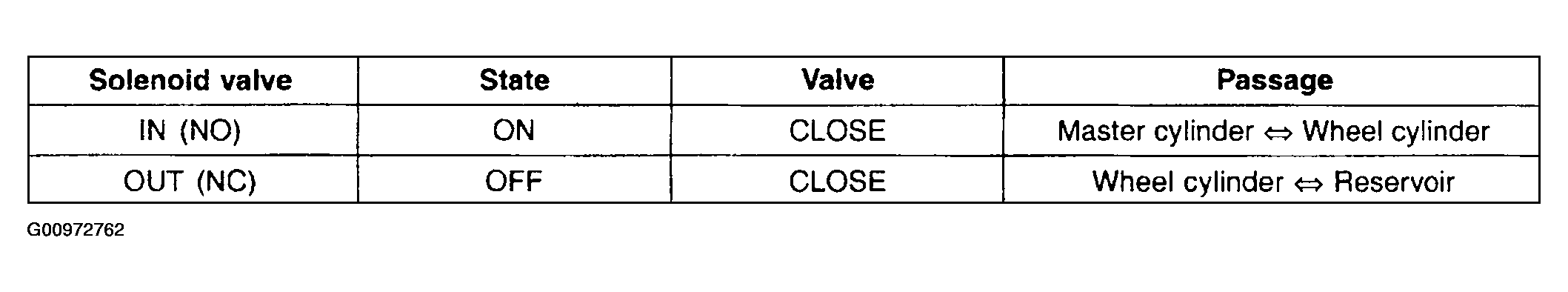

    Fig 3: Solenoid Valve Operation During Hold Mode
    G00972762Courtesy of HYUNDAI MOTOR CO.
  4. INCREASE MODE

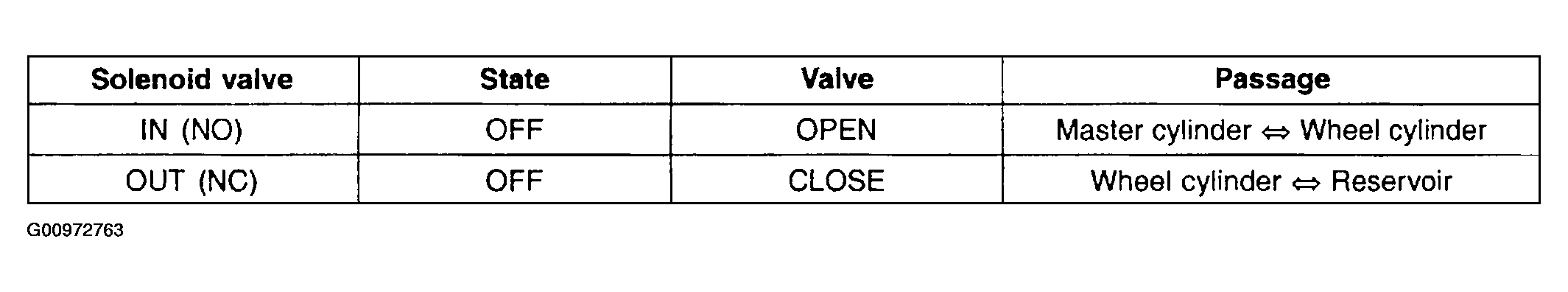

    Fig 4: Solenoid Valve Operation During Increase Mode
    G00972763Courtesy of HYUNDAI MOTOR CO.
