Anti-Lock Braking System Control Module: Components

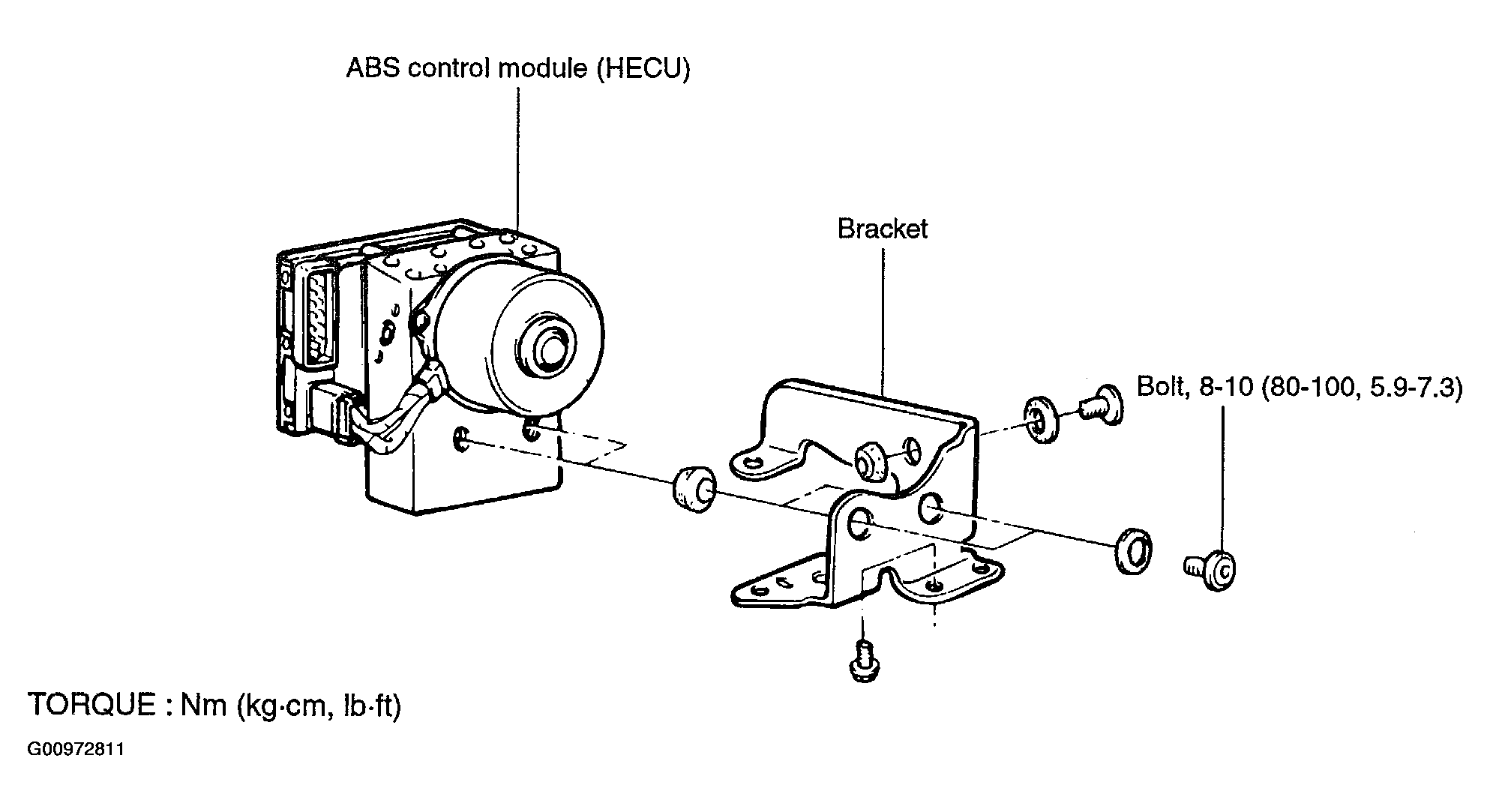

Fig 1: Anti-Lock Braking System Control Module Components

G00972811

Courtesy of HYUNDAI MOTOR CO.
