Home >> Hyundai >> 2003 >> Tiburon Base, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Abs (Anti-Lock Brake System) >> Component Specification

Component Specification

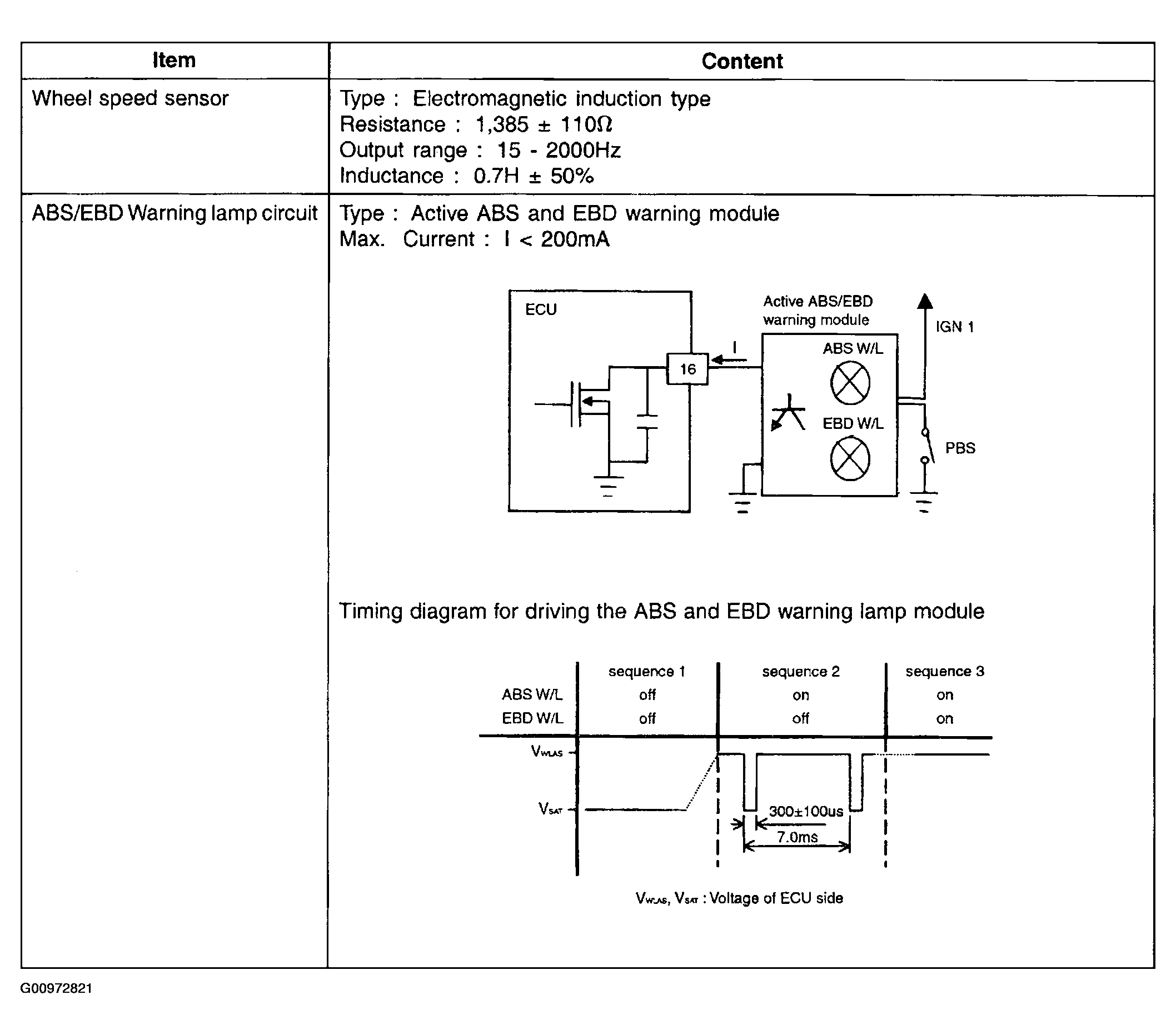

Fig 1: Component Specification Table (1 Of 3)
G00972821Courtesy of HYUNDAI MOTOR CO.

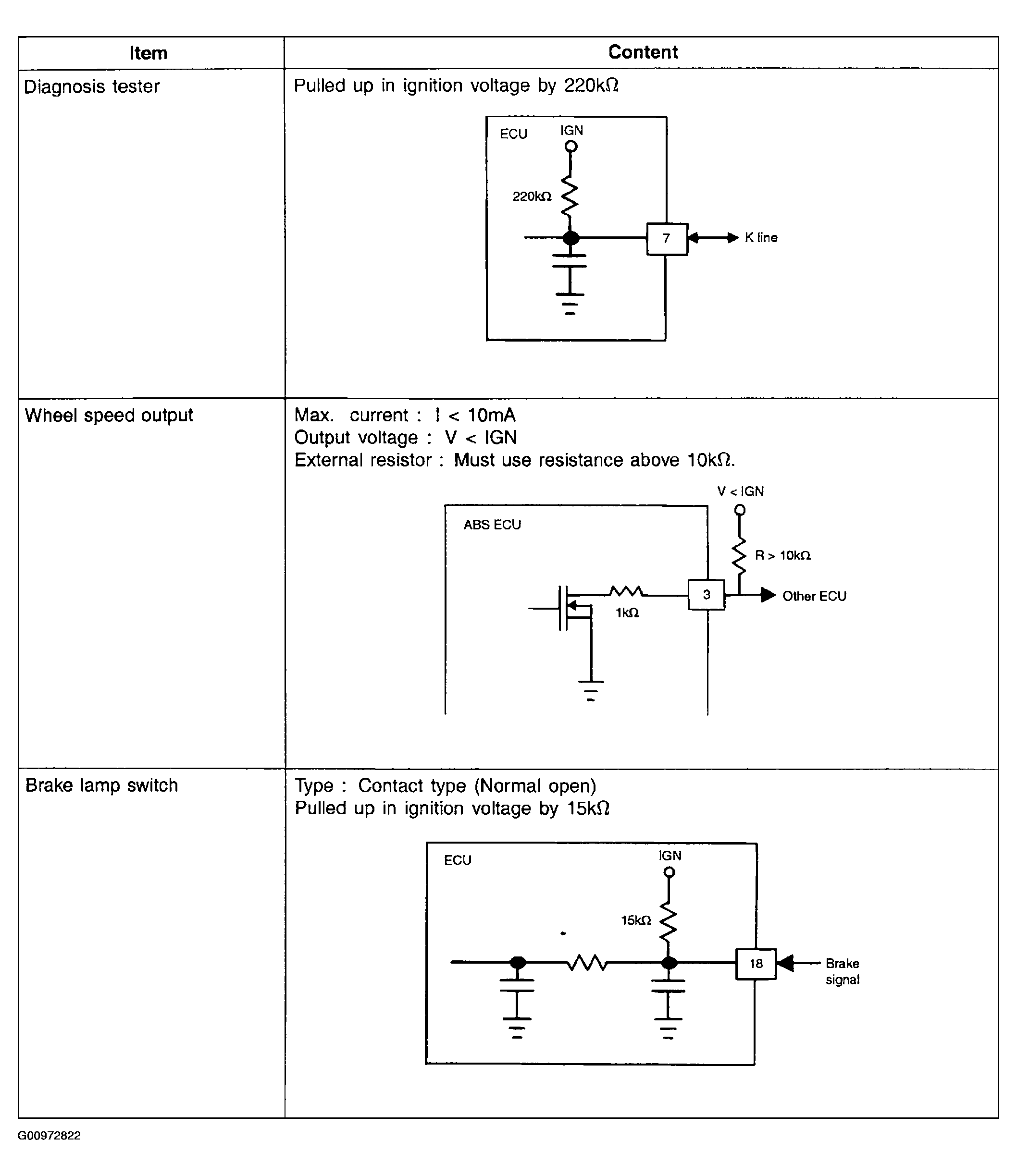

Fig 2: Component Specification Table (2 Of 3)
G00972822Courtesy of HYUNDAI MOTOR CO.

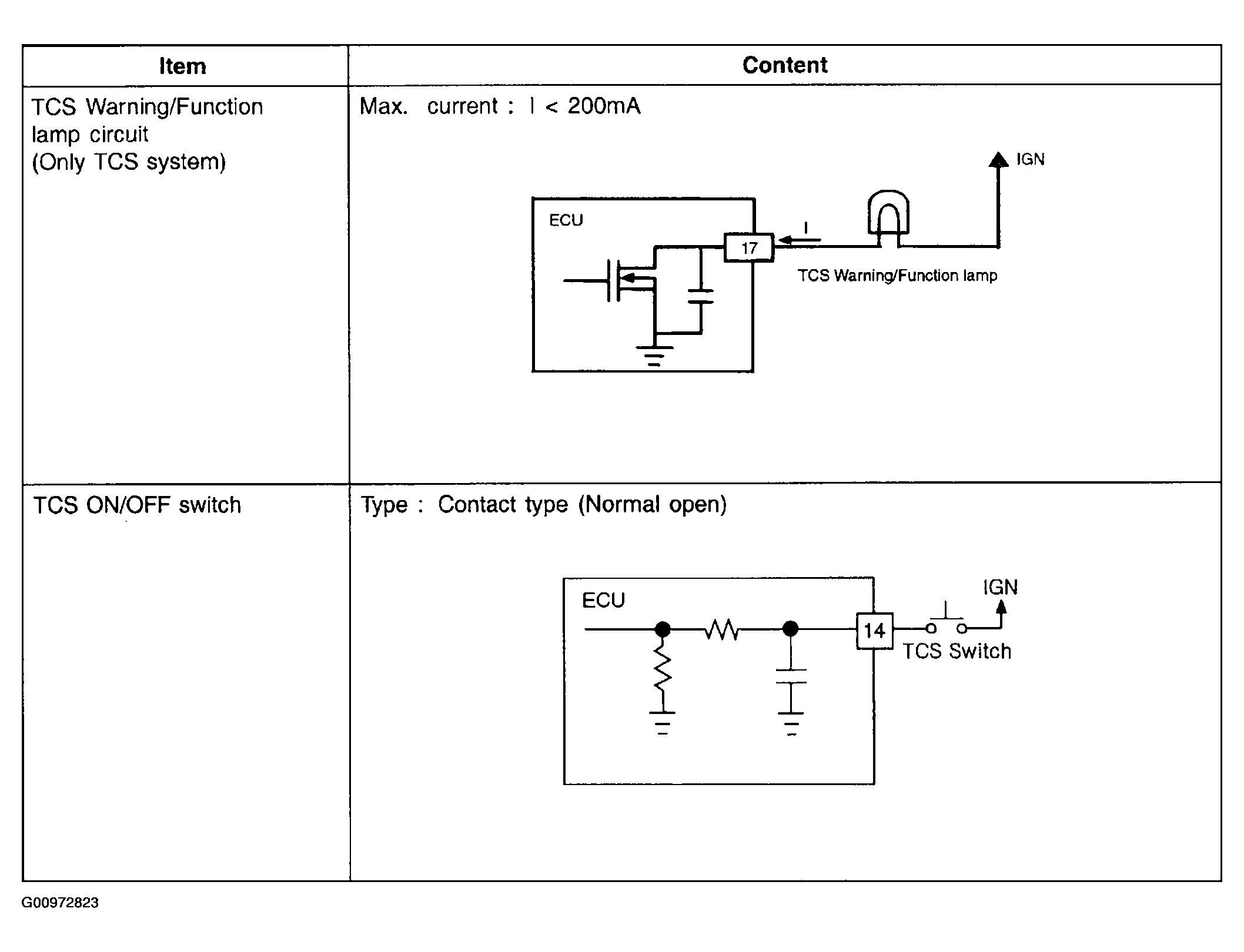

Fig 3: Component Specification Table (3 Of 3)
G00972823Courtesy of HYUNDAI MOTOR CO.
