Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

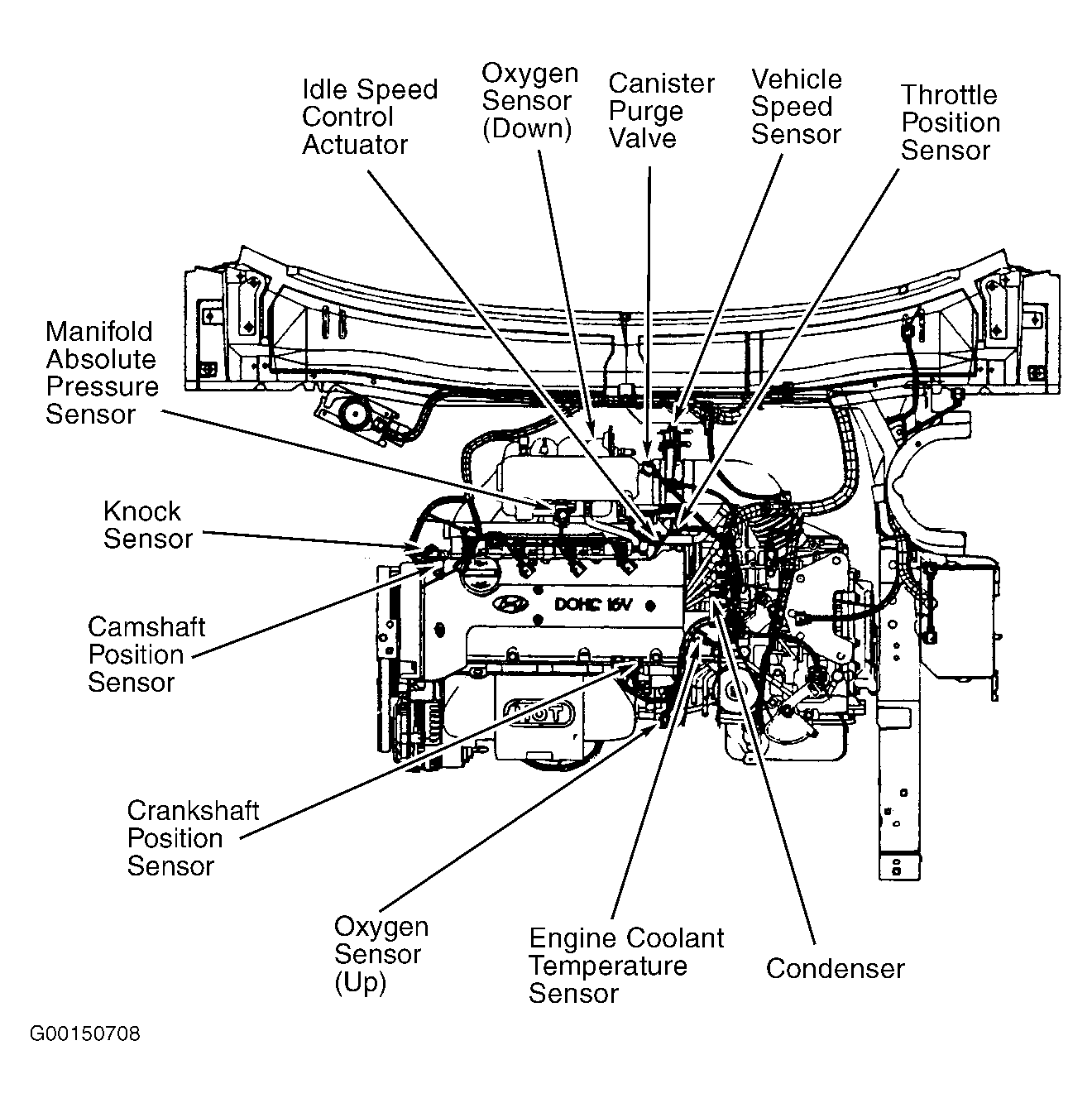

Fig 1: Engine Compartment (2.0L)

Courtesy of HYUNDAI MOTOR CO.

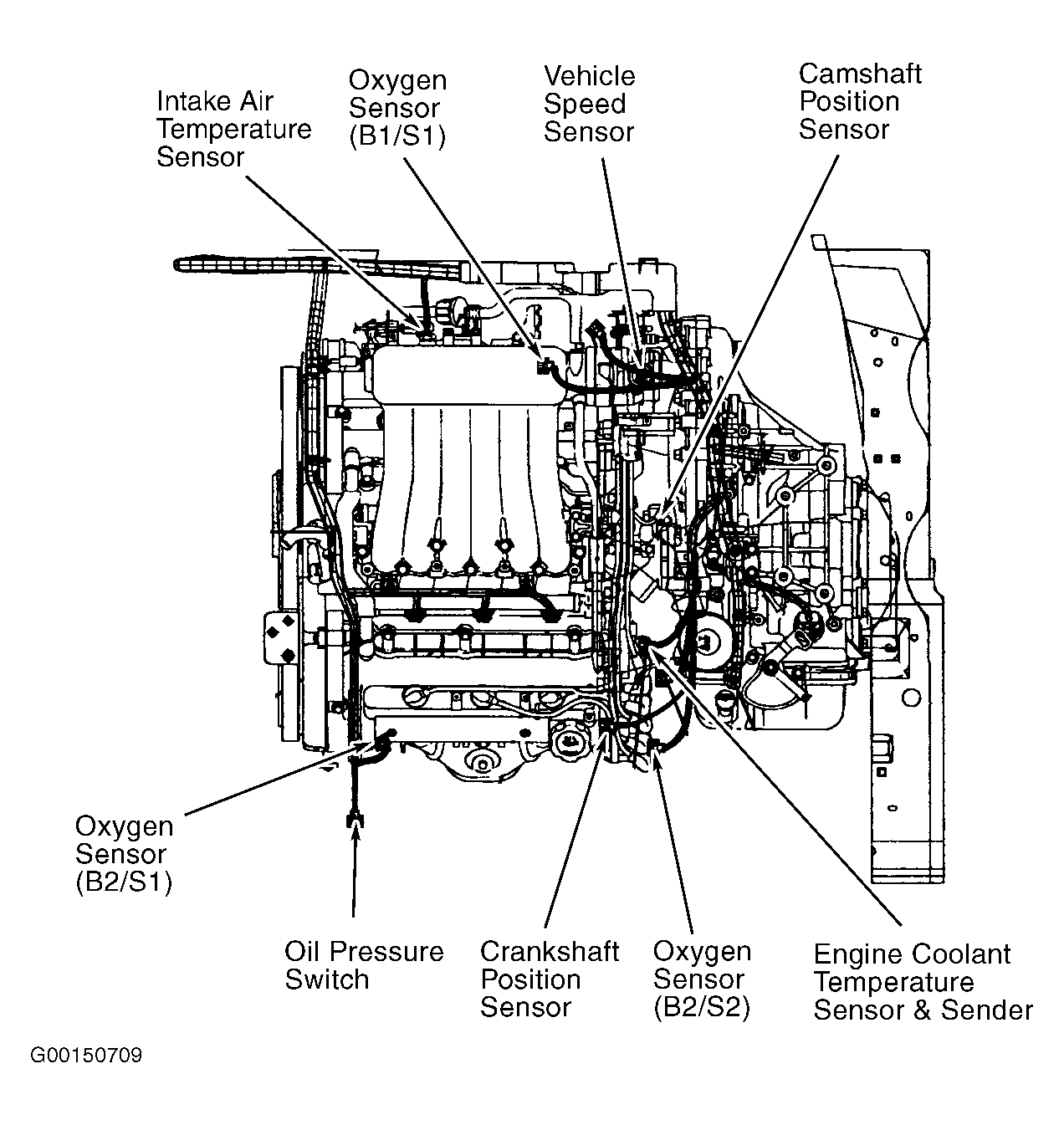

Fig 2: Engine Compartment (2.7L)

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Dash

Courtesy of HYUNDAI MOTOR CO.

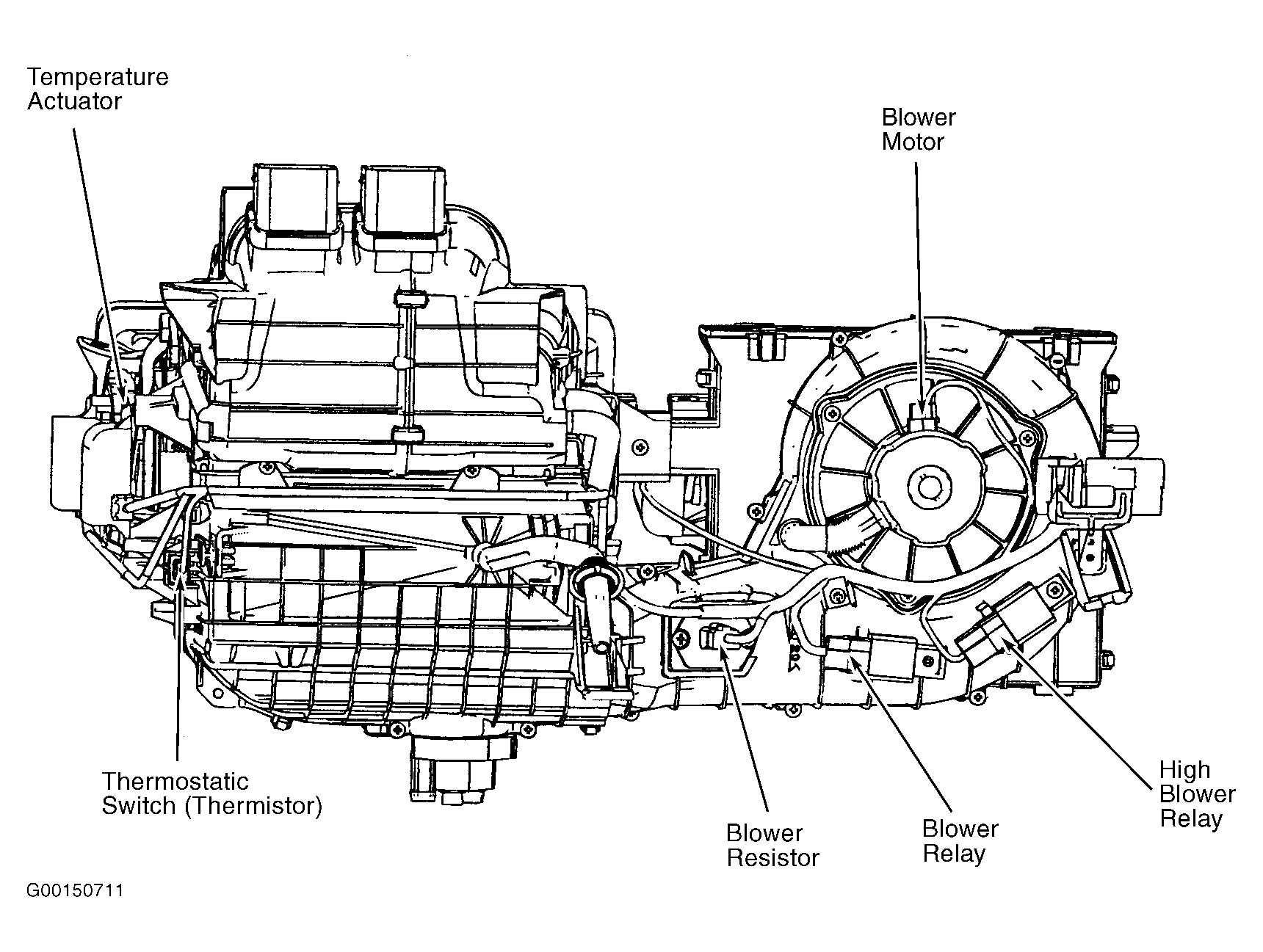

Fig 4: HVAC Unit

Courtesy of HYUNDAI MOTOR CO.

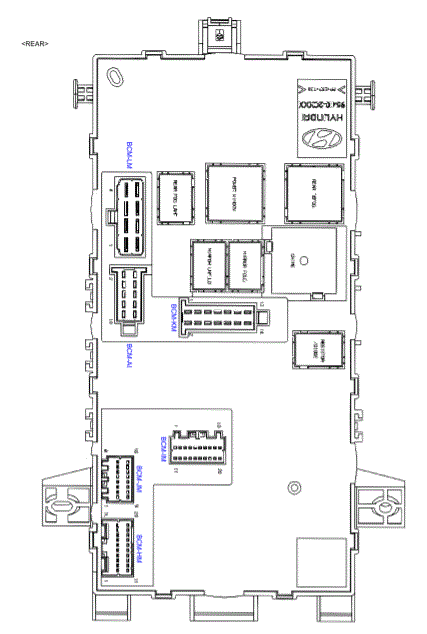

Fig 5: BCM Fuse Box Components

Courtesy of HYUNDAI MOTOR CO.

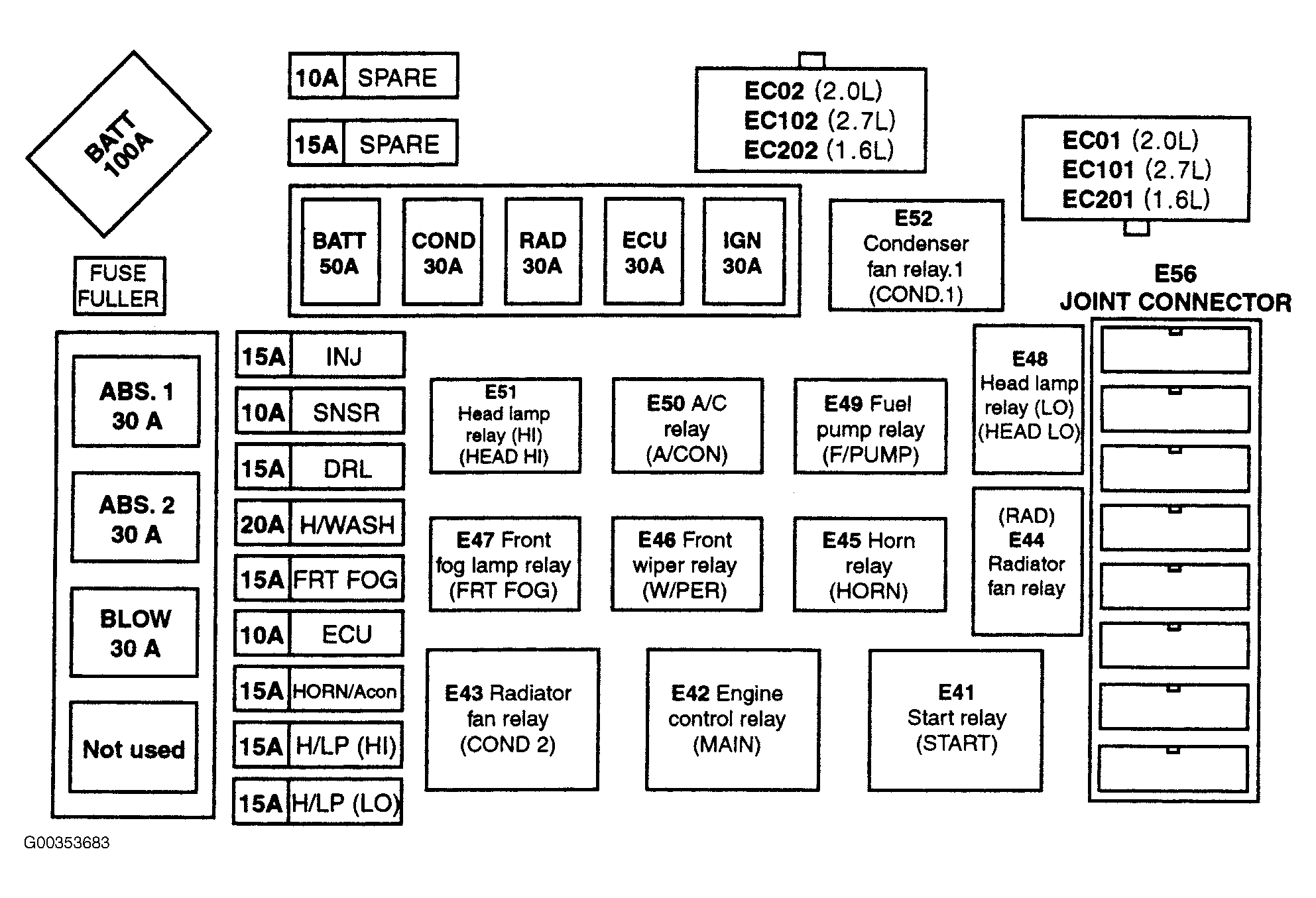

Fig 6: Engine Compartment Relay And Fuse Box

Courtesy of HYUNDAI MOTOR CO.
