Home >> Hyundai >> 2003 >> Tiburon Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Transaxle System >> General >> Automatic Transaxle Shift Control >> Components

Automatic Transaxle Shift Control: Components

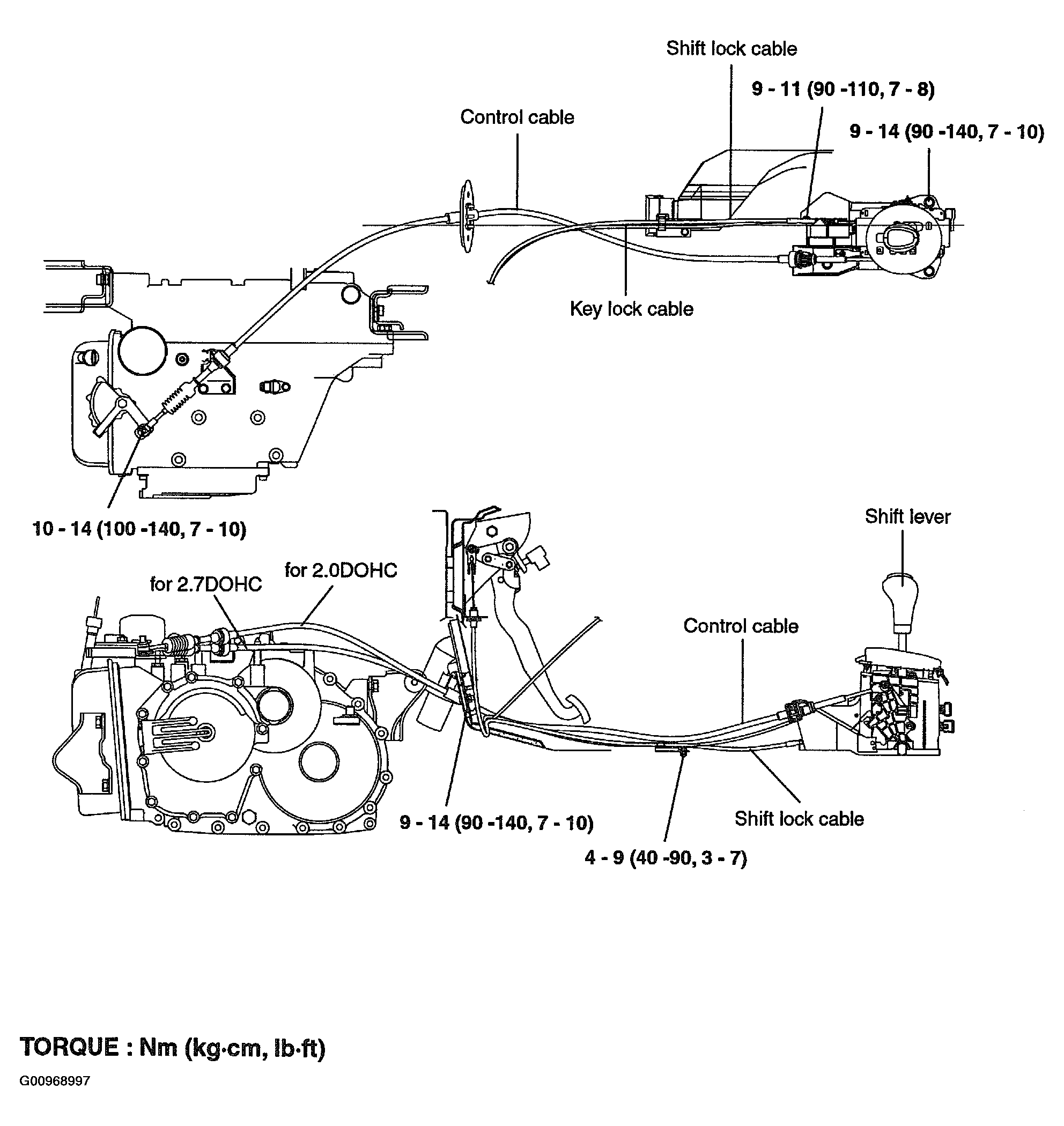

Fig 1: Automatic Transaxle Shift Control Components

G00968997

Courtesy of HYUNDAI MOTOR CO.
