Transaxle Range Switch Continuity Check

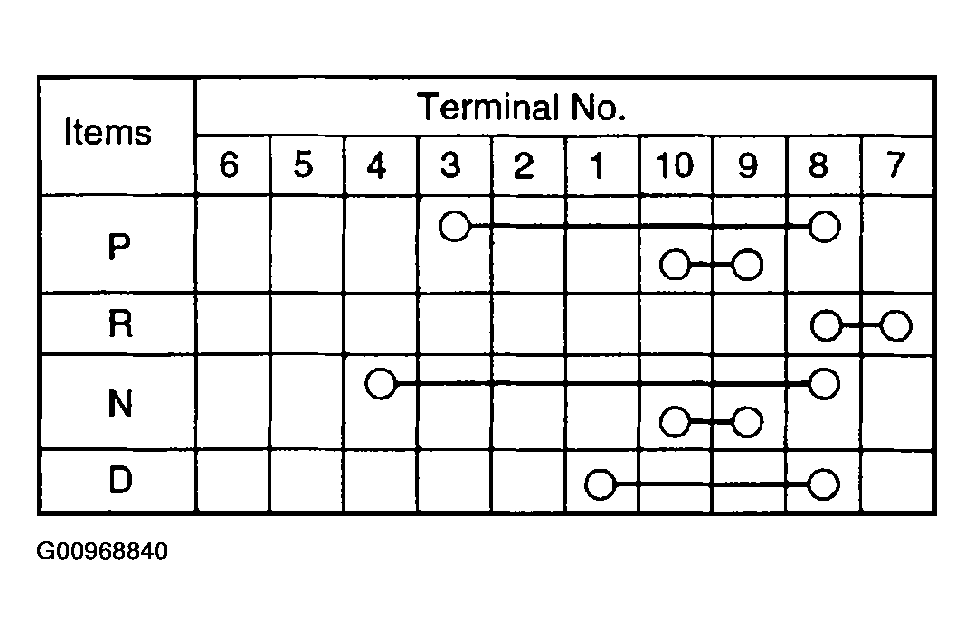

Fig 1: Transaxle Range Switch Continuity Table

Courtesy of HYUNDAI MOTOR CO.

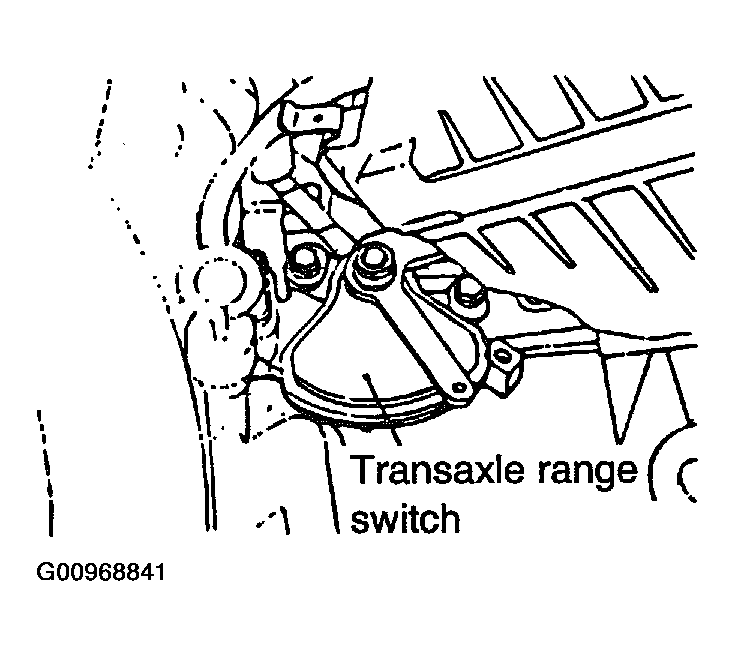

Fig 2: Identifying Transaxle Range Switch

Courtesy of HYUNDAI MOTOR CO.

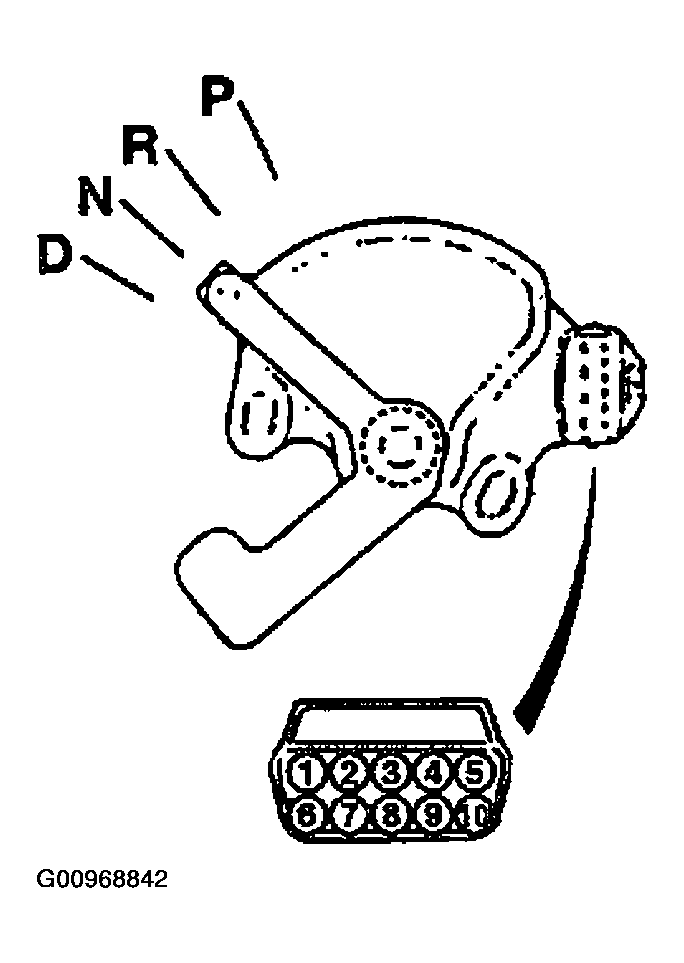

Fig 3: Identifying Transaxle Range Switch Positions & Connector Terminals
