Immobilizer Control System: Components

Fig 1: Locating Immobilizer Control Module
G00720835Courtesy of HYUNDAI MOTOR CO.

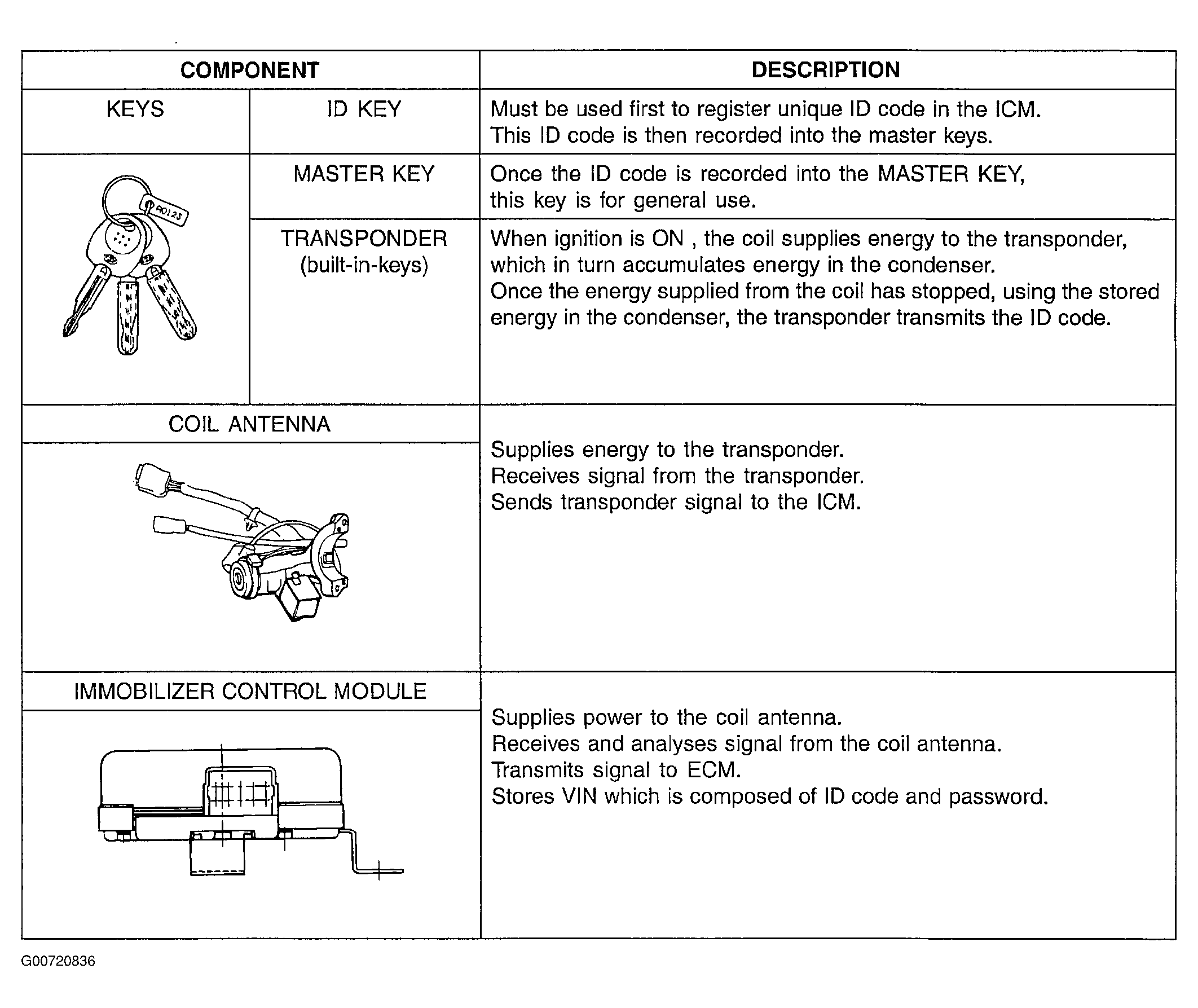

Fig 2: Identifying Immobilizer System Components (1 Of 2)
G00720836Courtesy of HYUNDAI MOTOR CO.

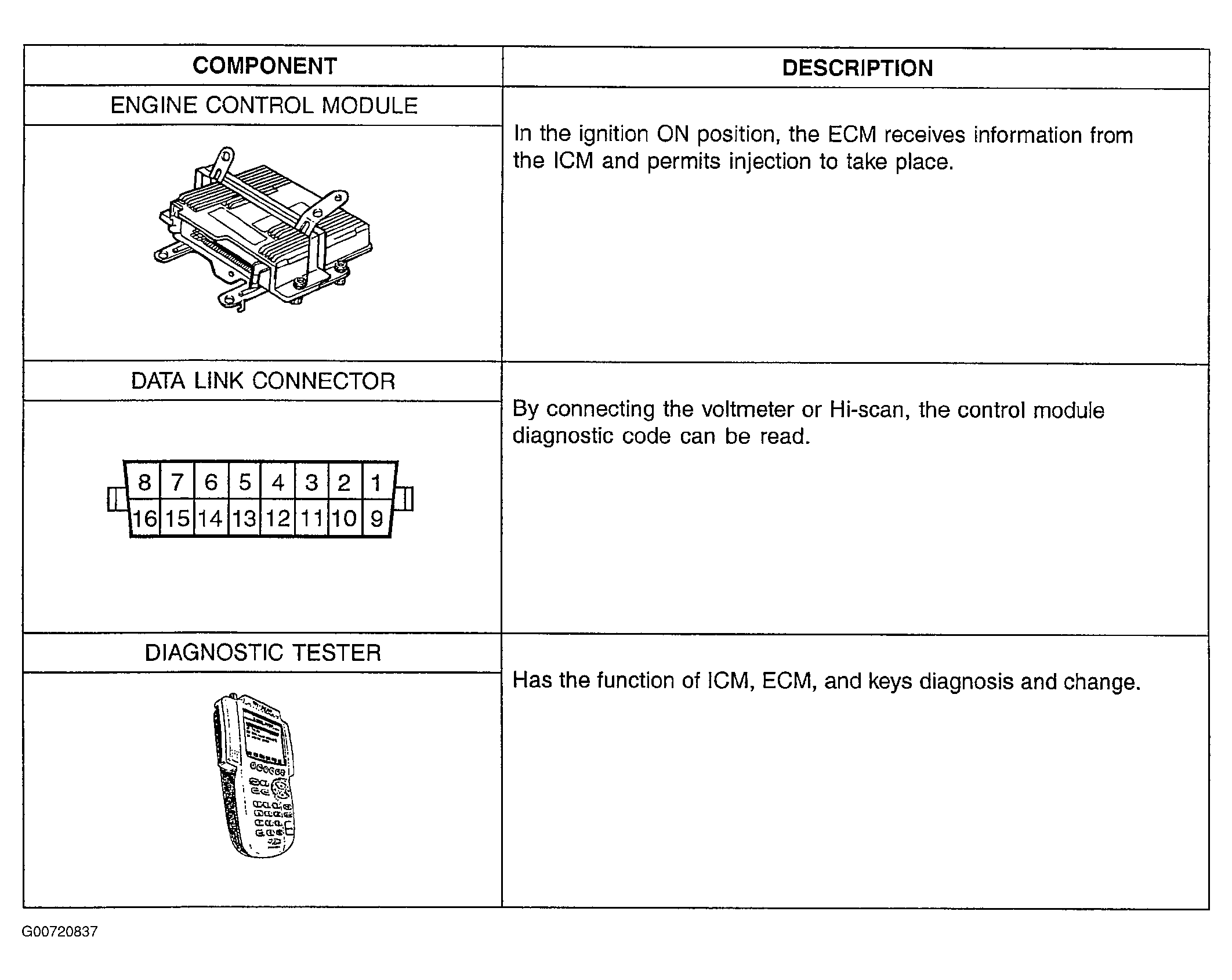

Fig 3: Identifying Immobilizer System Components (2 Of 2)
G00720837Courtesy of HYUNDAI MOTOR CO.
