Integrated Memory System
>>
IMS (Integrated Memory System)
>>
IMS Control Switch
IMS Control Switch

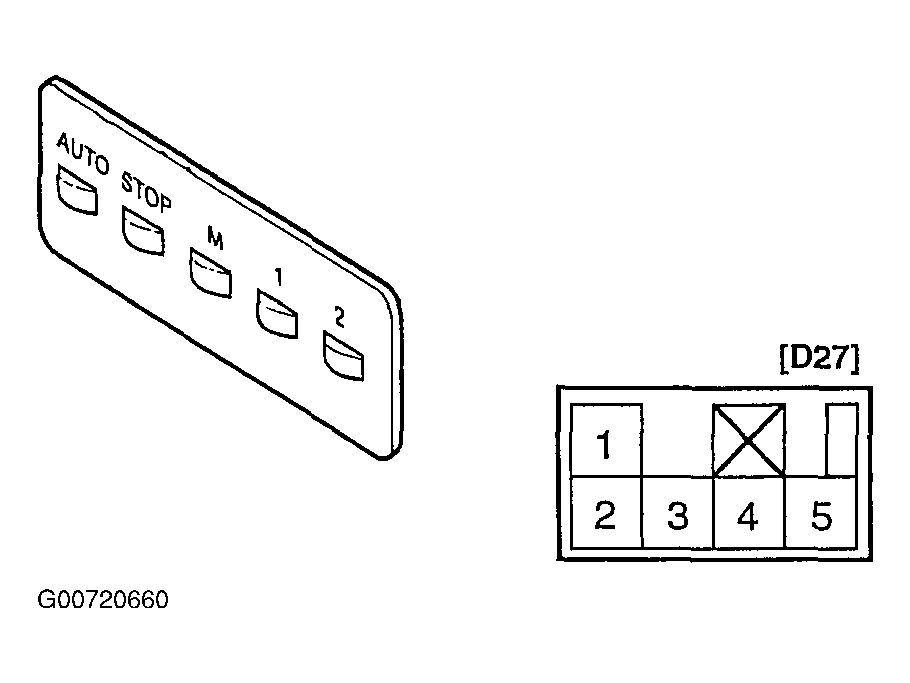

Fig 1: Identifying IMS Control Switch & Connector Terminals
Courtesy of HYUNDAI MOTOR CO.

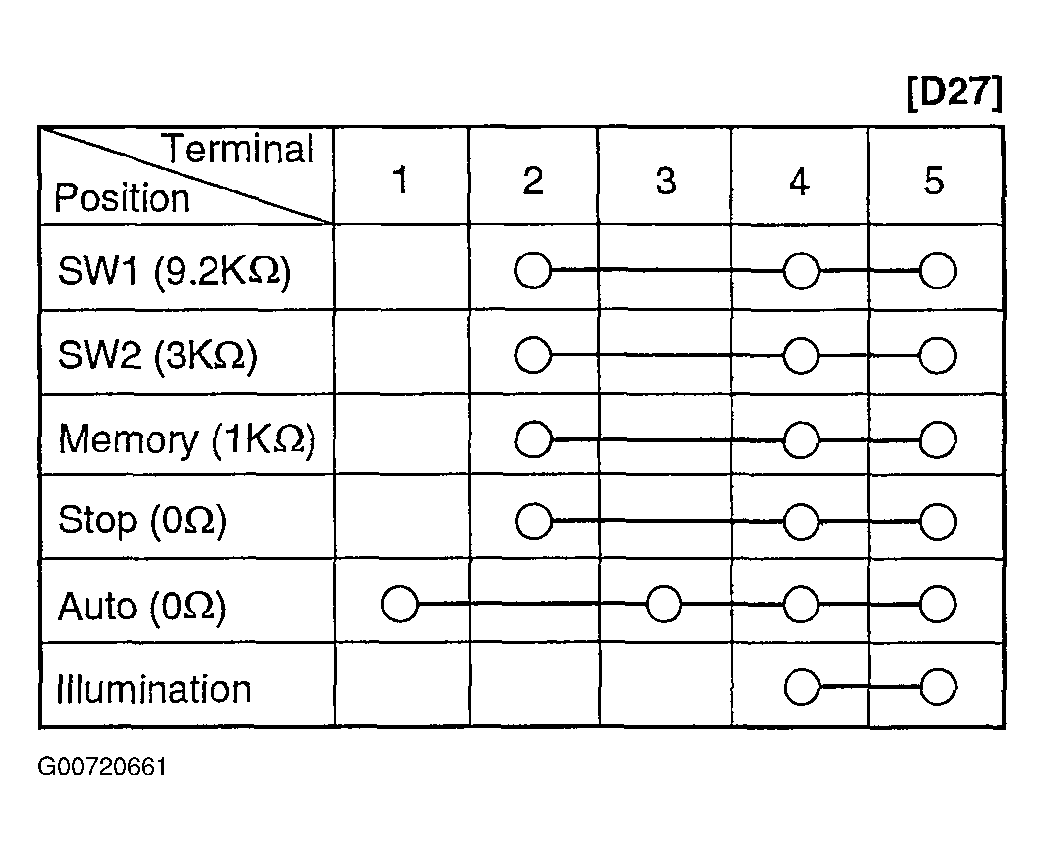

Fig 2: IMS Control Switch Terminal Resistance Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
