Pin Connection: [M110-3]

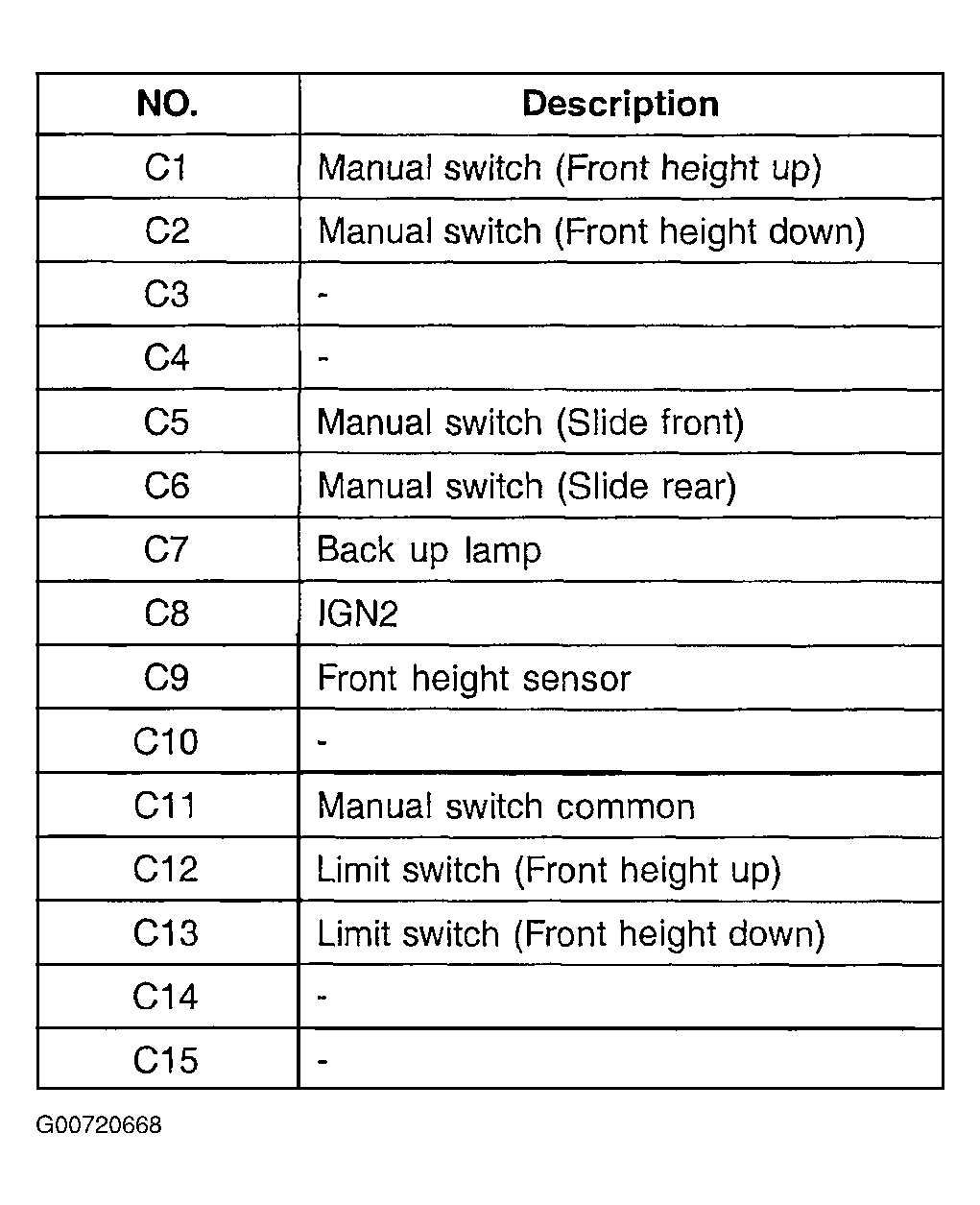

Fig 1: IMS Connector M110-3 Identification Chart (1 Of 2)

G00720668

Courtesy of HYUNDAI MOTOR CO.

Fig 2: IMS Connector M110-3 Identification Chart (2 Of 2)

G00720669

Courtesy of HYUNDAI MOTOR CO.
