Generators & Regulators: Overhaul: Reassembly

1. Before the rotor is attached to the rear bracket, insert a wire through the small hole in the rear bracket to lock the brushes into place. See Fig 1 . After the rotor has been installed, wire can be removed.
2. To complete assembly, reverse disassembly procedures. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS  .

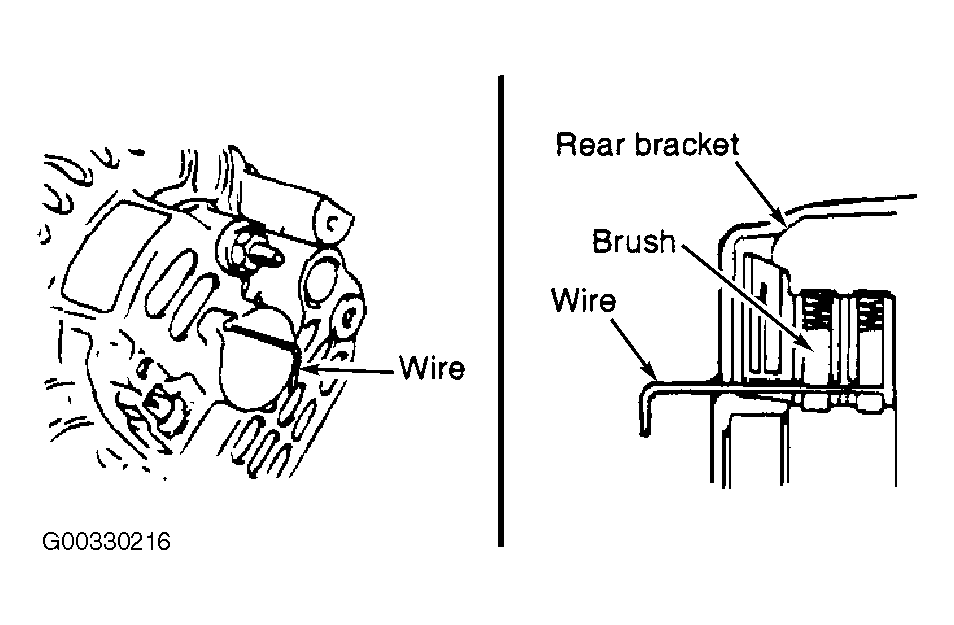

Fig 1: Installing Wire To Retain Brushes For Assembly

Courtesy of HYUNDAI MOTOR CO.
