Home >> Hyundai >> 2003 >> XG350 Base >> Repair and Diagnosis >> Suspension >> Front Suspension System >> Front Suspension System >> Strut Assembly >> Components

Strut Assembly: Components

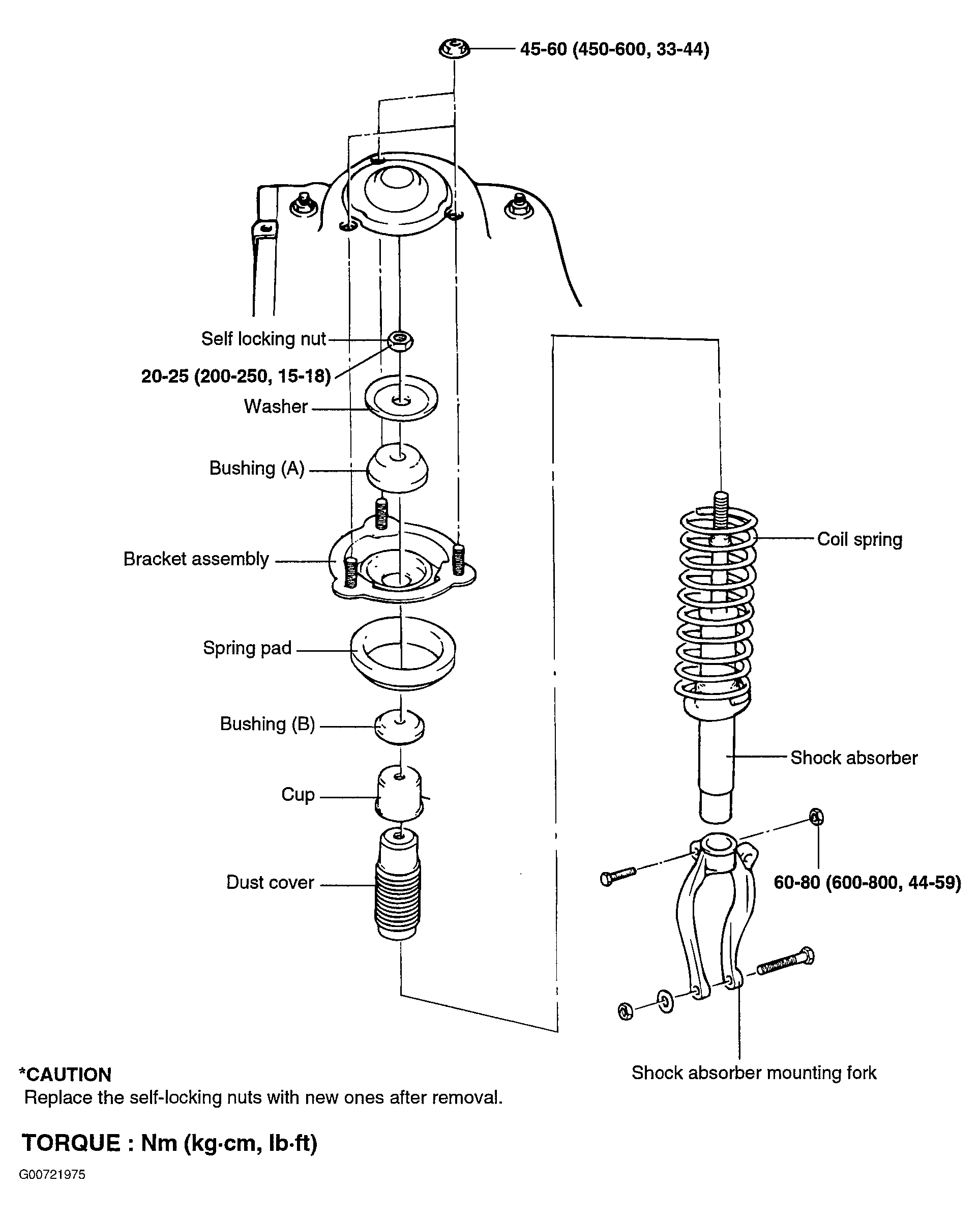

Fig 1: Identifying Strut Assembly Components

G00721975

Courtesy of HYUNDAI MOTOR CO.
