Ignition Switch: Inspection

Remove the driver's side crash pad lower panel.

Fig 1: Removing Driver's Side Lower Crash Pad
Courtesy of HYUNDAI MOTOR CO.
Disconnect the ignition switch connector and the door warning switch connector under the steering column.

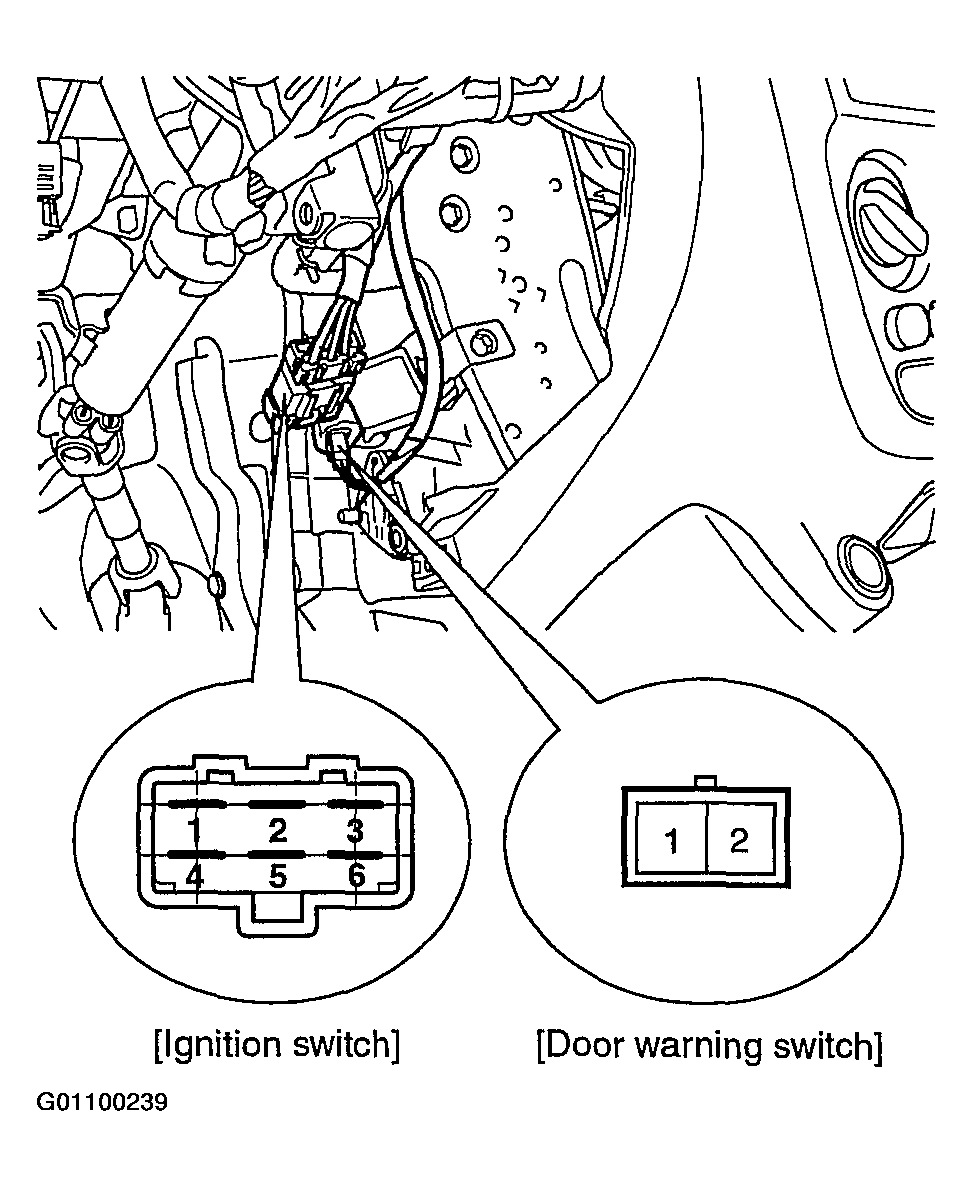

Fig 2: Identifying Ignition Switch Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Check for continuity between the terminals.
If continuity is not as specified, replace the switch.

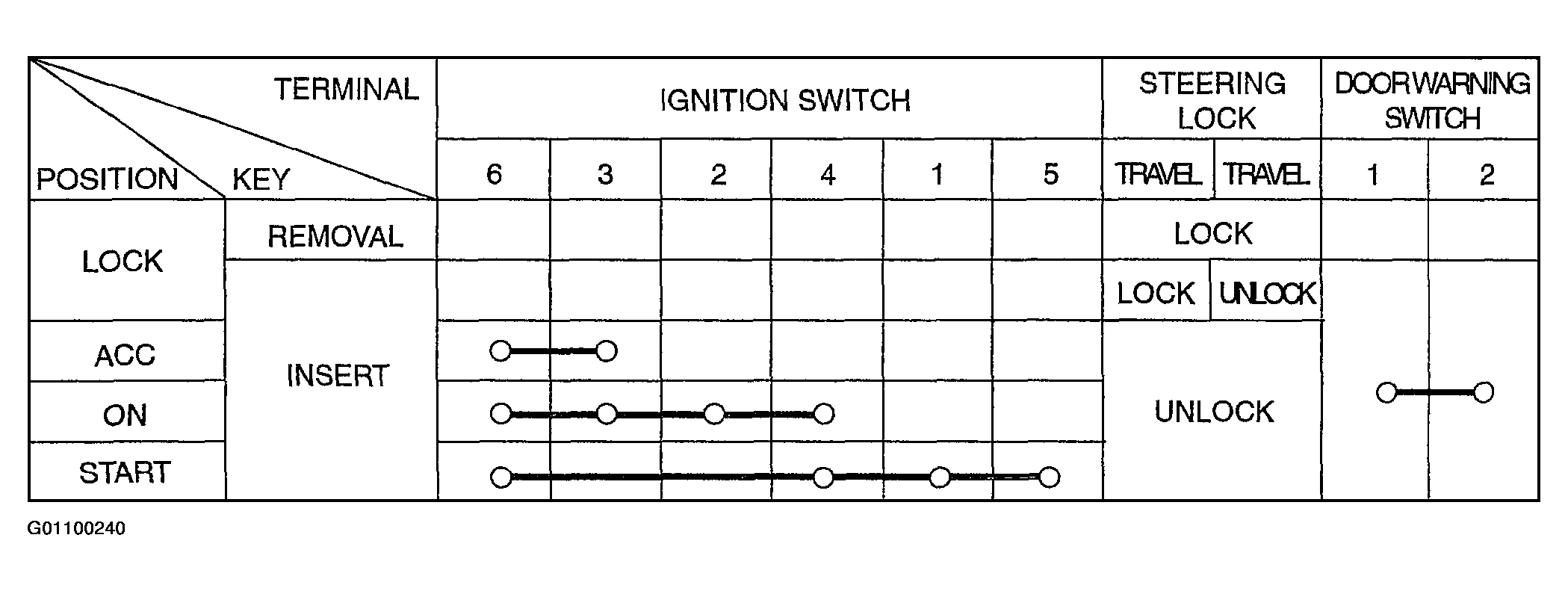

Fig 3: Ignition Switch Continuity Table
Courtesy of HYUNDAI MOTOR CO.
