Inspection At HECU Terminals

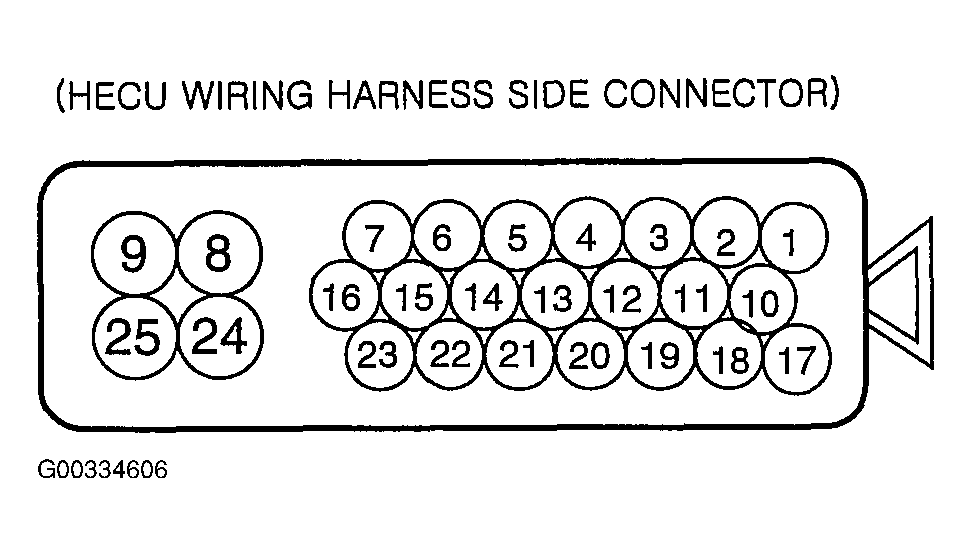

Fig 1: HECU Connector Wiring Harness Side View
Courtesy of HYUNDAI MOTOR CO.

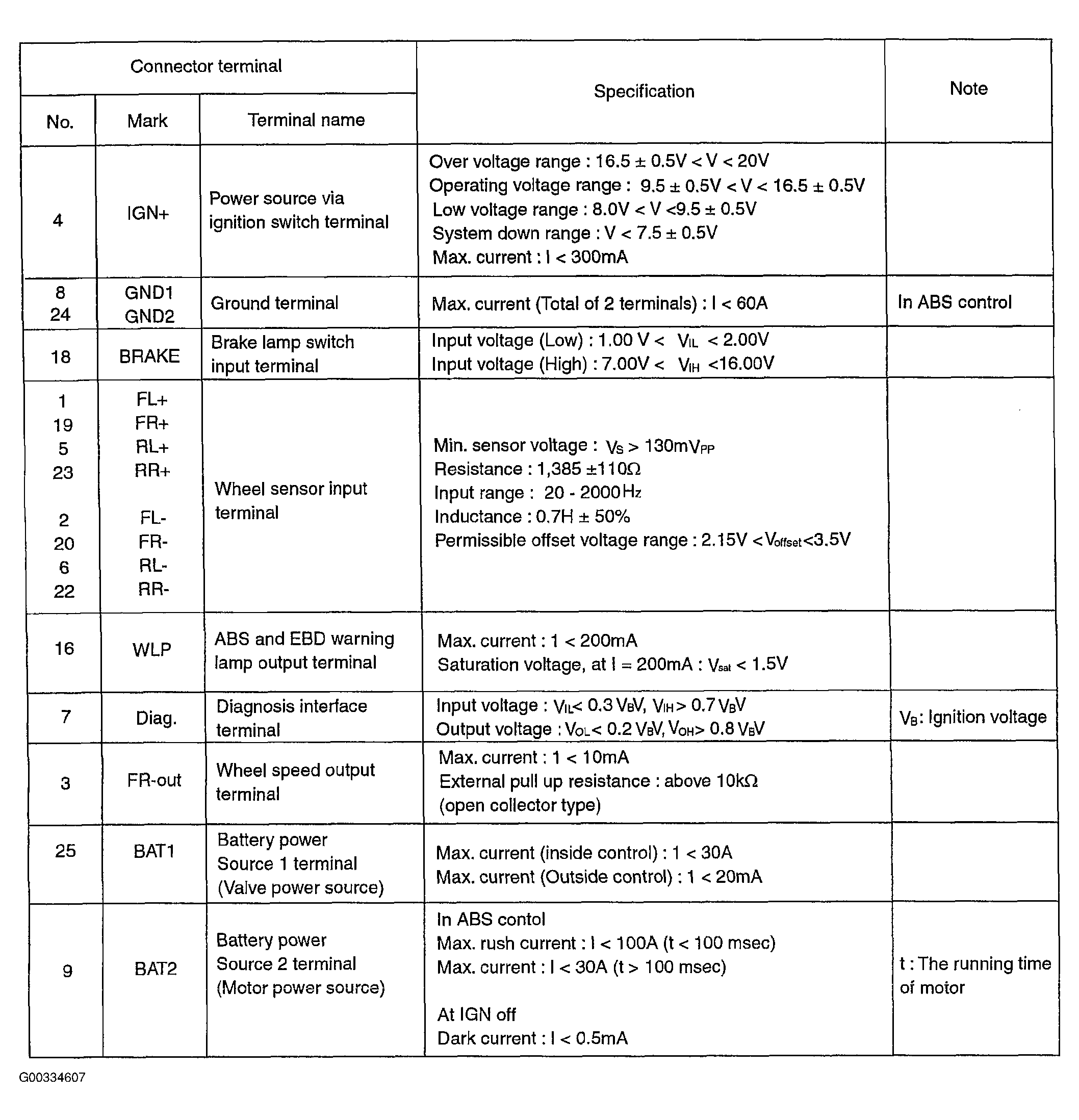

Fig 2: HECU Terminal Inspection Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
