Accelerator Pedal: Removal

  1. Remove the bushing and inner cable of the accelerator arm side.
    Fig 1: Removing Bushing And Inner Cable Of Accelerator Arm Side
    G03852153Courtesy of HYUNDAI MOTOR CO.
  2. After disconnecting the accelerator switch connector, loosen the bolts of the accelerator arm bracket and remove.

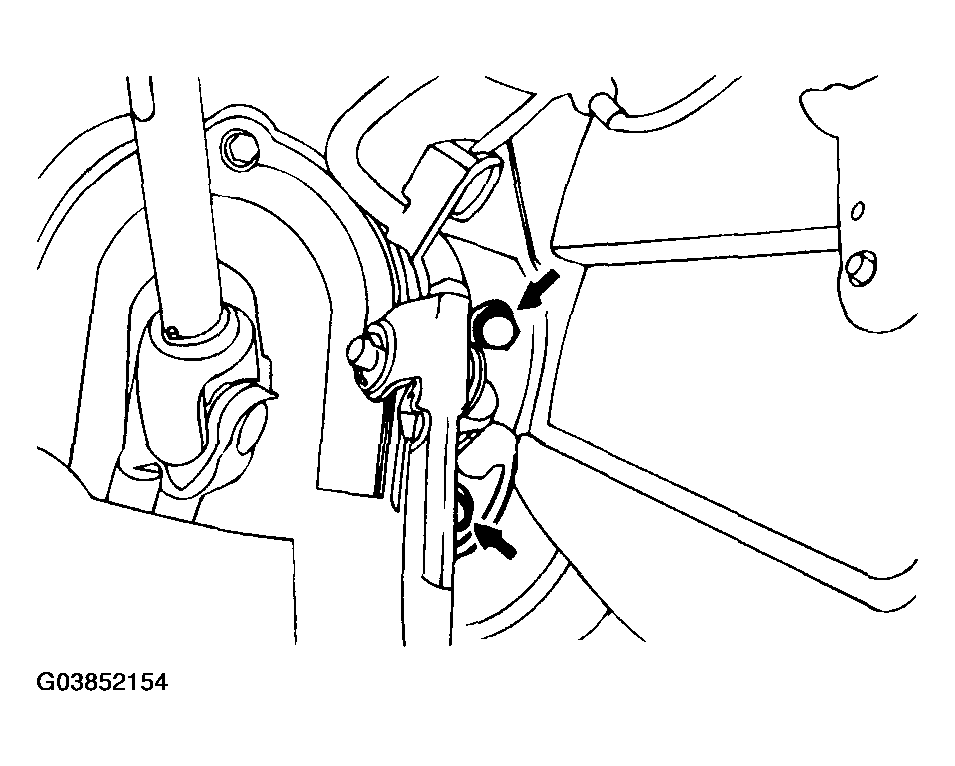

    Fig 2: Loosening Bolts Of Accelerator Arm Bracket
    G03852154Courtesy of HYUNDAI MOTOR CO.
