Harness Inspection Procedures

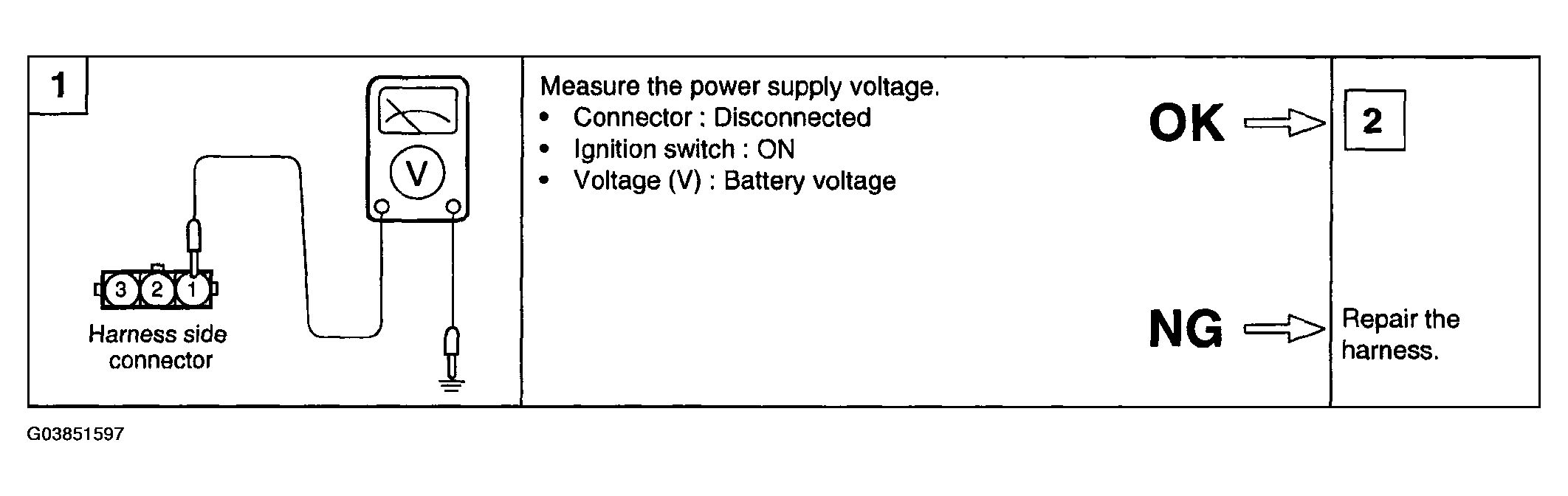

Fig 1: Camshaft Position Sensor Harness Inspection Procedures Chart (1 Of 3)
G03851597Courtesy of HYUNDAI MOTOR CO.

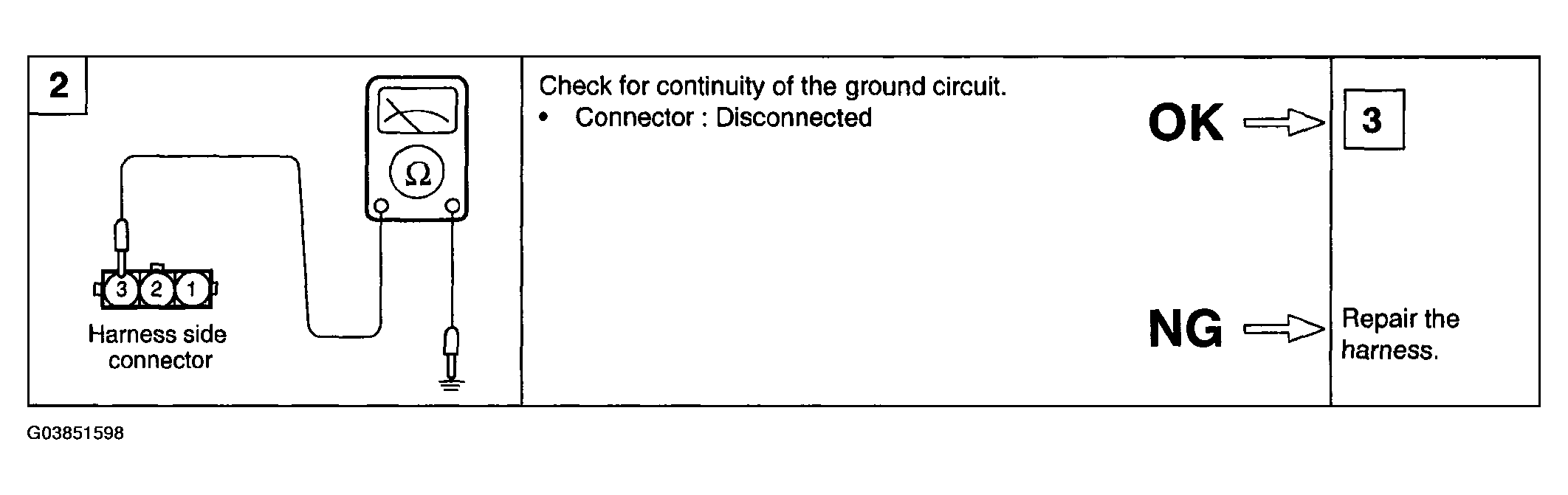

Fig 2: Camshaft Position Sensor Harness Inspection Procedures Chart (2 Of 3)
G03851598Courtesy of HYUNDAI MOTOR CO.

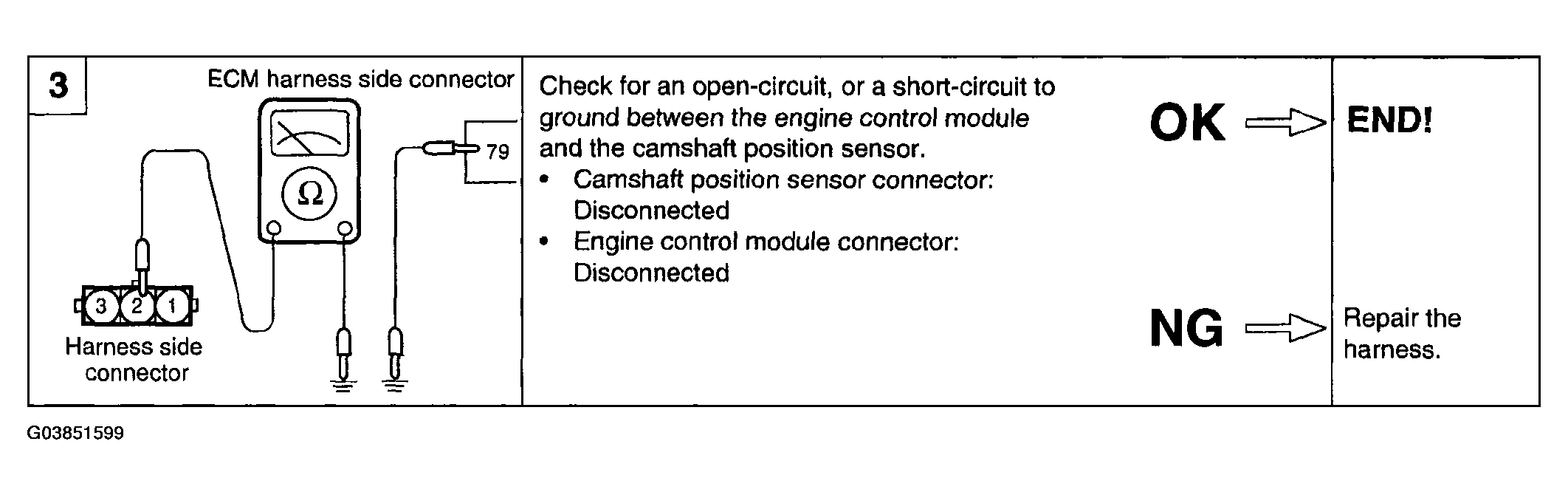

Fig 3: Camshaft Position Sensor Harness Inspection Procedures Chart (3 Of 3)
G03851599Courtesy of HYUNDAI MOTOR CO.
