Home >> Hyundai >> 2004 >> Accent Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System >> Gasoline Engine Control System >> Engine Coolant Temperature Sensor (ECTS) >> Harness Inspection Procedures

Harness Inspection Procedures

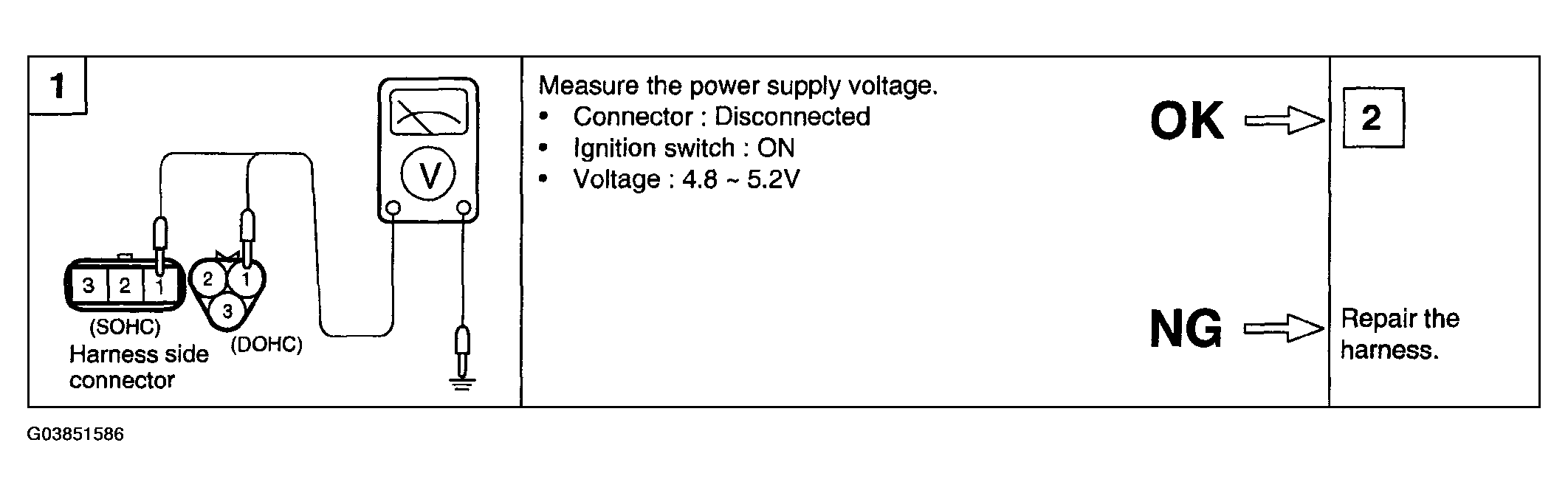

Fig 1: Engine Coolant Temperature Sensor Harness Inspection Procedures Chart (1 Of 2)
G03851586Courtesy of HYUNDAI MOTOR CO.

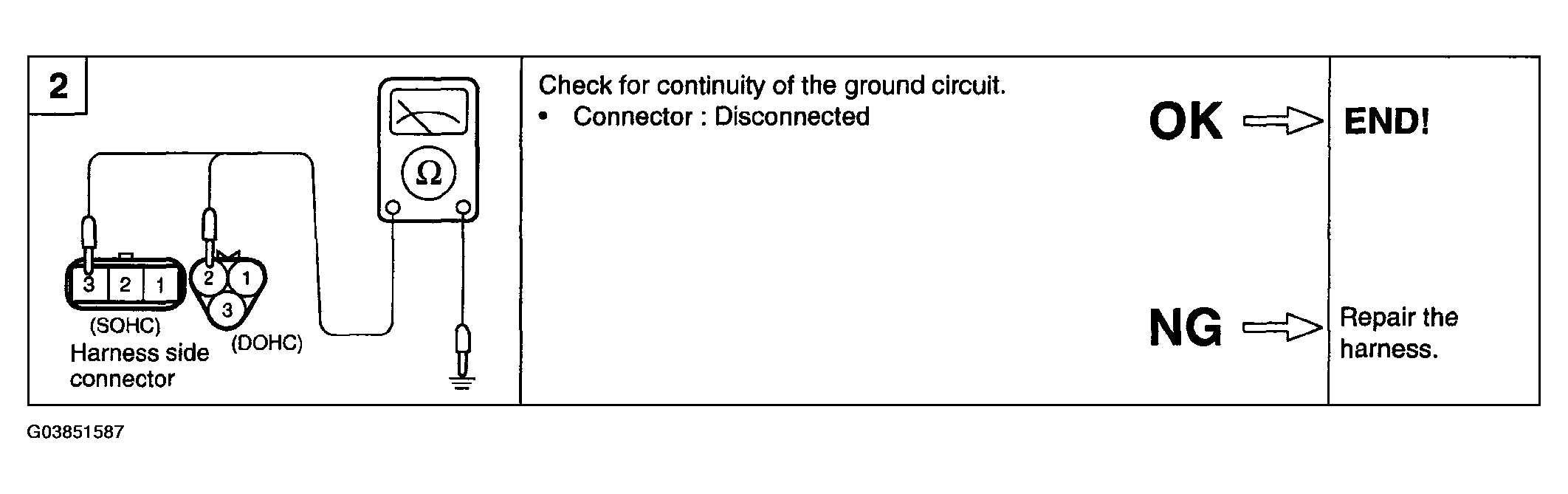

Fig 2: Engine Coolant Temperature Sensor Harness Inspection Procedures Chart (2 Of 2)
G03851587Courtesy of HYUNDAI MOTOR CO.
