Harness Inspection Procedures

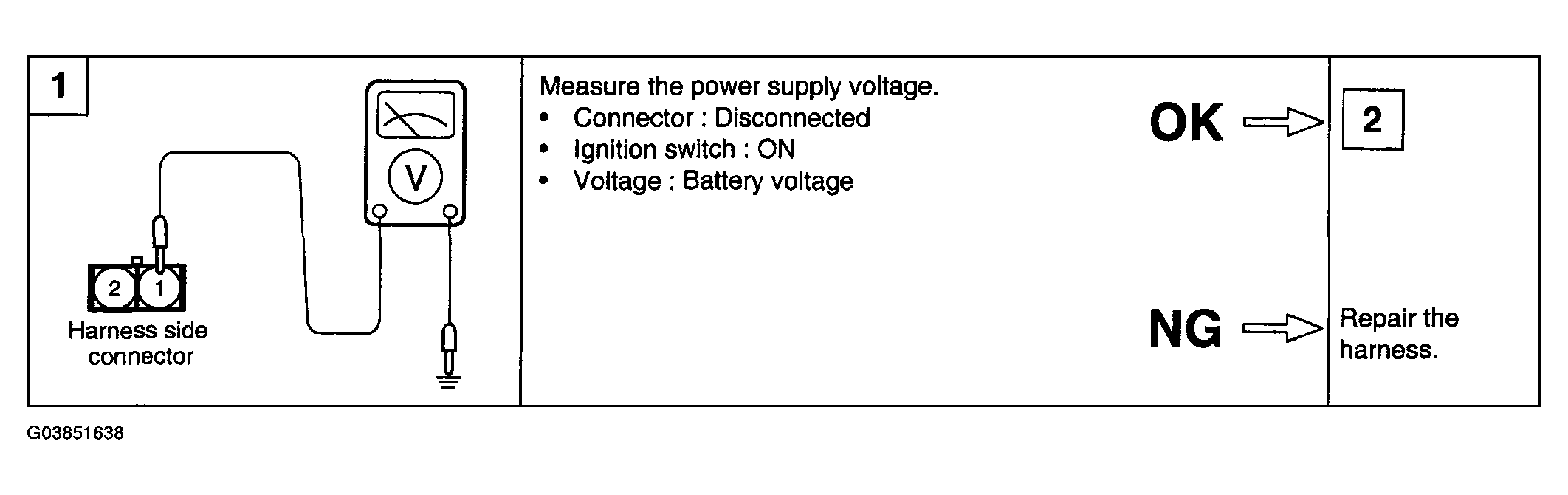

Fig 1: Purge Control Solenoid Valve Harness Inspection Procedures Chart (1 Of 2)
G03851638Courtesy of HYUNDAI MOTOR CO.

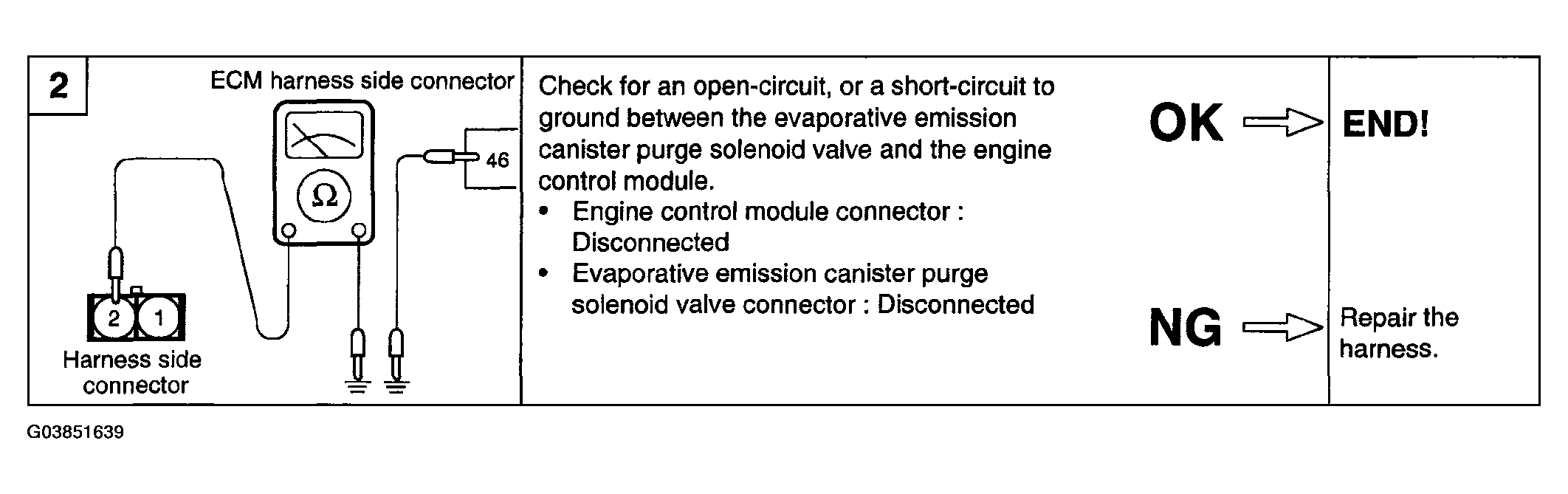

Fig 2: Purge Control Solenoid Valve Harness Inspection Procedures Chart (2 Of 2)
G03851639Courtesy of HYUNDAI MOTOR CO.
