Fuel Sender Replacement

  1. Remove the fuel tank cap to lower the fuel tank's internal pressure.
  2. Remove the fuel sender mounting screws, then remove the fuel sender from the fuel tank.

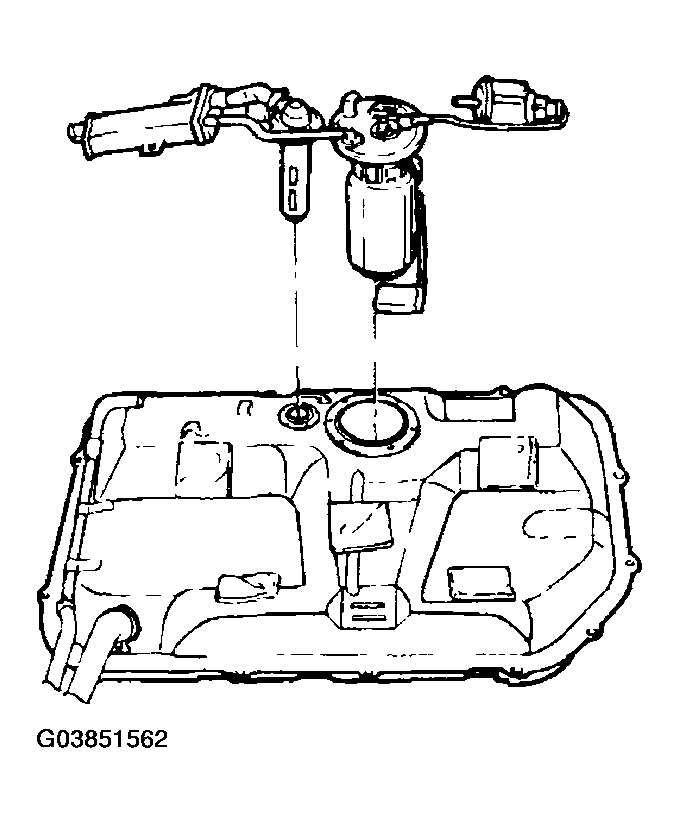

    Fig 1: Removing Fuel Sender From Fuel Tank
    G03851562Courtesy of HYUNDAI MOTOR CO.
