Emission Control System: General: Components

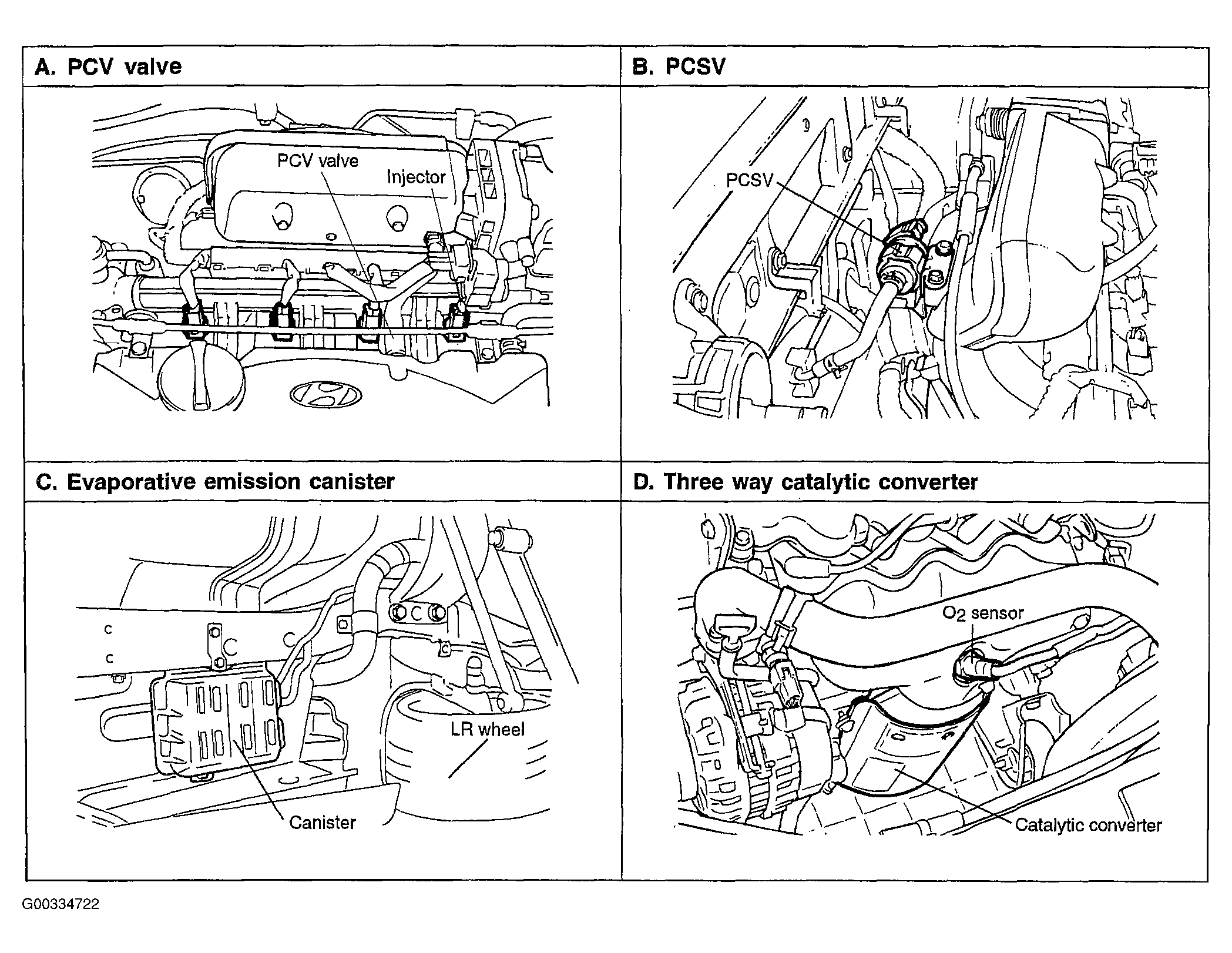

Fig 1: Emission Component Locations (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

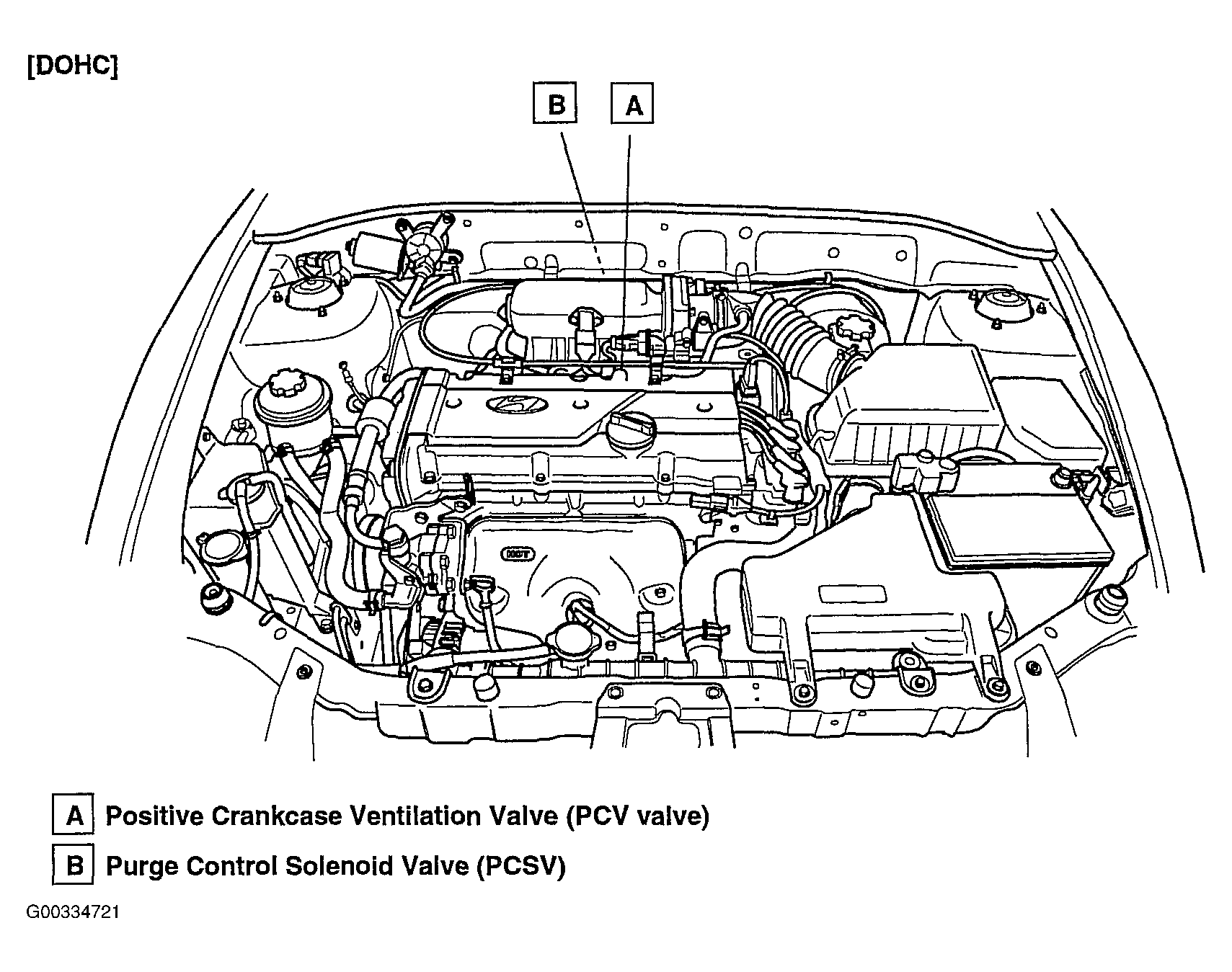

Fig 2: Emission Component Locations (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
