Home >> Hyundai >> 2004 >> Accent Base >> Repair and Diagnosis >> Steering >> Steering Column >> Steering System >> Special Tools

Special Tools

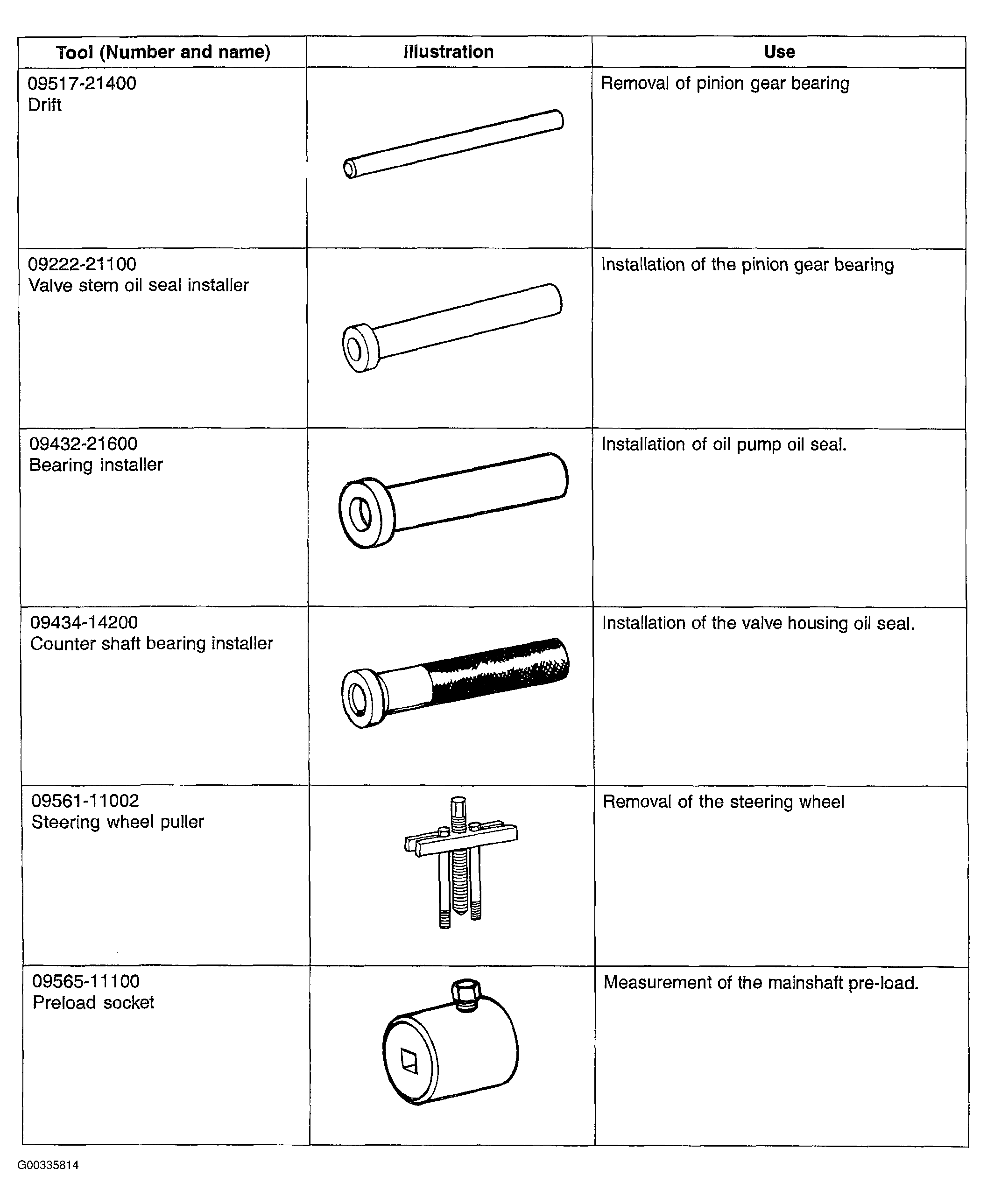

Fig 1: Special Tools (1 Of 3)

G00335814

Courtesy of HYUNDAI MOTOR CO.

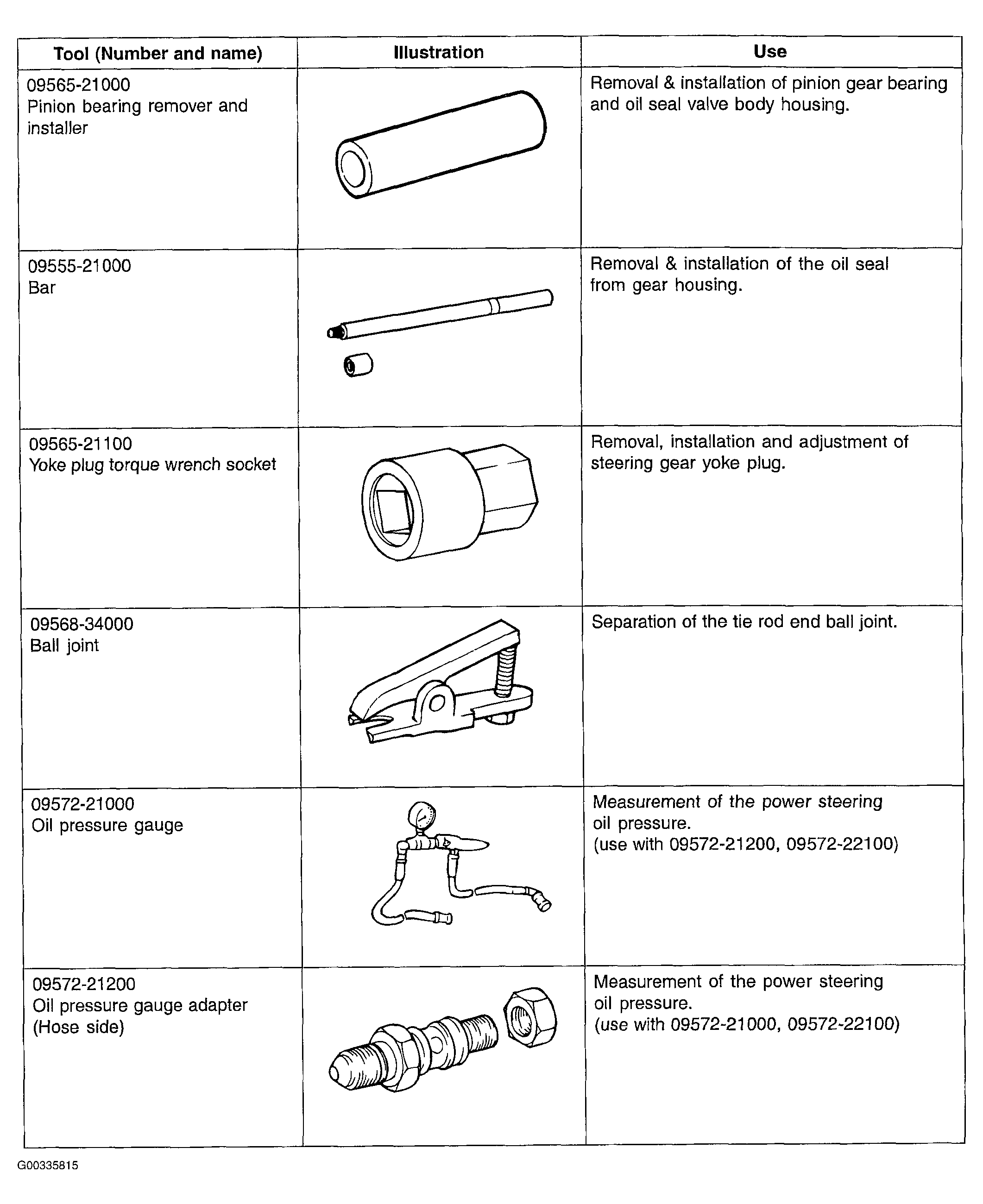

Fig 2: Special Tools (2 Of 3)

G00335815

Courtesy of HYUNDAI MOTOR CO.

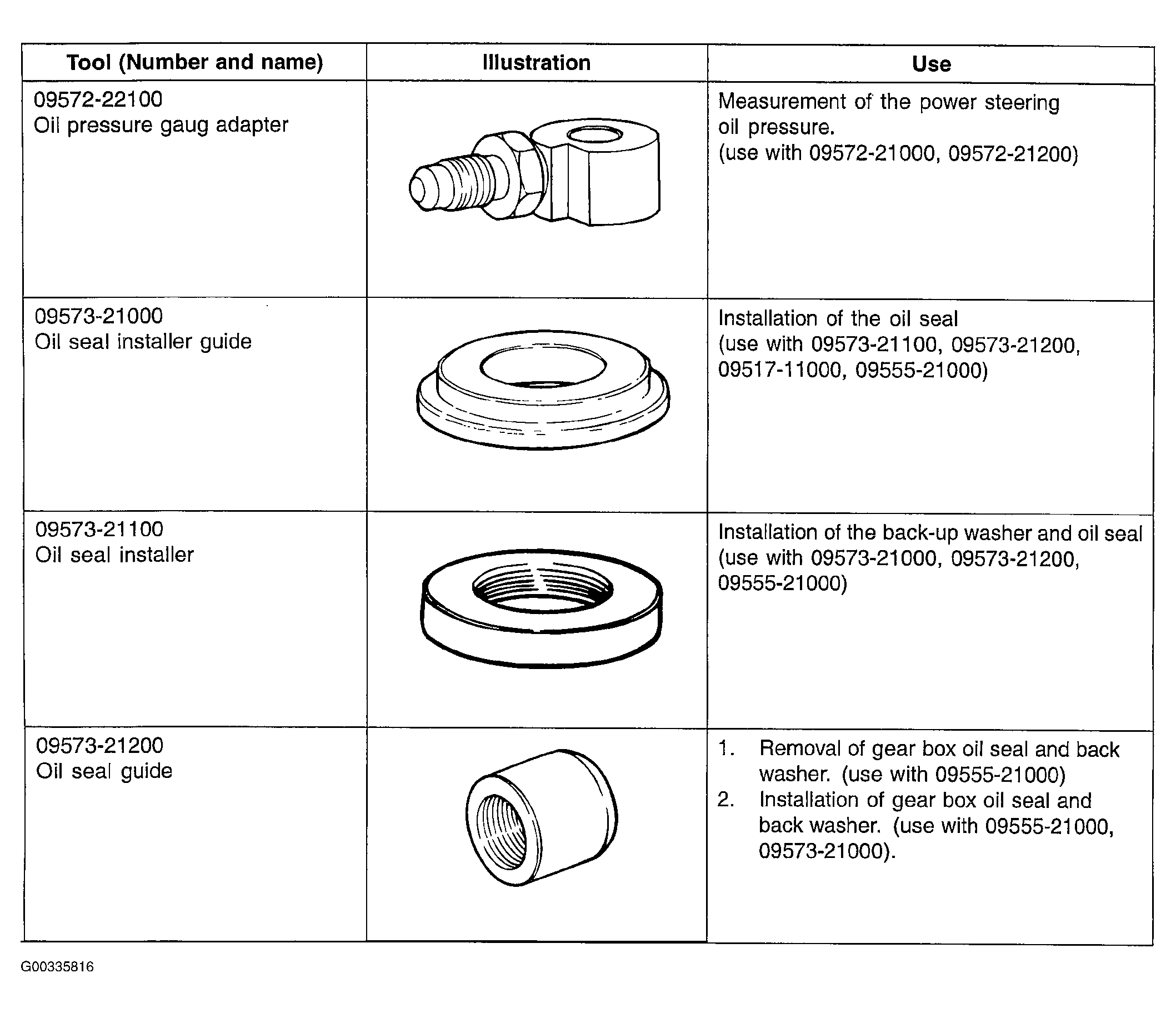

Fig 3: Special Tools (3 Of 3)

G00335816

Courtesy of HYUNDAI MOTOR CO.
