Home >> Hyundai >> 2004 >> Accent Base >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle System >> Shift Lever >> Components

Shift Lever: Components

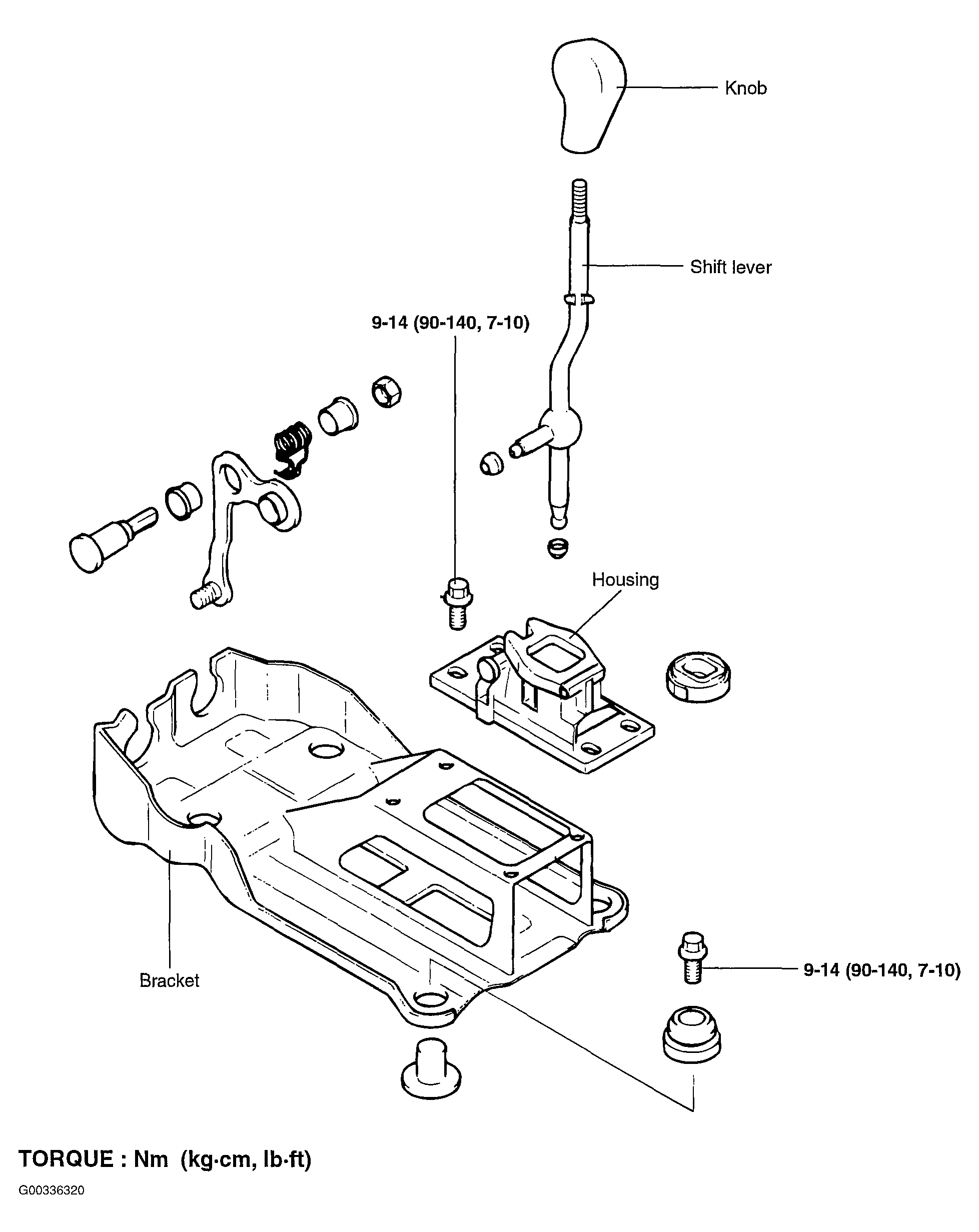

Fig 1: Identifying Shift Lever Components

G00336320

Courtesy of HYUNDAI MOTOR CO.
