Adjustment Of Control Cable

  1. Eliminate slack from the control cable with the adjusting flange nut and check that the select lever operates smoothly.
  2. Driving the car, check that the transaxle is set in the proper range when the select lever is shifted to each position.

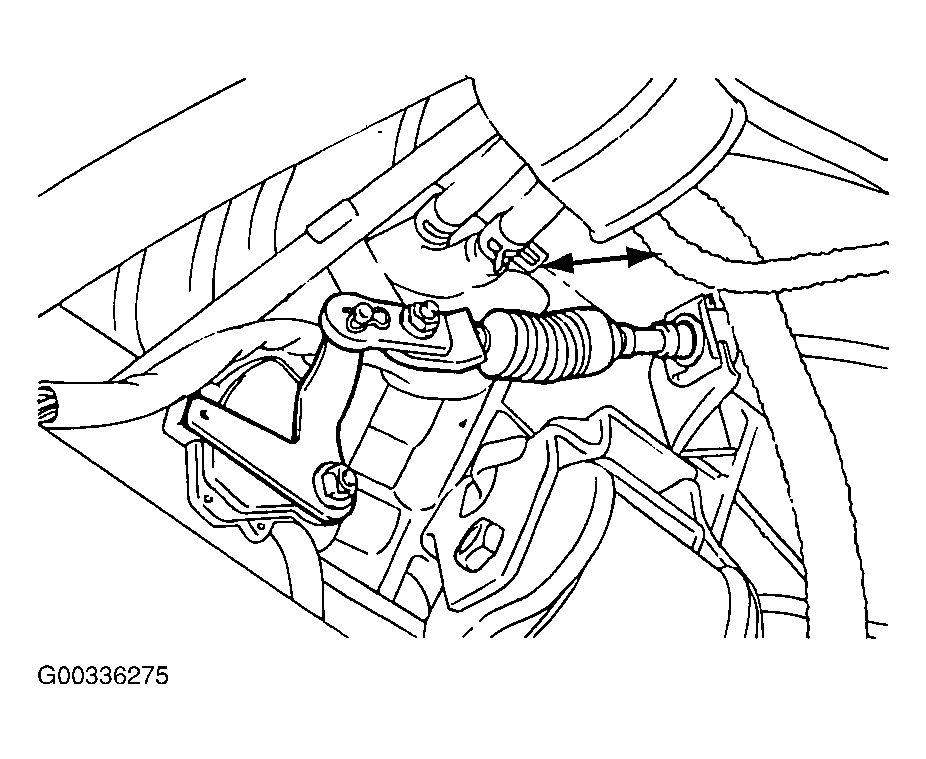

    Fig 1: Checking Proper Range When Select Lever Is Shifted To Each Position
    G00336275Courtesy of HYUNDAI MOTOR CO.
