Automatic Transaxle Shift Control: Inspection

  1. Check the control cable for function and damage.
  2. Check the bushing for wear or damage.
  3. Check the spring for damage or deterioration.
  4. Check the overdrive switch for continuity.

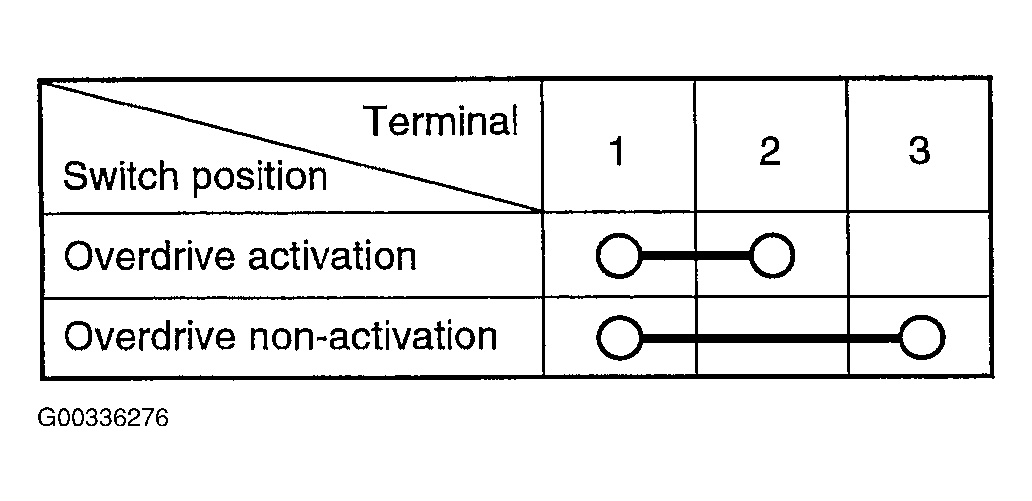

    Fig 1: Checking Overdrive Switch For Continuity
    G00336276Courtesy of HYUNDAI MOTOR CO.
