Automatic Transaxle Shift Control: Removal

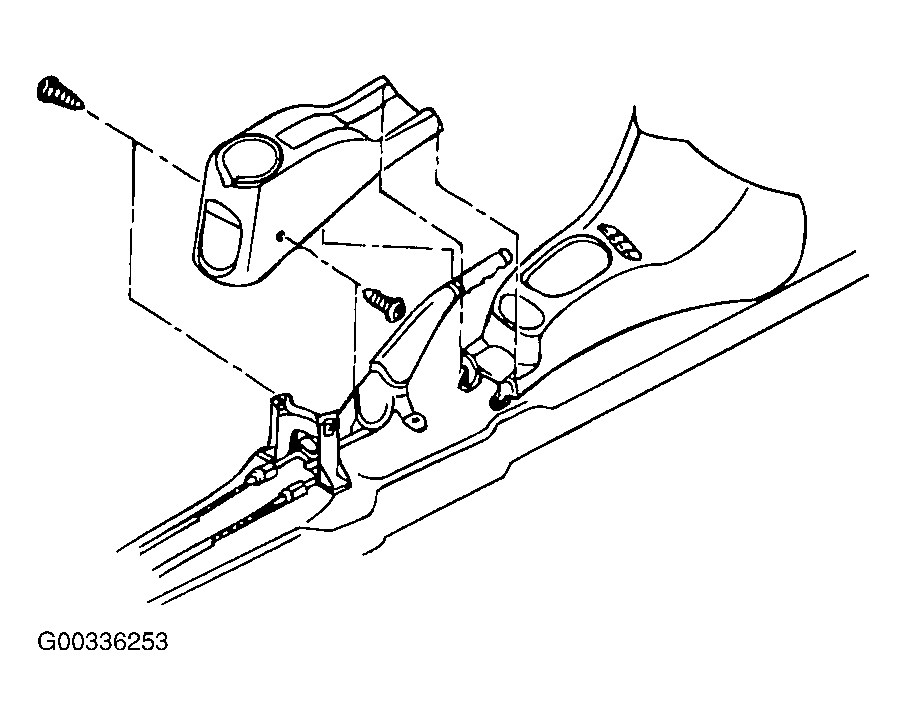

1. Remove the rear console.
   Fig 1: Removing Rear Console

   Courtesy of HYUNDAI MOTOR CO.

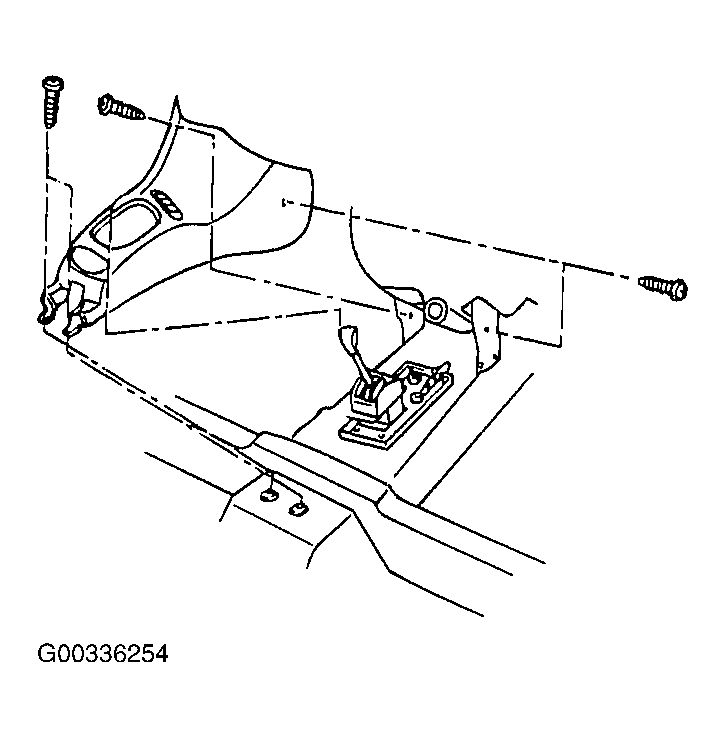

2. Remove the front console.
   Fig 2: Removing Front Console

   Courtesy of HYUNDAI MOTOR CO.
3. Remove the knob installation screws.

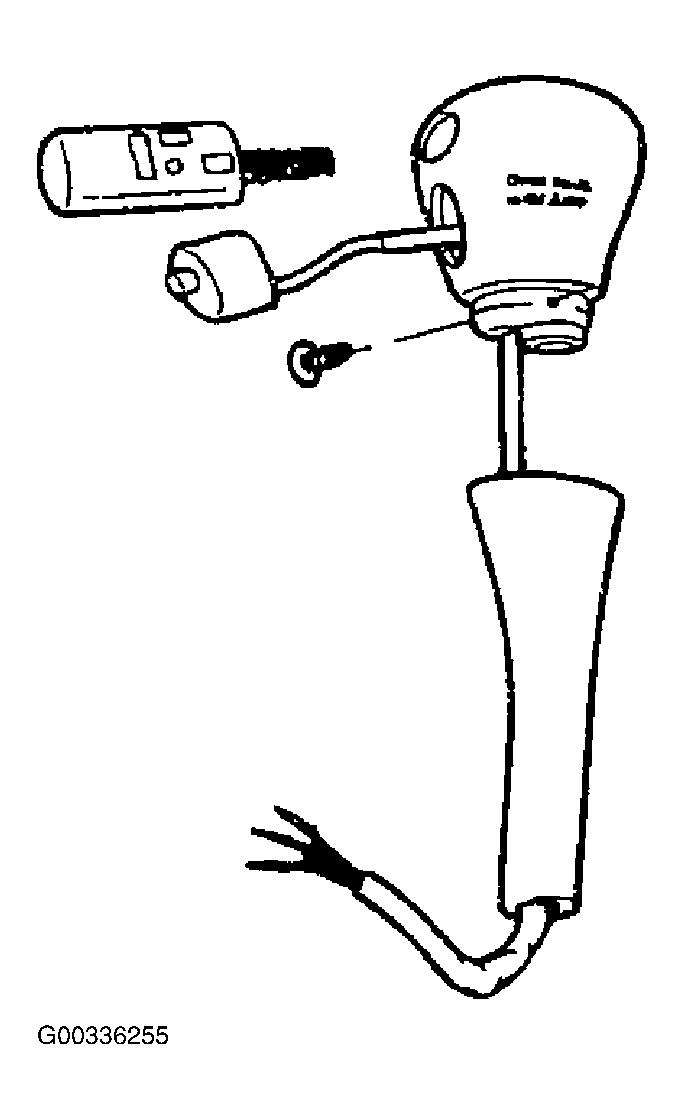

4. Disconnect the overdrive switch connector, remove the 3 connector pins from connector with small driver, and then remove selector knob assembly.
   Fig 3: Disconnecting Overdrive Switch Connector & Selector Knob Assembly

   Courtesy of HYUNDAI MOTOR CO.

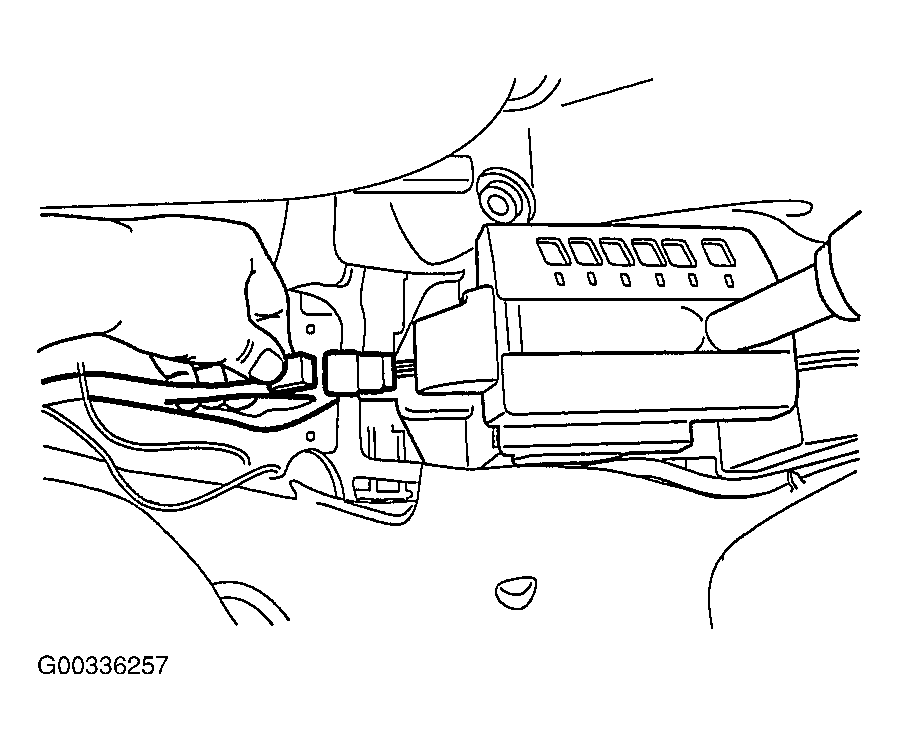

5. Disconnect the position indicator light connector.
   Fig 4: Disconnecting Position Indicator Light Connector

   Courtesy of HYUNDAI MOTOR CO.

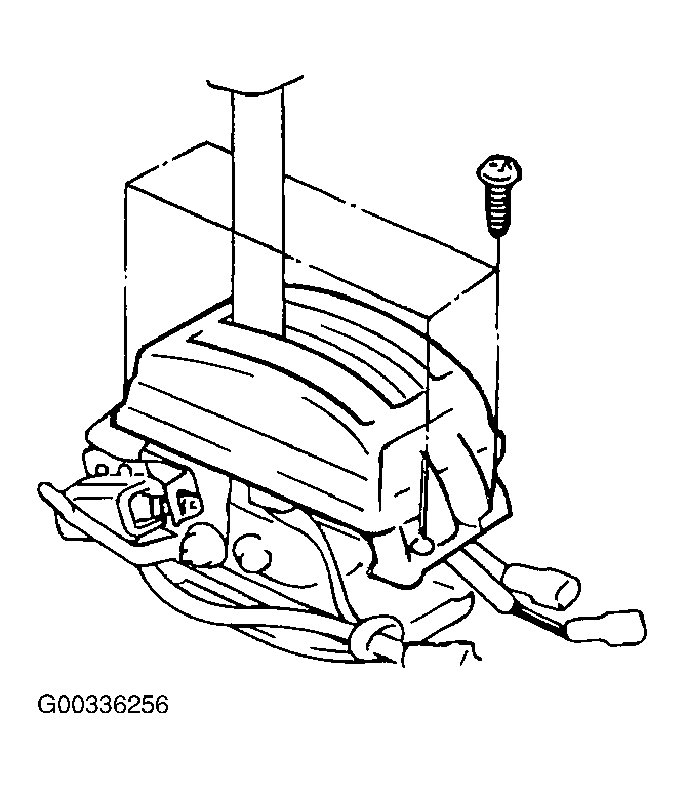

6. Remove the shift lever indicator assembly.
   Fig 5: Removing Shift Lever Indicator Assembly

   Courtesy of HYUNDAI MOTOR CO.

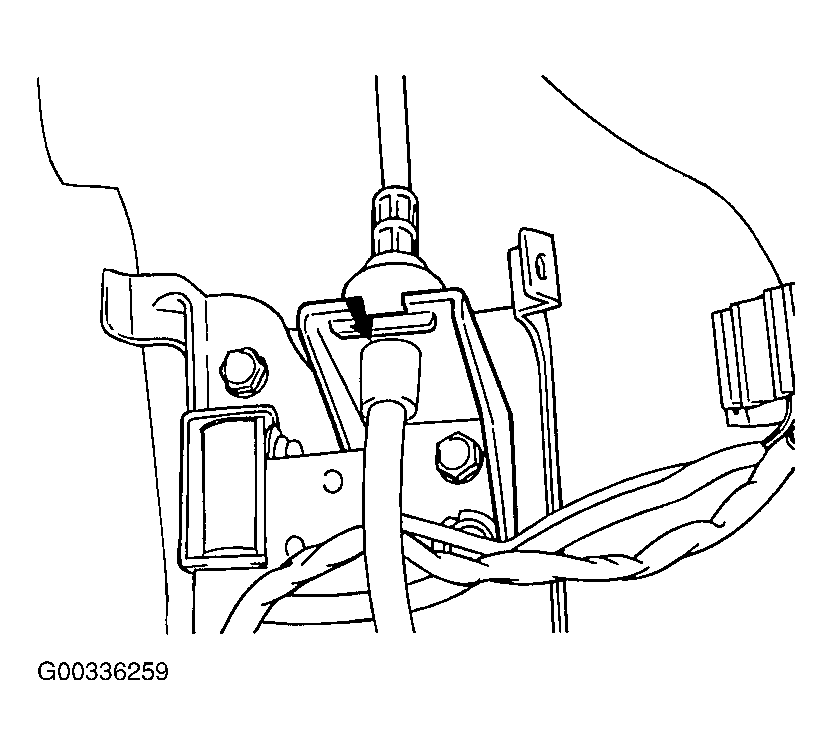

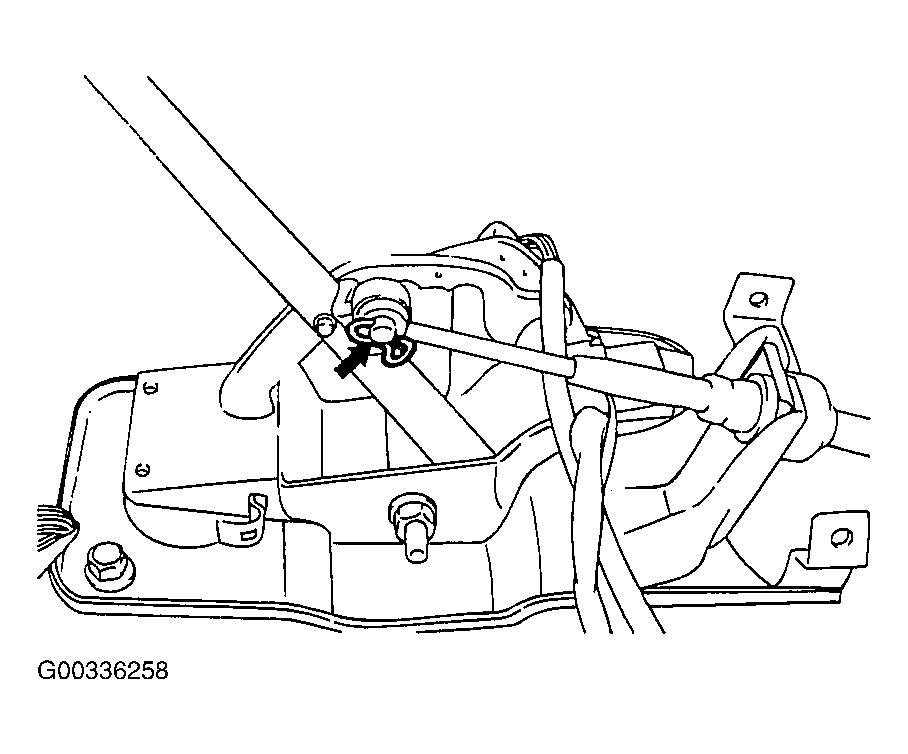

7. Remove the cotter pin.
   Fig 6: Removing Cotter Pin

   Courtesy of HYUNDAI MOTOR CO.
8. Remove the clip from the shift lever side.
   Fig 7: Removing Clip From Shift Lever Side

   Courtesy of HYUNDAI MOTOR CO.

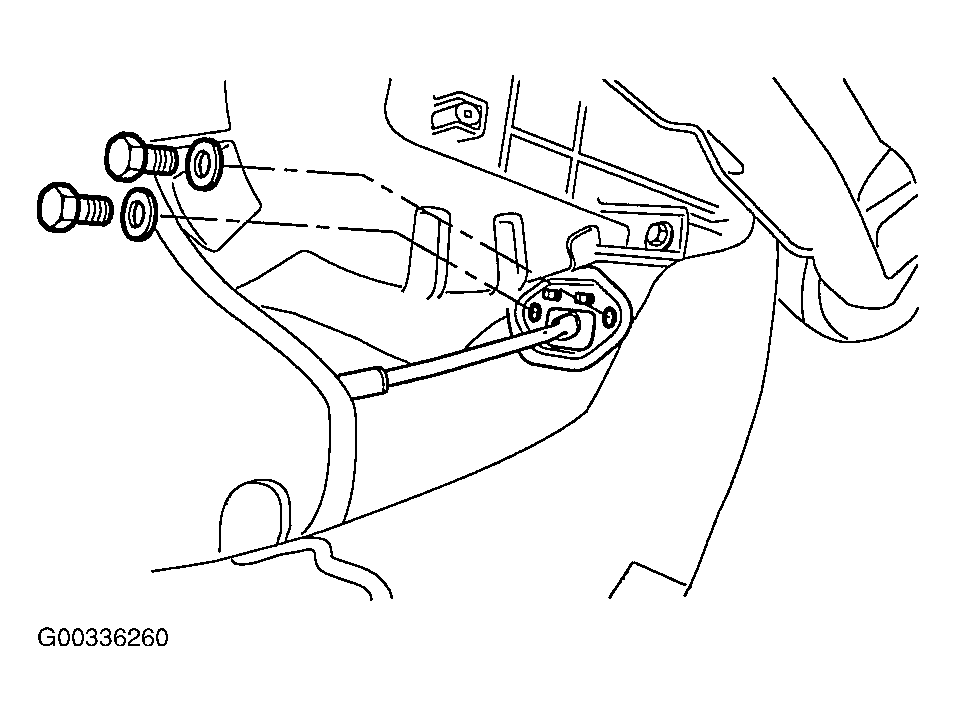

9. Remove the bolt-washer assembly located on dash panel.
   Fig 8: Removing Bolt-Washer Assembly Located On Dash Panel

   Courtesy of HYUNDAI MOTOR CO.
10. Remove the shift lever assembly.
11. Remove the transaxle control cable assembly.

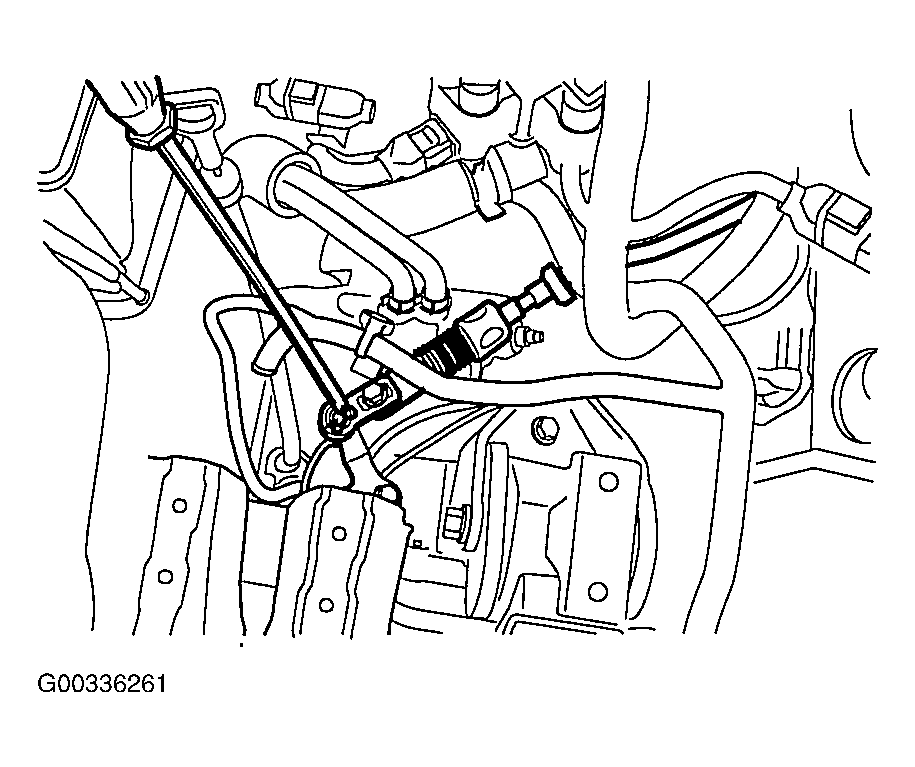

Fig 9: Removing Transaxle Control Cable Assembly (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

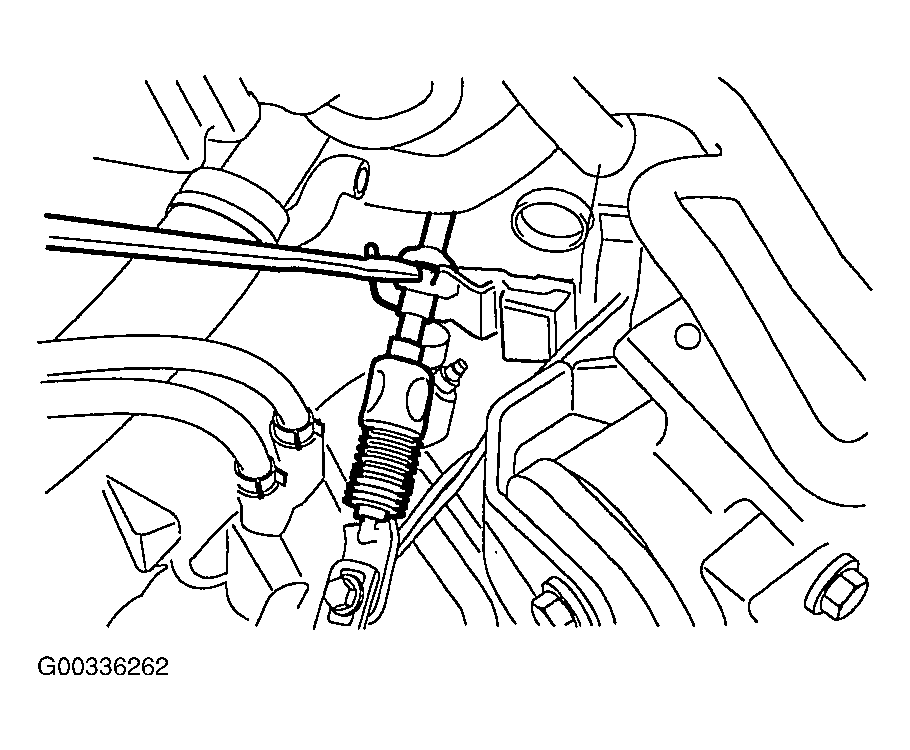

Fig 10: Removing Transaxle Control Cable Assembly (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
