Inspection Of Electronic Control System Components: Notes

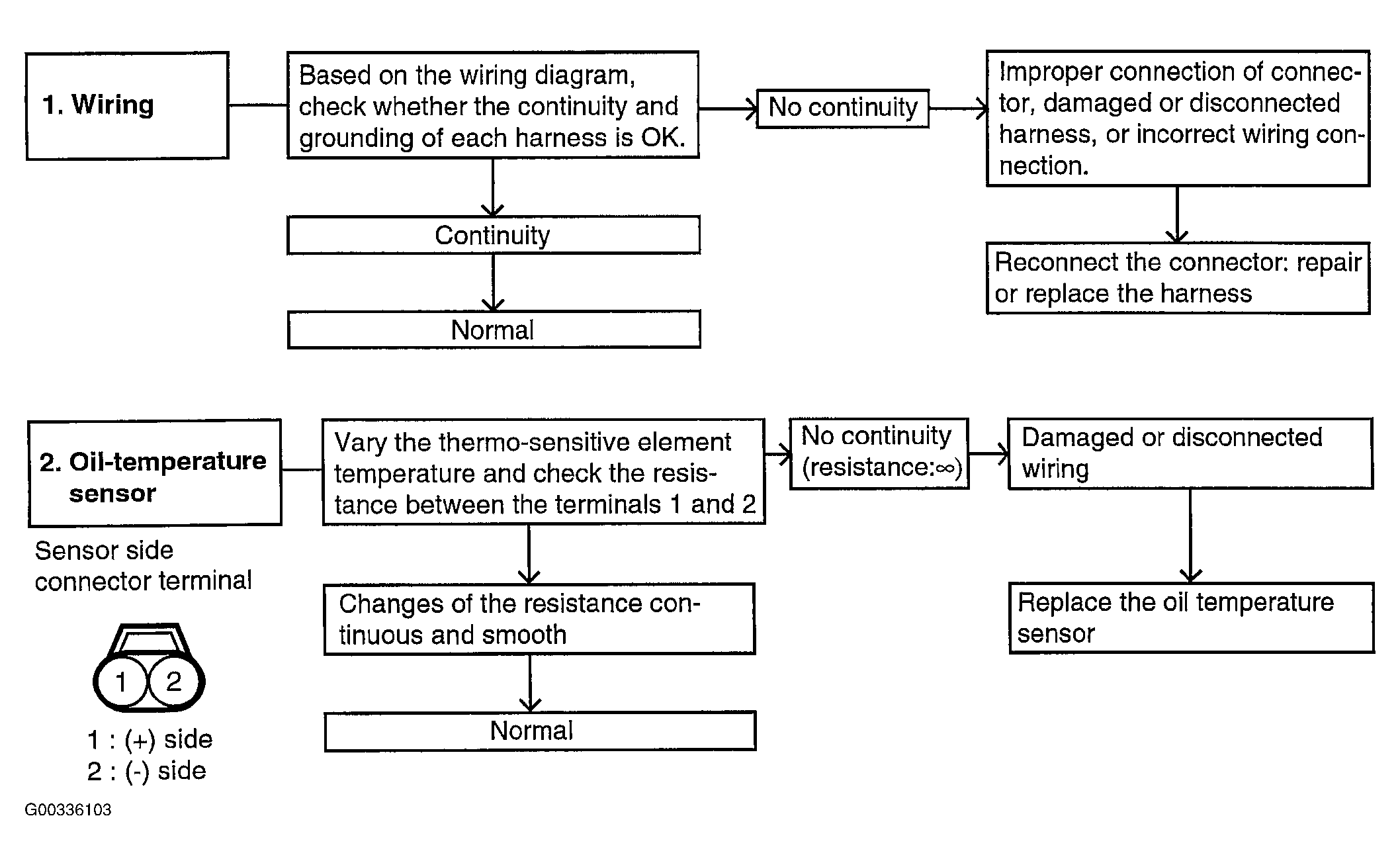

Fig 1: Inspecting Electronic Control System Components (1 Of 7)

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Inspecting Electronic Control System Components (2 Of 7)

Courtesy of HYUNDAI MOTOR CO.

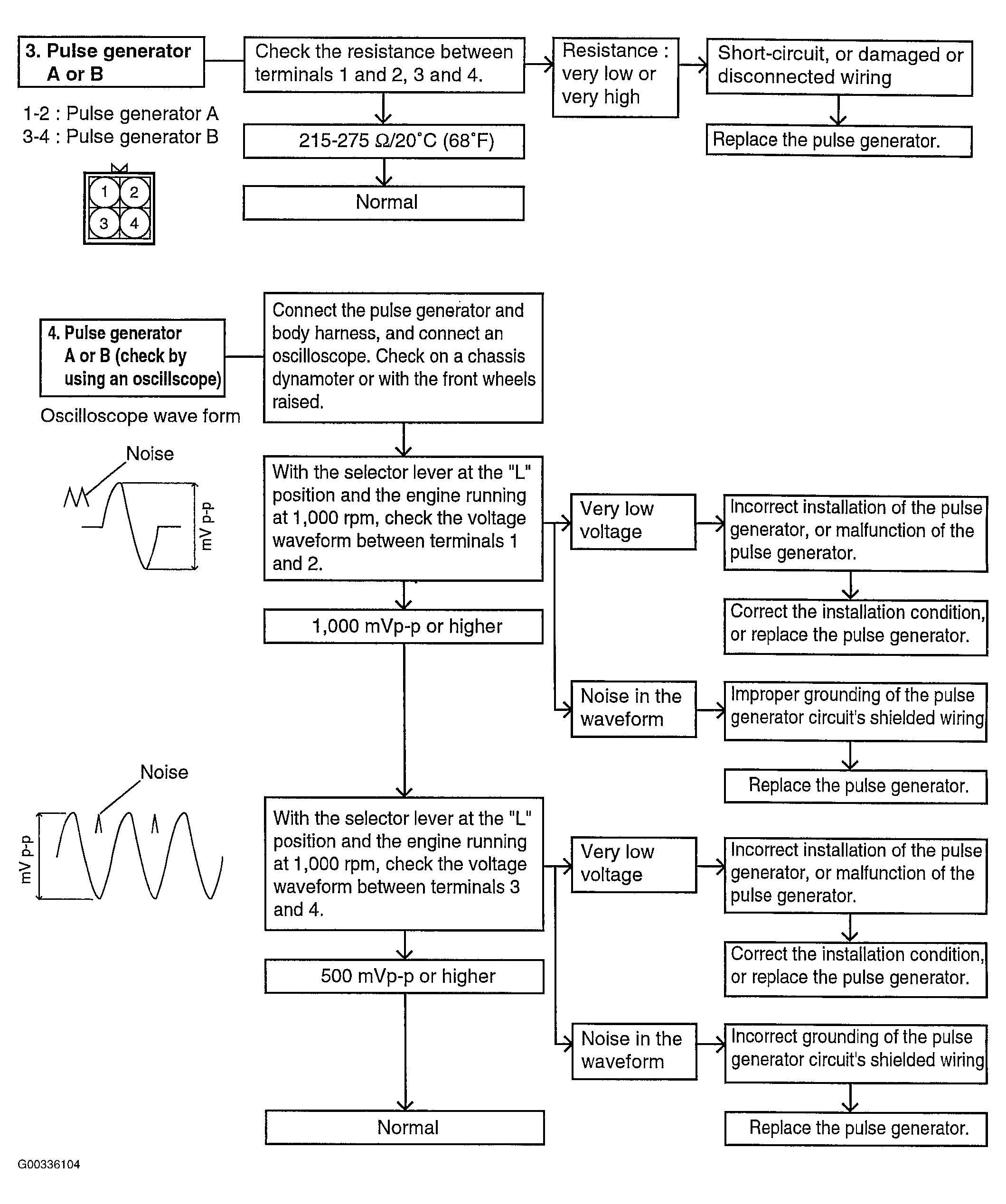

Fig 3: Inspecting Electronic Control System Components (3 Of 7)

Courtesy of HYUNDAI MOTOR CO.

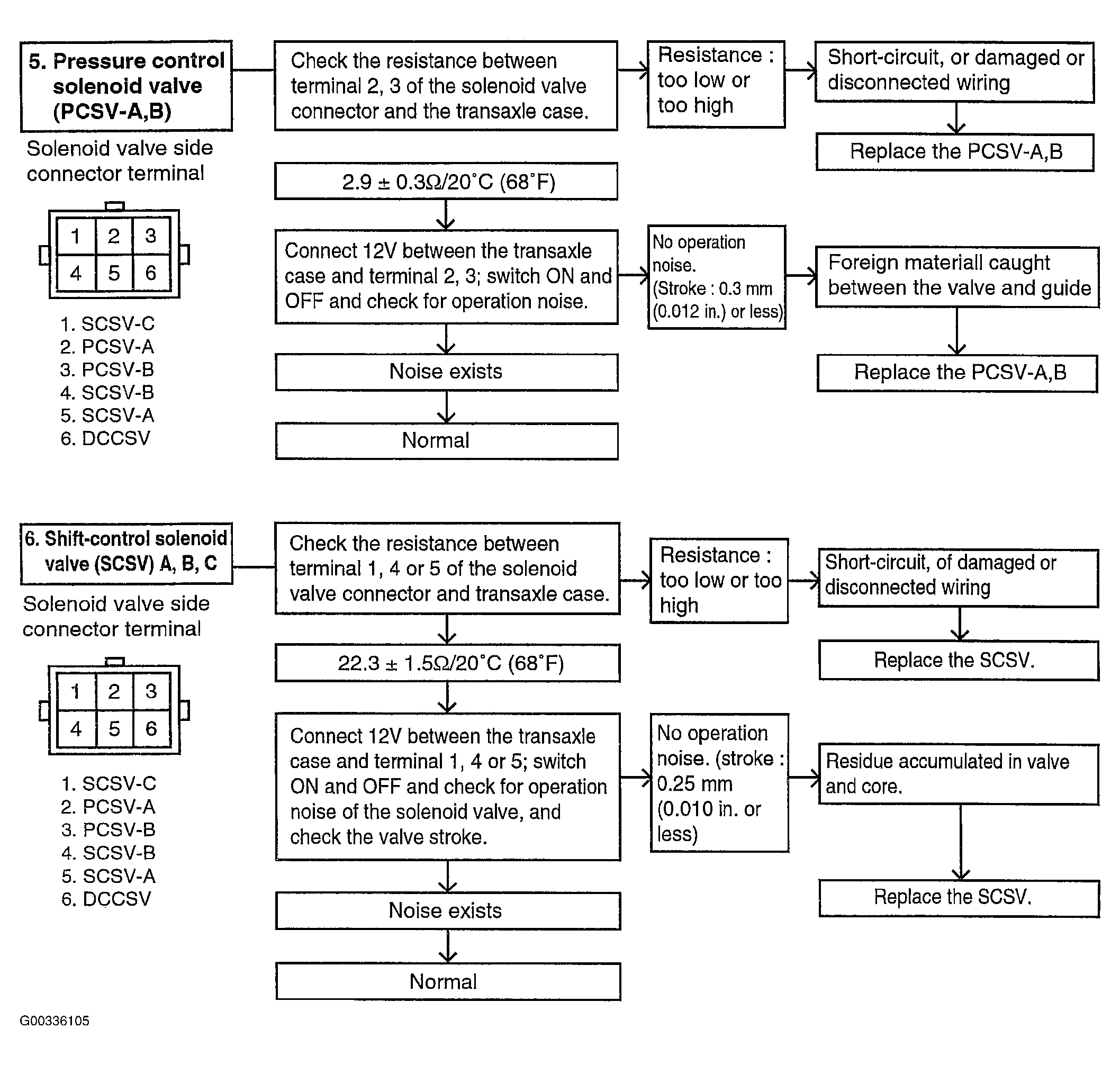

Fig 4: Inspecting Electronic Control System Components (4 Of 7)

Courtesy of HYUNDAI MOTOR CO.

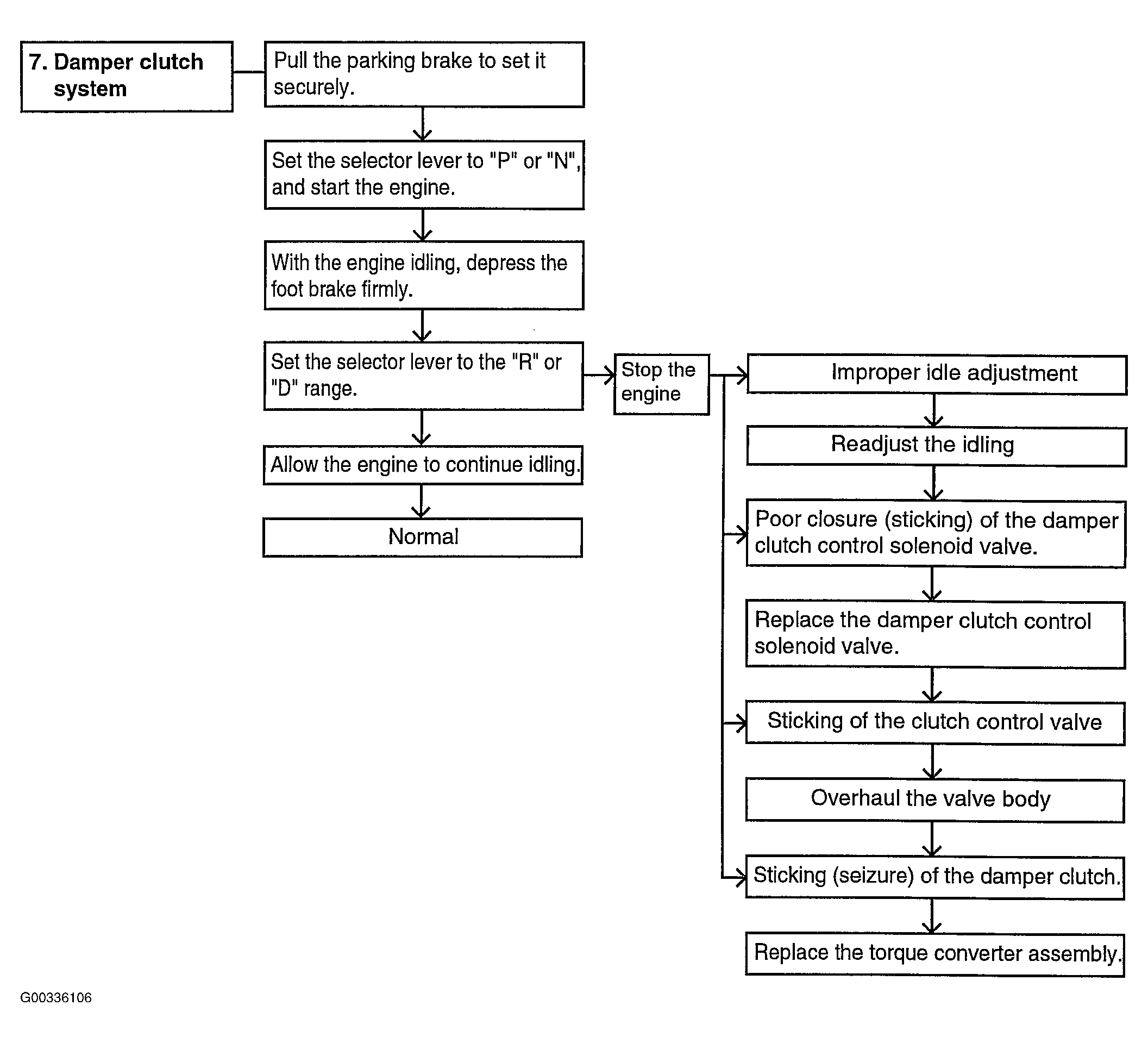

Fig 5: Inspecting Electronic Control System Components (5 Of 7)

Courtesy of HYUNDAI MOTOR CO.

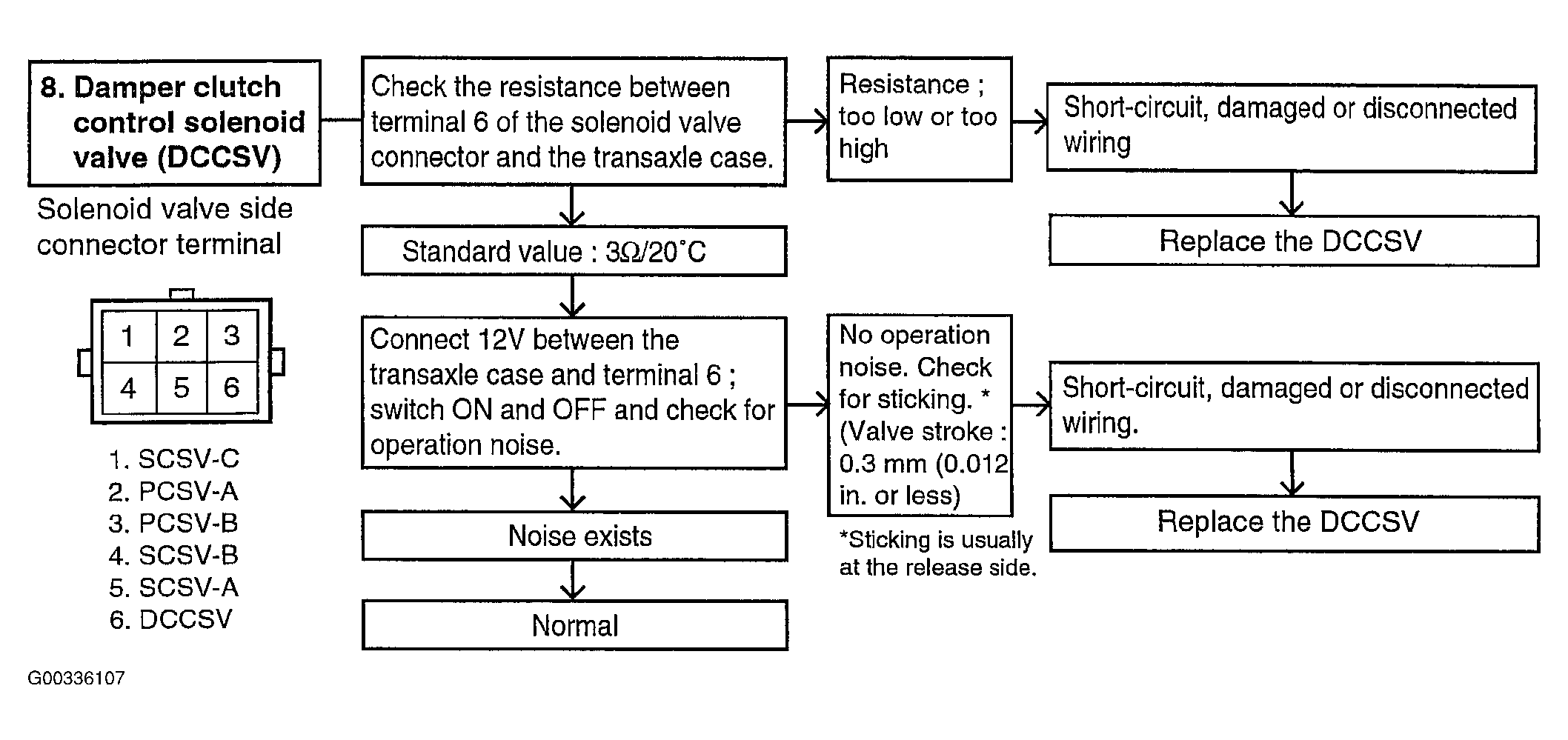

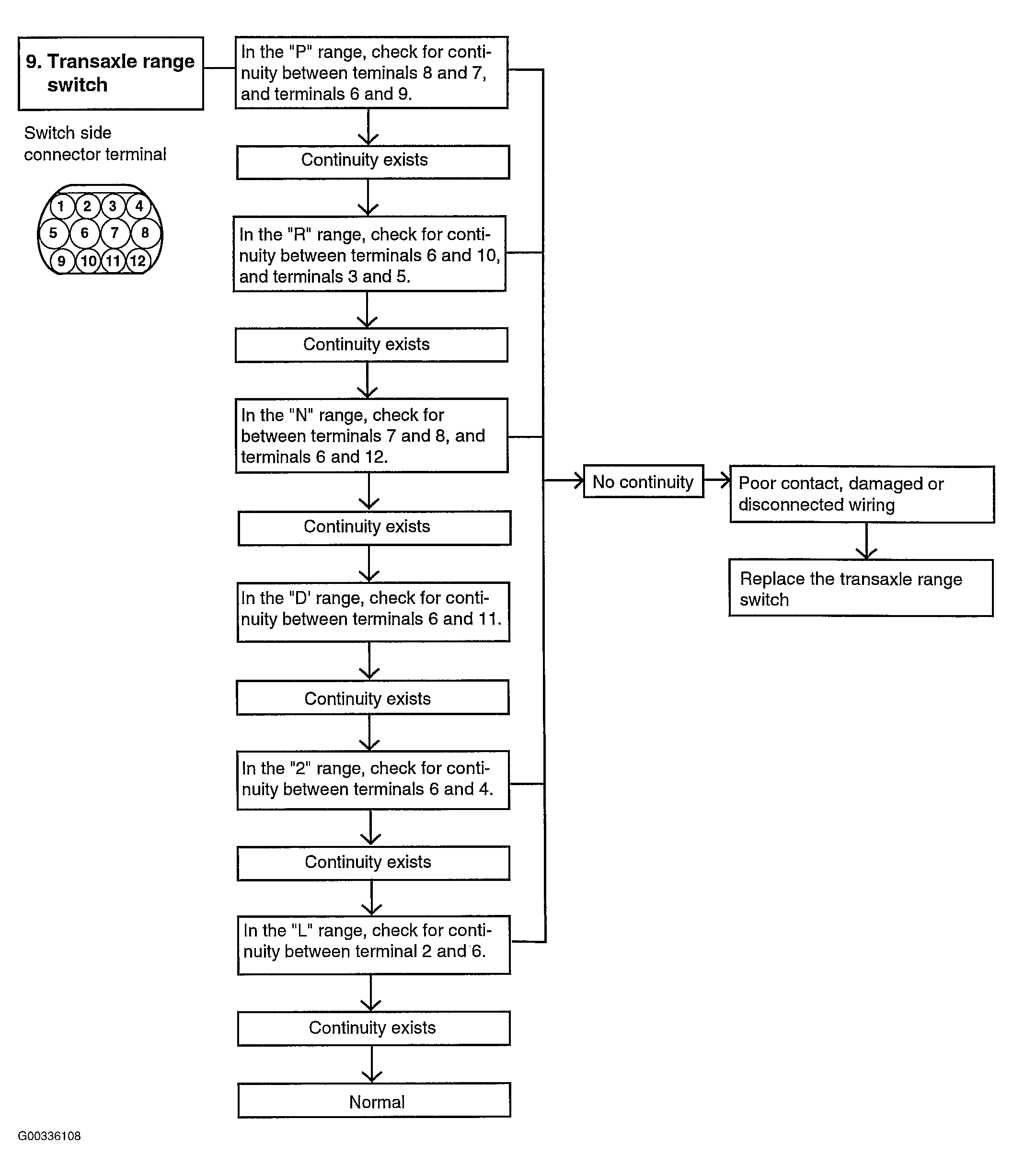

Fig 6: Inspecting Electronic Control System Components (6 Of 7)

Courtesy of HYUNDAI MOTOR CO.

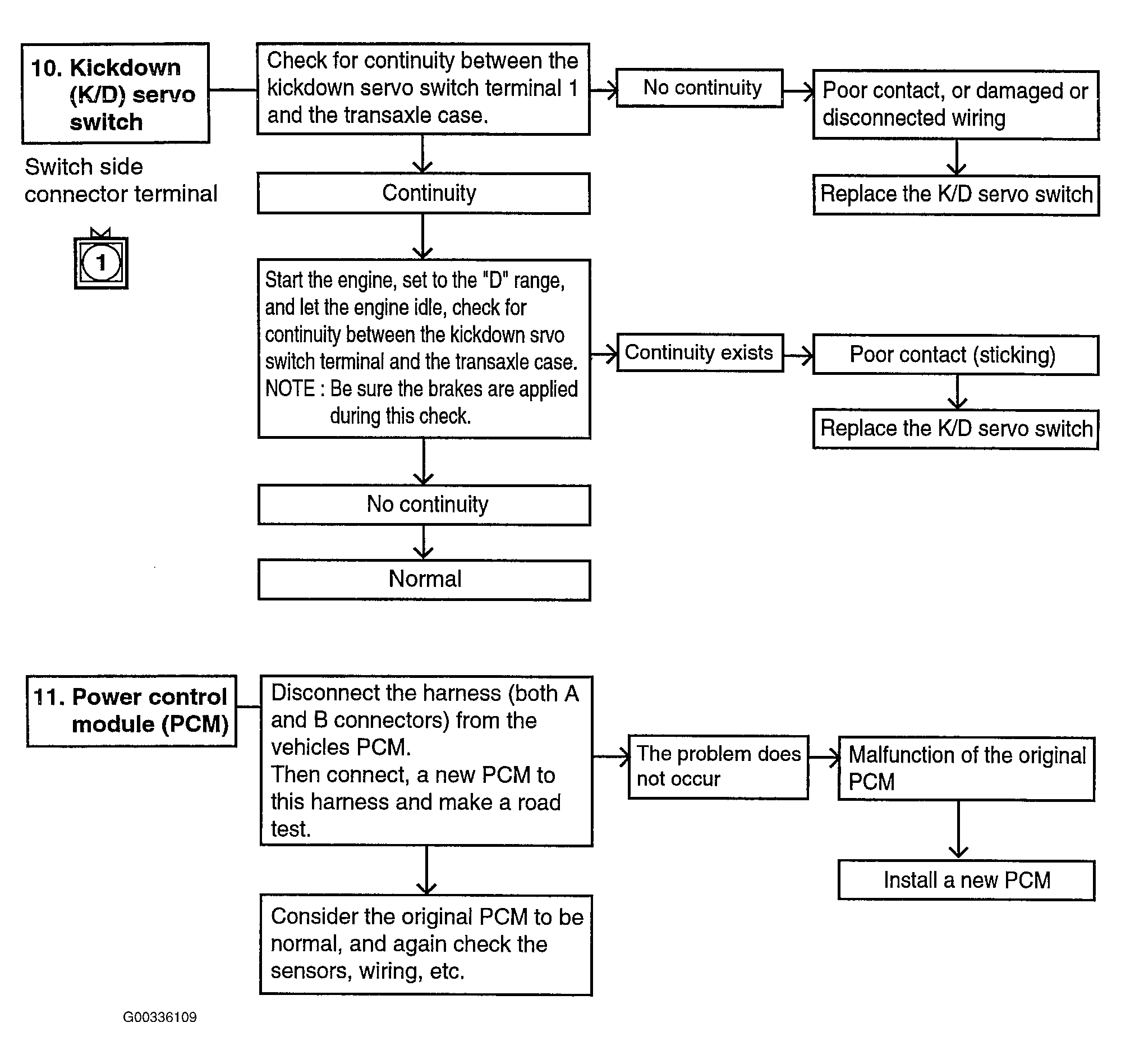

Fig 7: Inspecting Electronic Control System Components (7 Of 7)

Courtesy of HYUNDAI MOTOR CO.
