Home >> Hyundai >> 2004 >> Elantra GLS, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Anti-Lock Braking System Control Module >> Components

Anti-Lock Braking System Control Module: Components

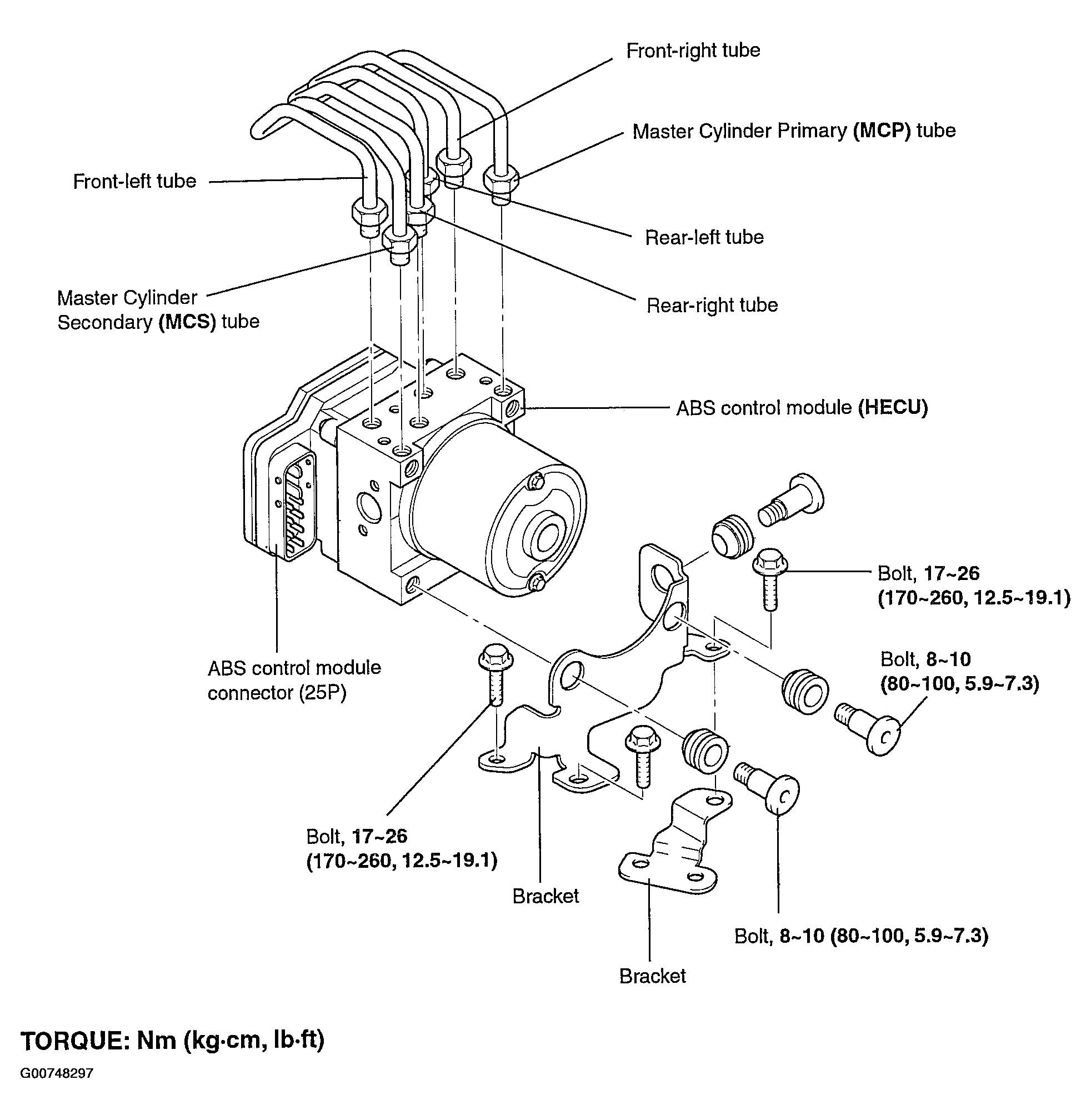

Fig 1: Identifying Anti-Lock Braking System Control Module Components

G00748297

Courtesy of HYUNDAI MOTOR CO.
