Home >> Hyundai >> 2004 >> Elantra GLS, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Components

Anti-Lock Brake System: Components

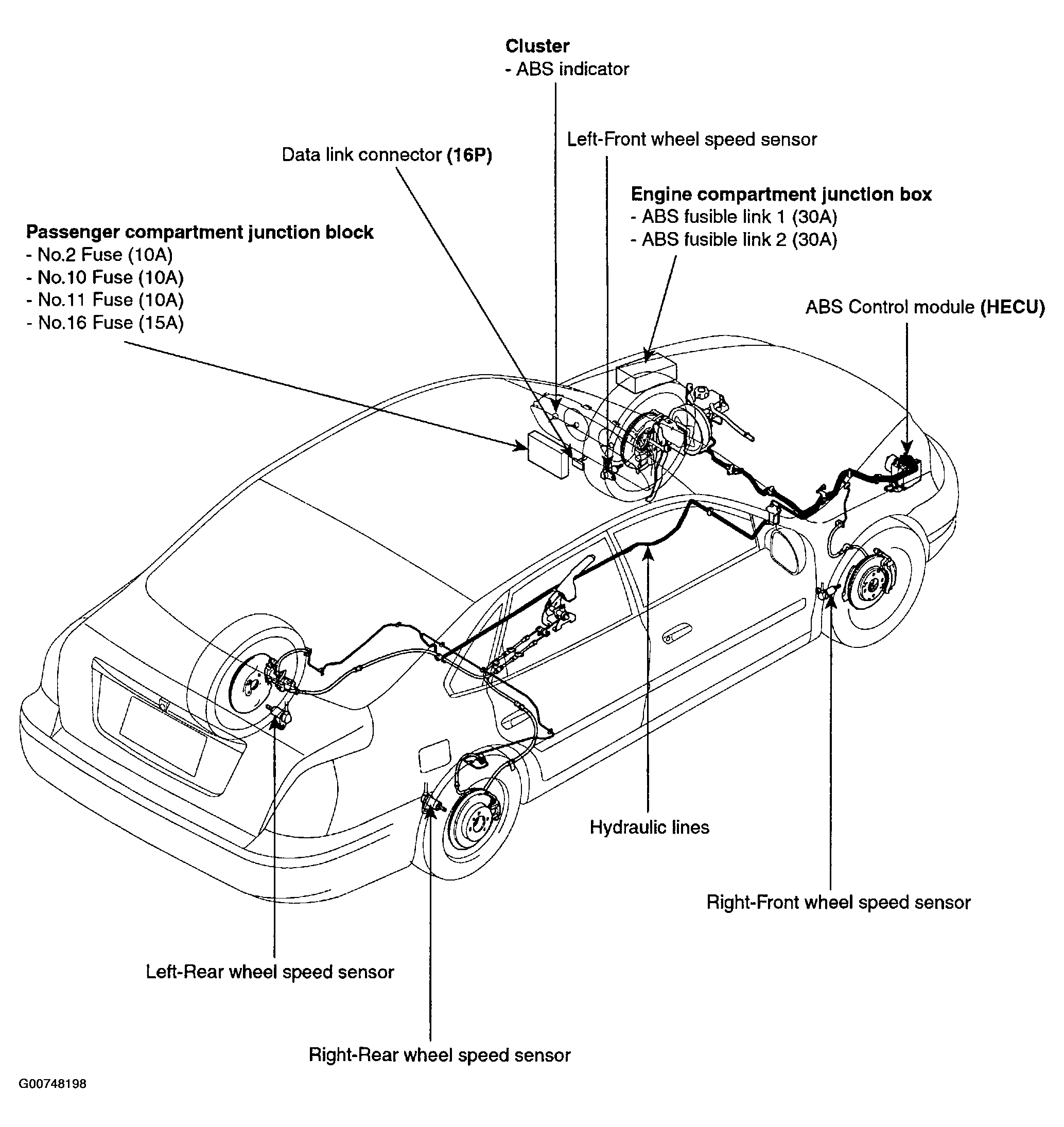

Fig 1: Locating ABS Components

G00748198

Courtesy of HYUNDAI MOTOR CO.
