Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

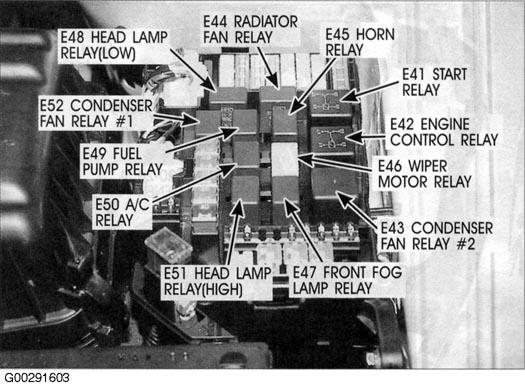

Engine Compartment Relay & Fuse Box In left front corner of engine compartment. See Figure.

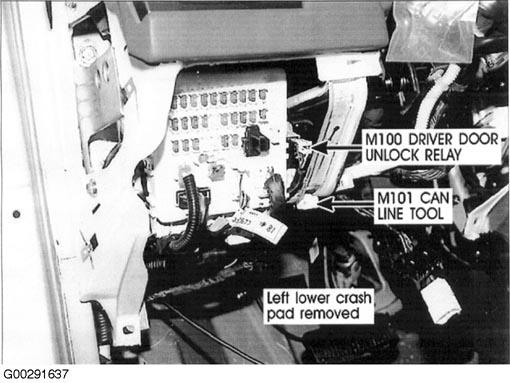

Passenger Compartment Junction Block Under left side of dash, near kick panel.Figure.

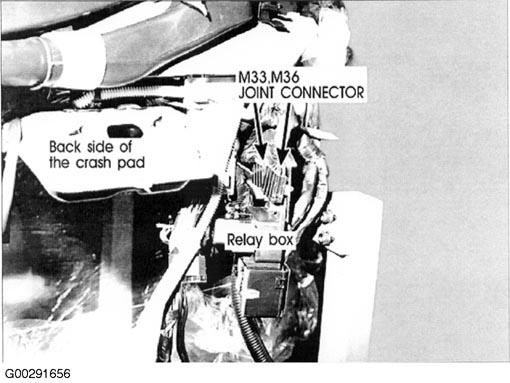

Passenger Compartment Relay Box Under left side of dash, beside passenger compartment junction block. See Figure.
