Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

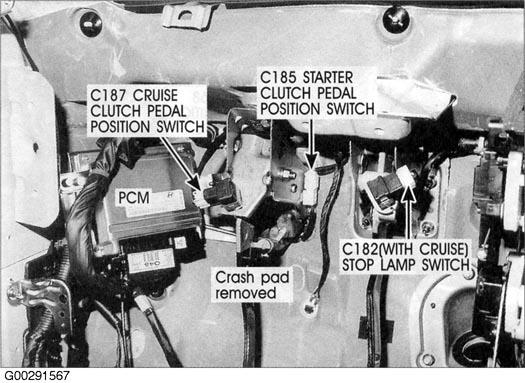

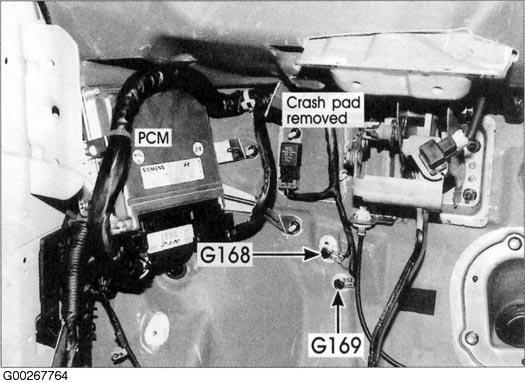

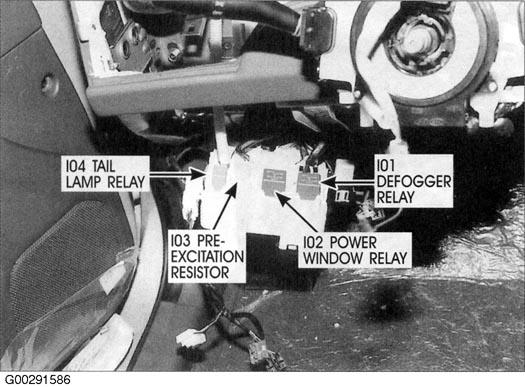

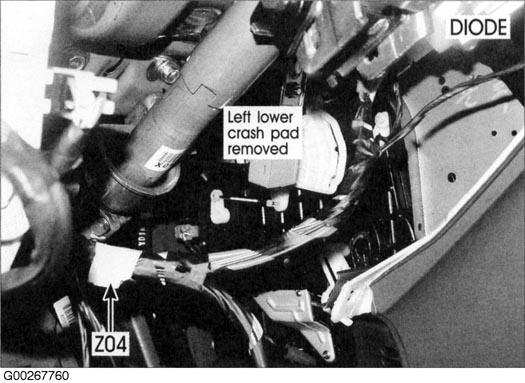

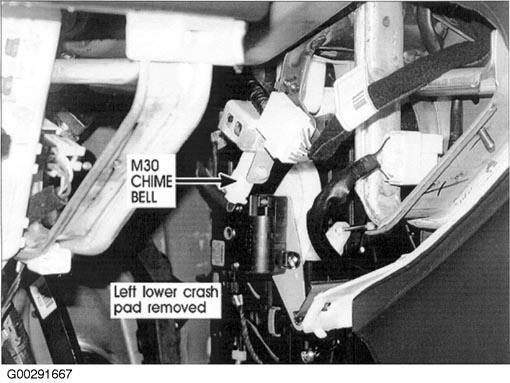

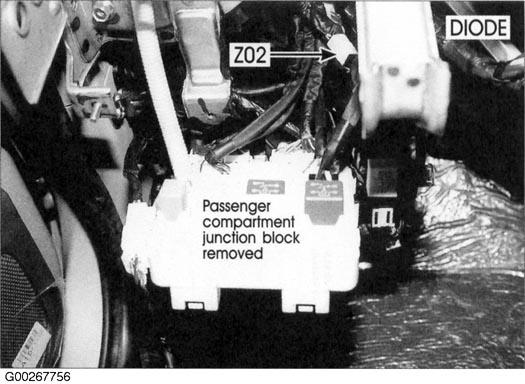

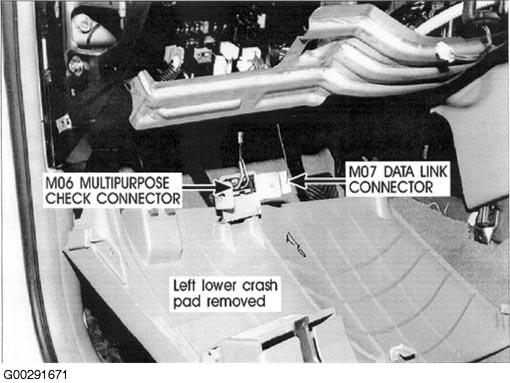

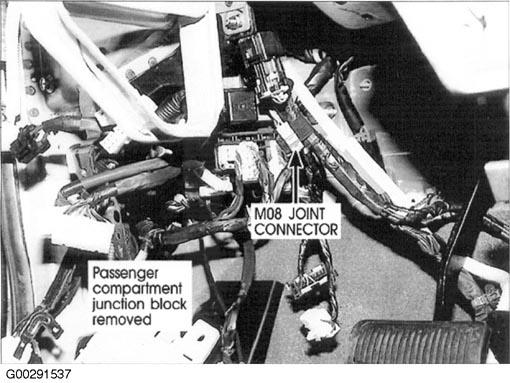

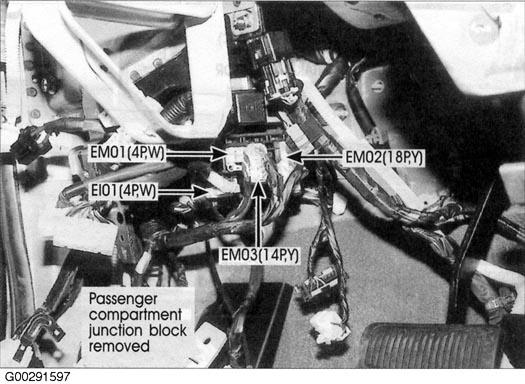

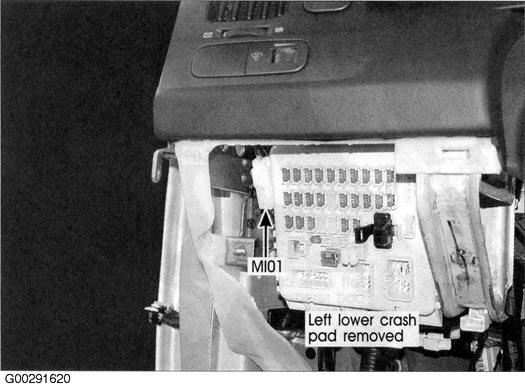

Fig 1: Lower Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

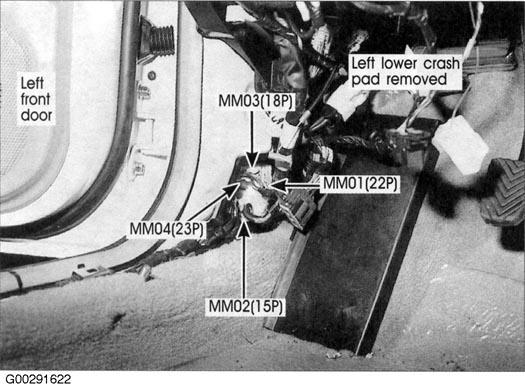

Fig 2: Lower Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

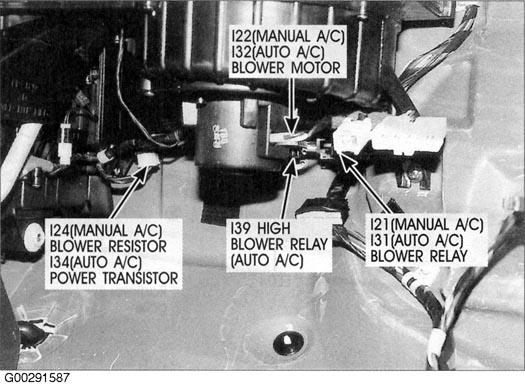

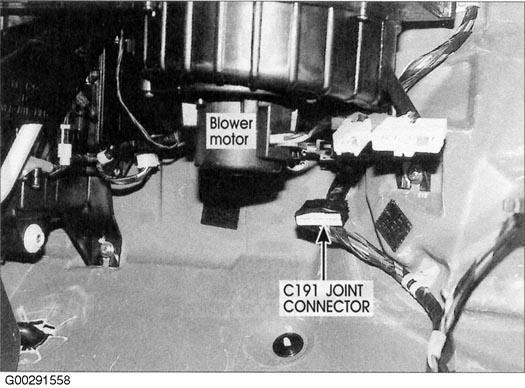

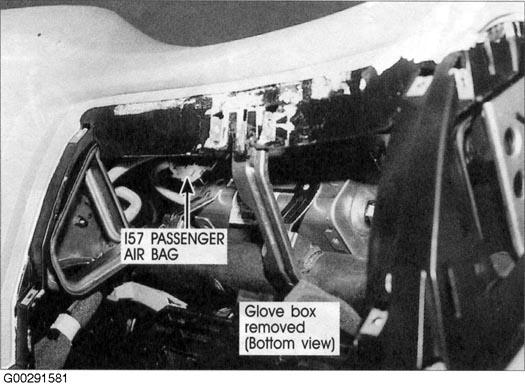

Fig 3: Right Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

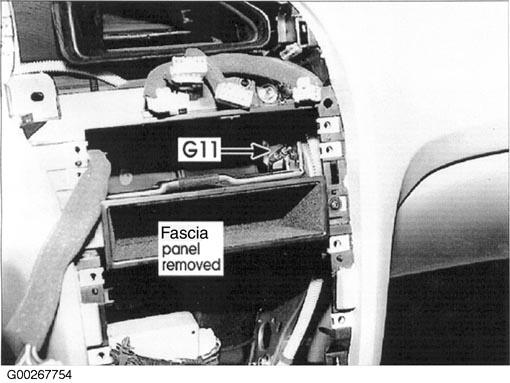

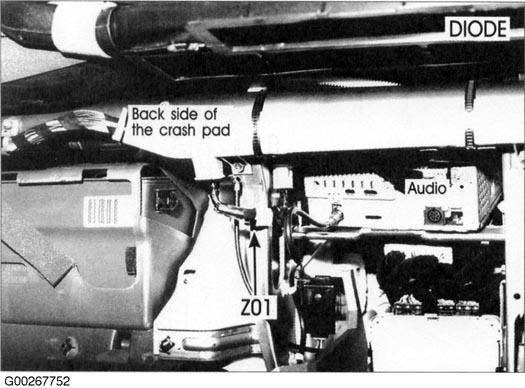

Fig 4: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 5: Left Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 6: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

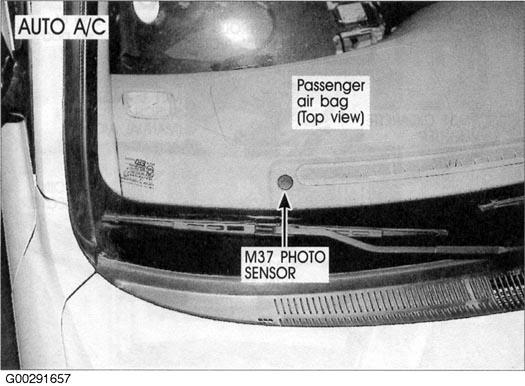

Fig 7: Right Top Of Dash
Courtesy of HYUNDAI MOTOR CO.

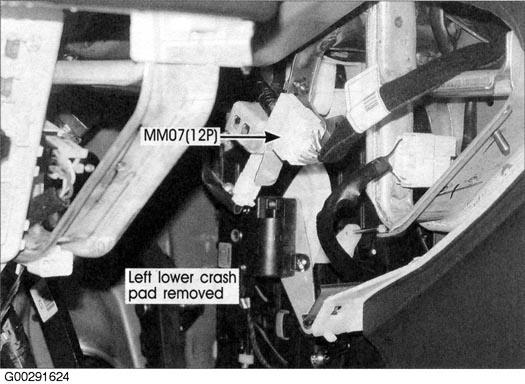

Fig 8: Lower Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 9: Lower Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 10: Under Driver Seat
Courtesy of HYUNDAI MOTOR CO.

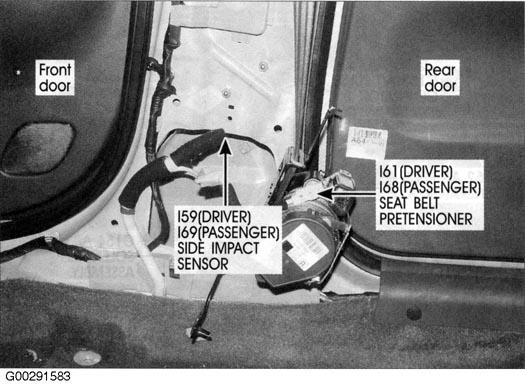

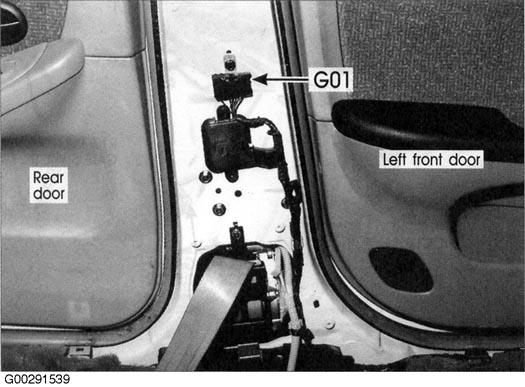

Fig 11: Left "B" Pillar
Courtesy of HYUNDAI MOTOR CO.

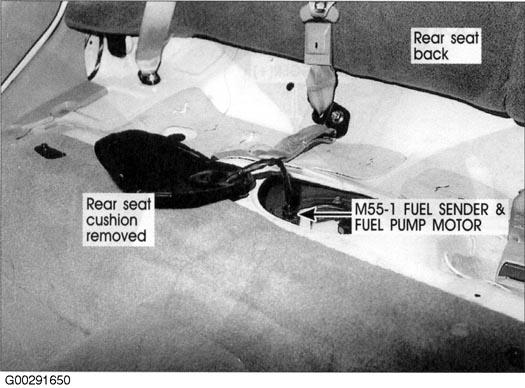

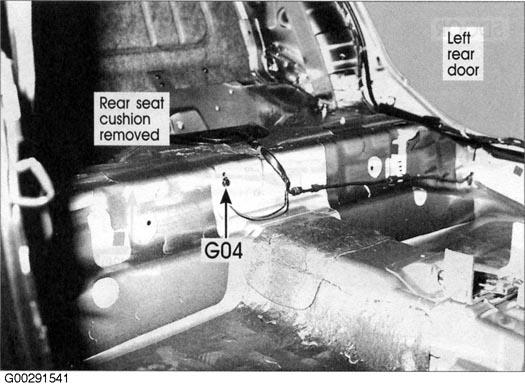

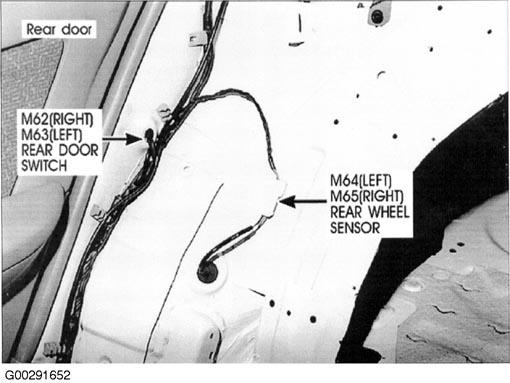

Fig 12: Under Rear Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 13: Above Right End Of Package Shelf
Courtesy of HYUNDAI MOTOR CO.
Fig 14: Right Quarter Panel
Courtesy of HYUNDAI MOTOR CO.

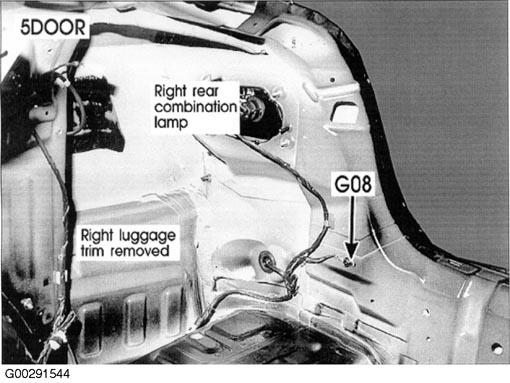

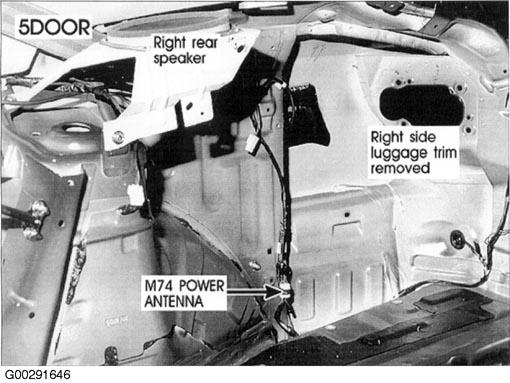

Fig 15: Right Side Of Luggage Area (5 Door)
Courtesy of HYUNDAI MOTOR CO.

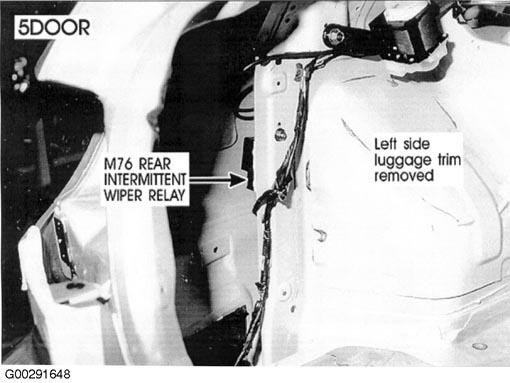

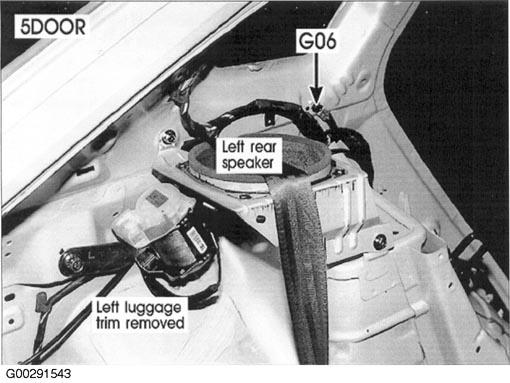

Fig 16: Left Side Of Luggage Area (5 Door)
Courtesy of HYUNDAI MOTOR CO.

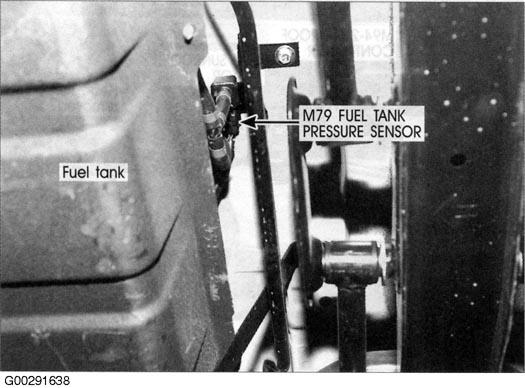

Fig 17: Left Side Of Fuel Tank
Courtesy of HYUNDAI MOTOR CO.

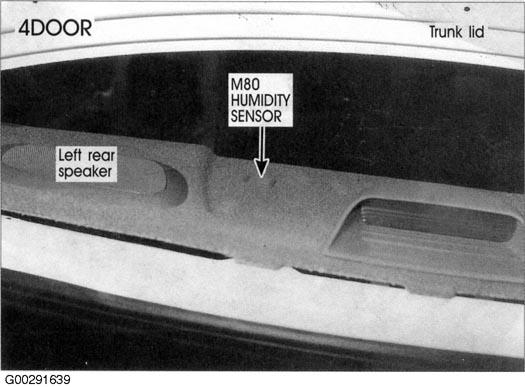

Fig 18: Left Side Of Rear Shelf
Courtesy of HYUNDAI MOTOR CO.
Fig 19: Right Rear Shock Tower (5 Door)
Courtesy of HYUNDAI MOTOR CO.

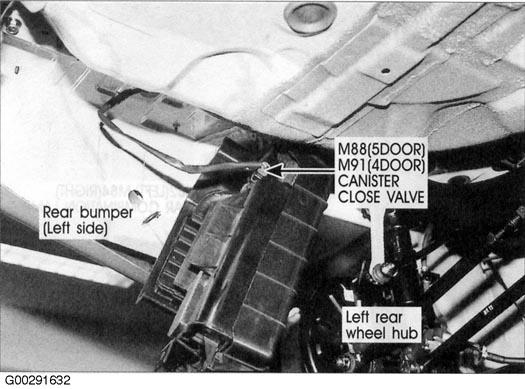

Fig 20: Under Left Rear Of Vehicle
Courtesy of HYUNDAI MOTOR CO.

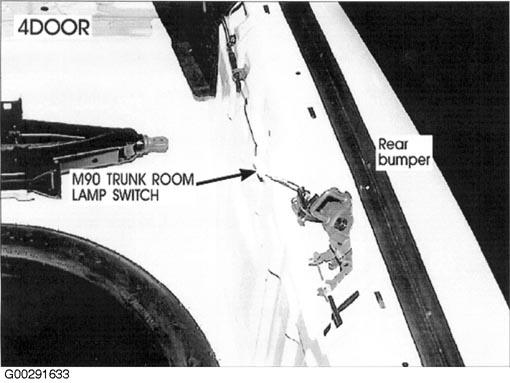

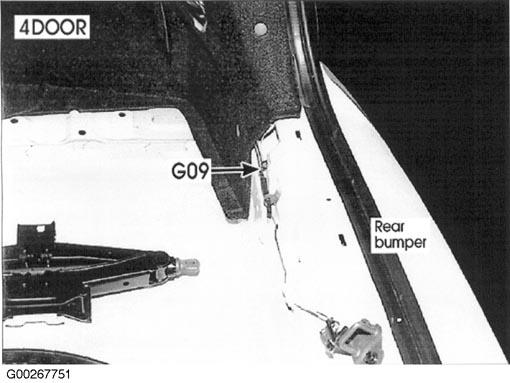

Fig 21: Rear Of Trunk Room
Courtesy of HYUNDAI MOTOR CO.

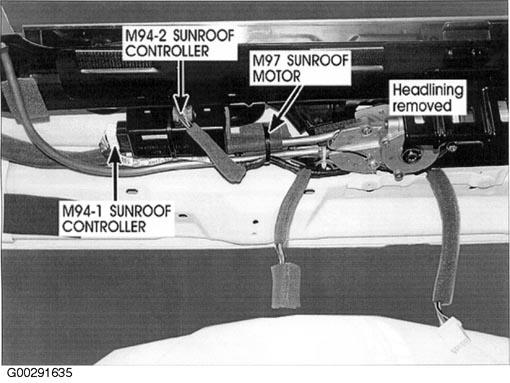

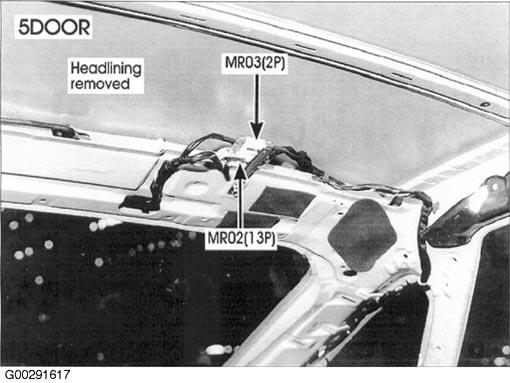

Fig 22: Headliner
Courtesy of HYUNDAI MOTOR CO.
Fig 23: Lower Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

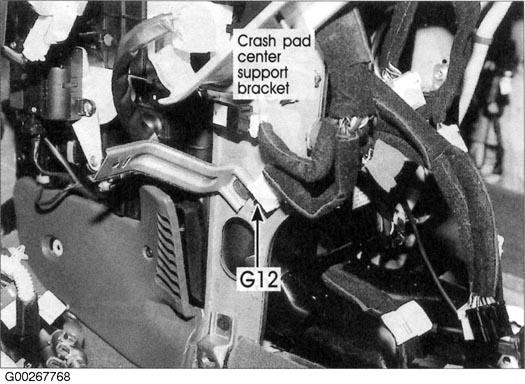

Fig 24: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

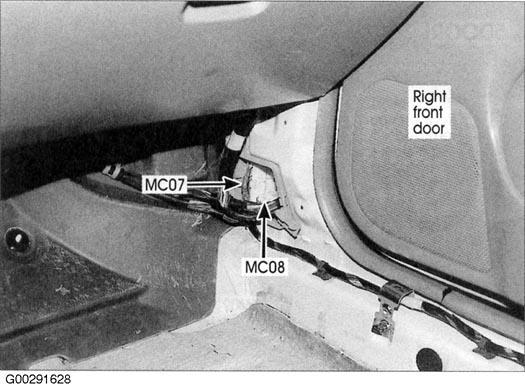

Fig 25: Right Kick Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 26: Left Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

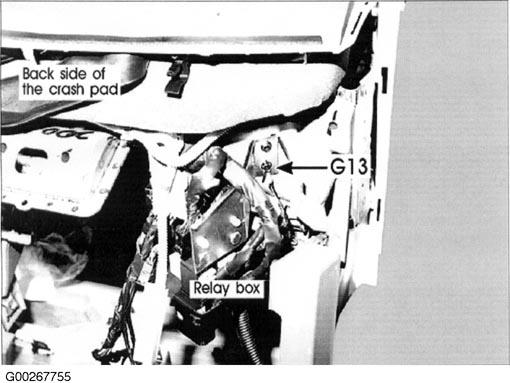

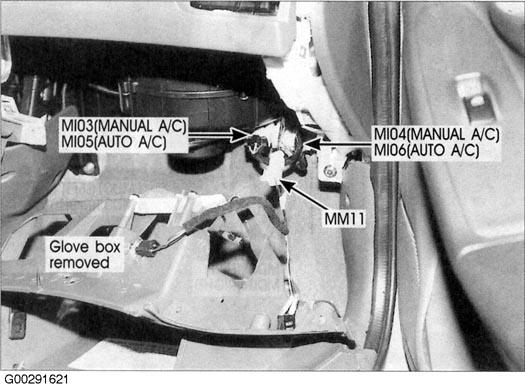

Fig 27: Right End Of Dash
Courtesy of HYUNDAI MOTOR CO.

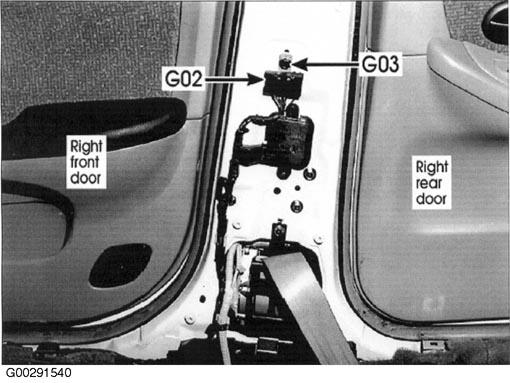

Fig 28: Right "B" Pillar
Courtesy of HYUNDAI MOTOR CO.

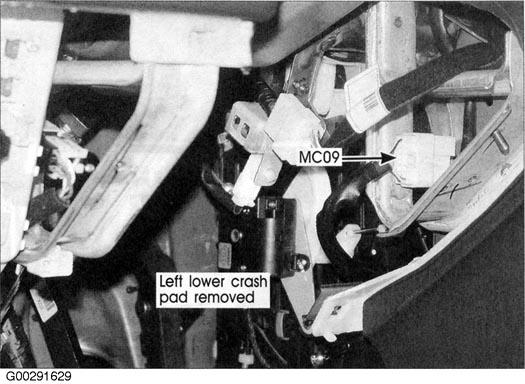

Fig 29: Lower Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 30: Right End Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 31: Left Kick Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 32: Headliner
Courtesy of HYUNDAI MOTOR CO.
Fig 33: Left Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

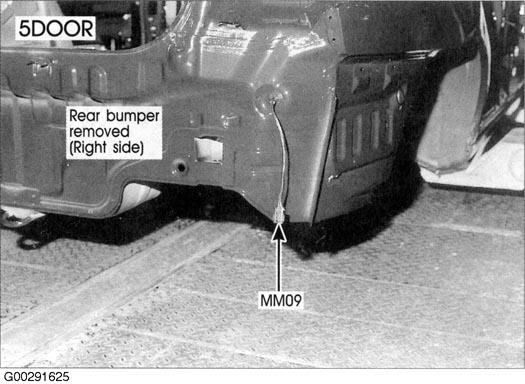

Fig 34: Under Right Rear Of Vehicle (5 Door)
Courtesy of HYUNDAI MOTOR CO.

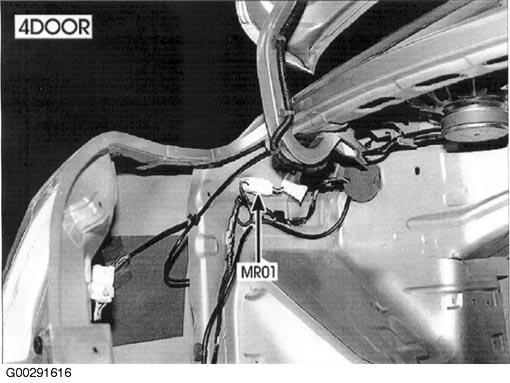

Fig 35: Top Left Front Of Trunk Room
Courtesy of HYUNDAI MOTOR CO.
Fig 36: Left Rear Headliner
Courtesy of HYUNDAI MOTOR CO.

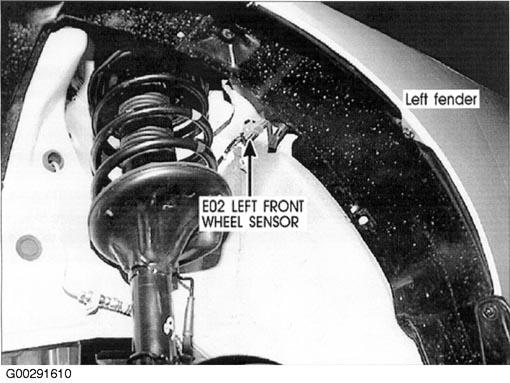

Fig 37: Left Front Wheel
Courtesy of HYUNDAI MOTOR CO.

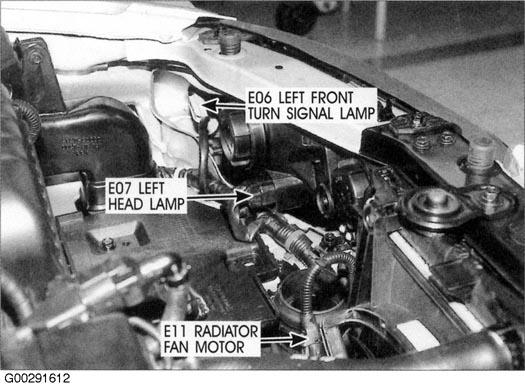

Fig 38: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

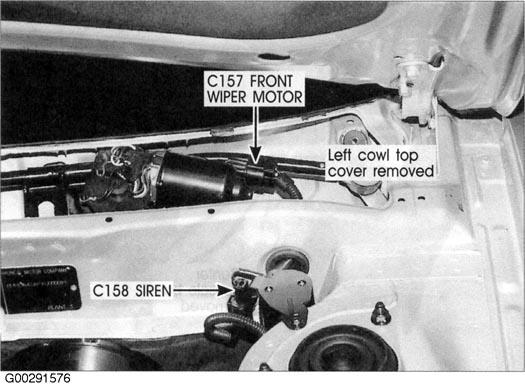

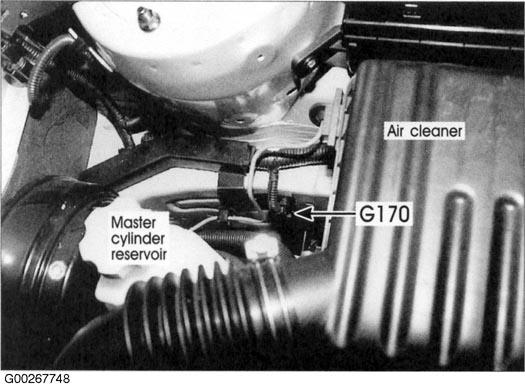

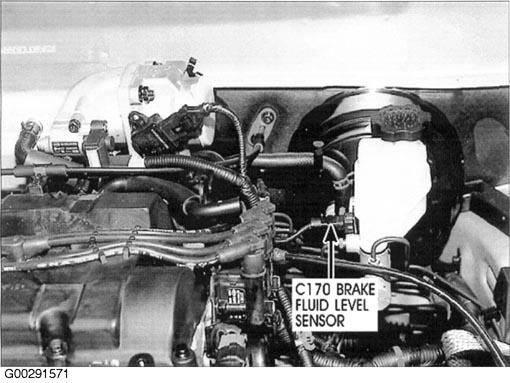

Fig 39: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

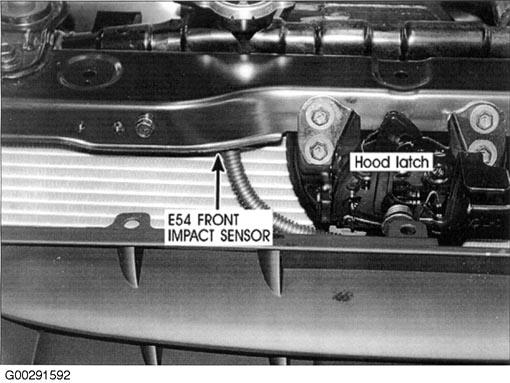

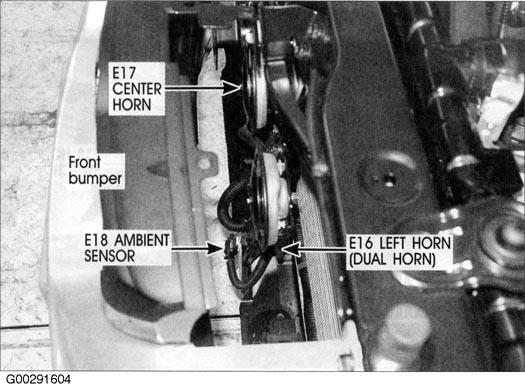

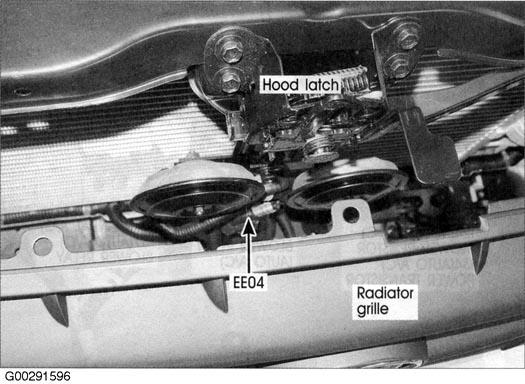

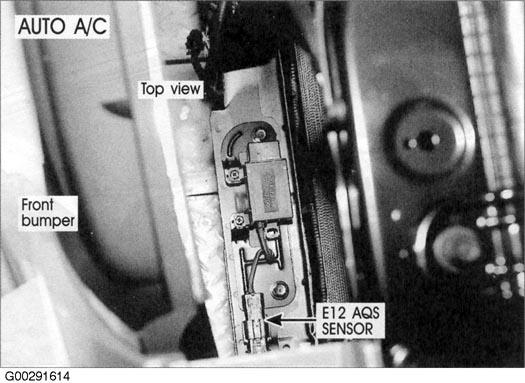

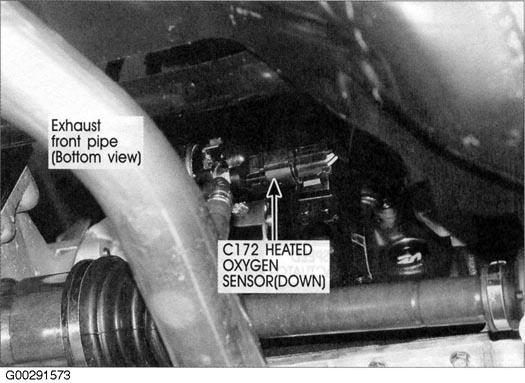

Fig 40: Behind Center Of Front Bumper
Courtesy of HYUNDAI MOTOR CO.
Fig 41: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 42: Right Front Of Engine
Courtesy of HYUNDAI MOTOR CO.

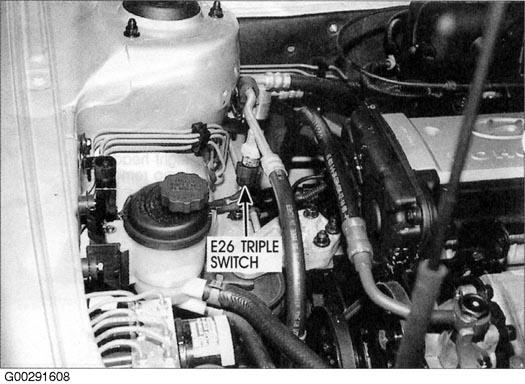

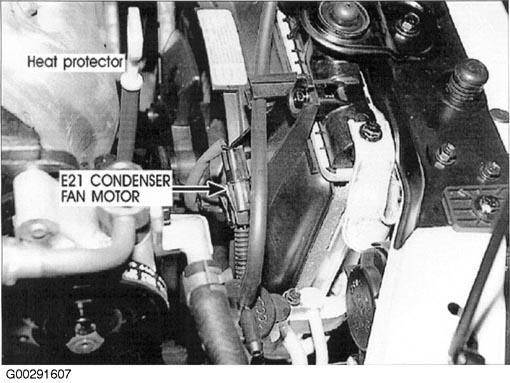

Fig 43: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 44: Right Side Of Engine
Courtesy of HYUNDAI MOTOR CO.

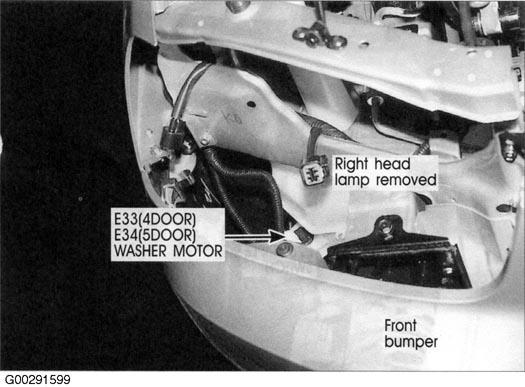

Fig 45: Right Front Corner Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 46: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

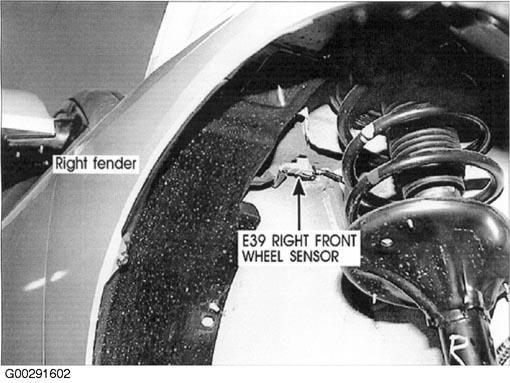

Fig 47: Right Front Wheel
Courtesy of HYUNDAI MOTOR CO.

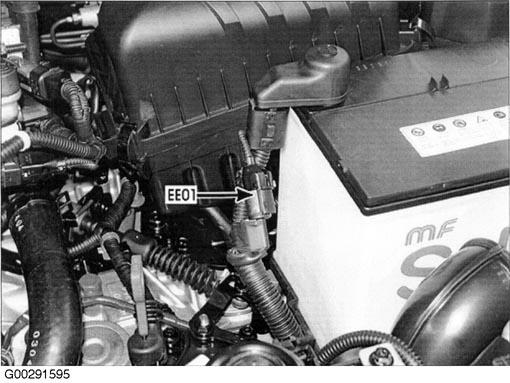

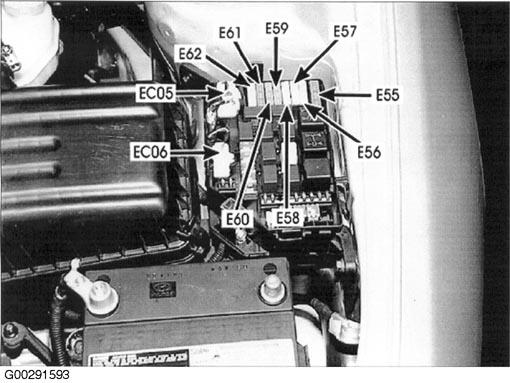

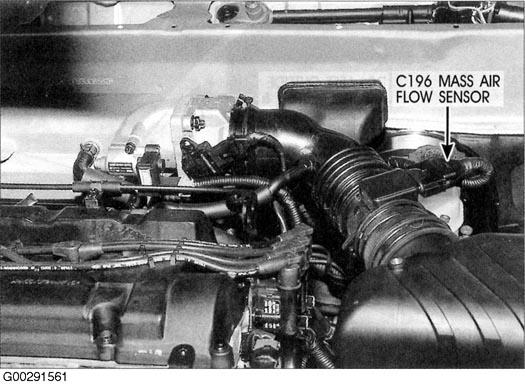

Fig 48: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 49: Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 50: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

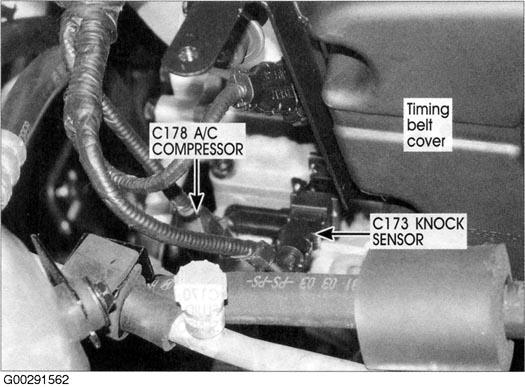

Fig 51: Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 52: Left Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 53: Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 54: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

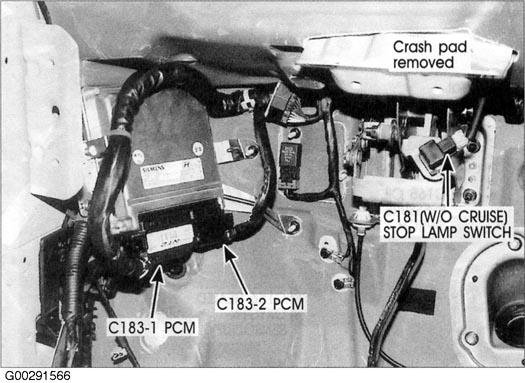

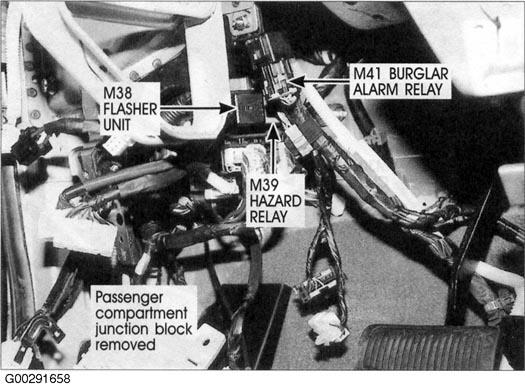

Fig 55: Lower Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 56: Lower Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 57: Right Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 58: Left Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

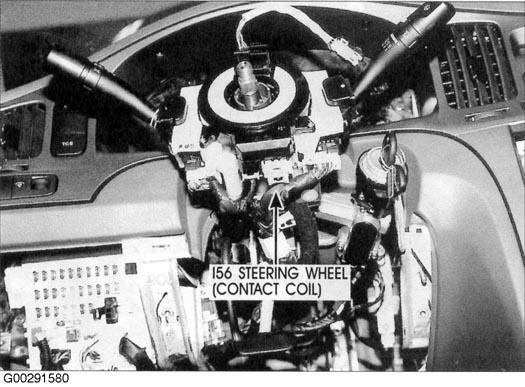

Fig 59: Top Of Steering Column
Courtesy of HYUNDAI MOTOR CO.
Fig 60: Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

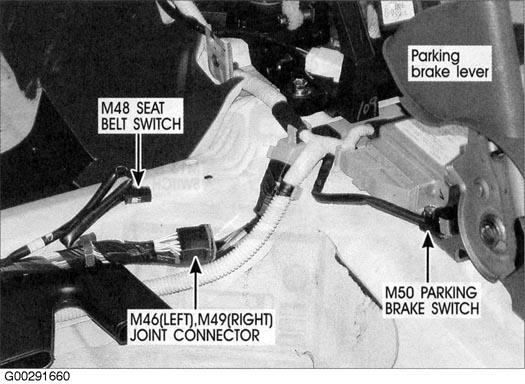

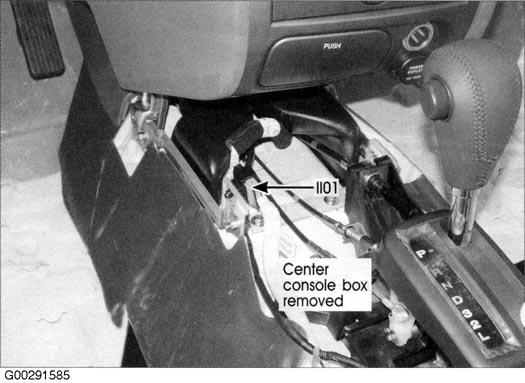

Fig 61: Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 62: Right "B" Pillar
Courtesy of HYUNDAI MOTOR CO.

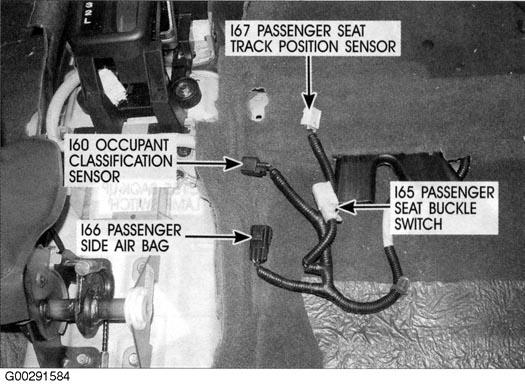

Fig 63: Under Front Passenger Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 64: Center Console
Courtesy of HYUNDAI MOTOR CO.

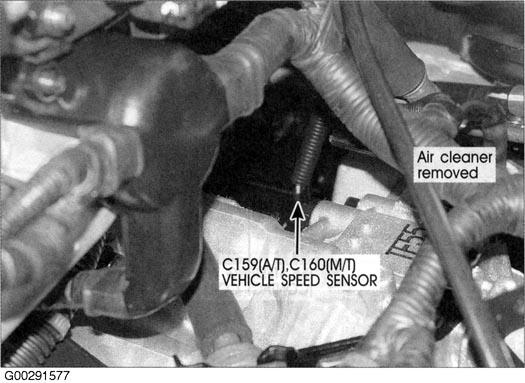

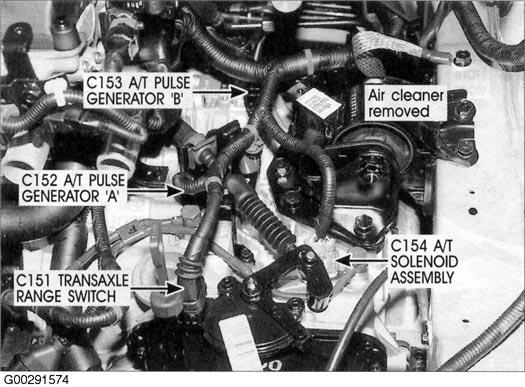

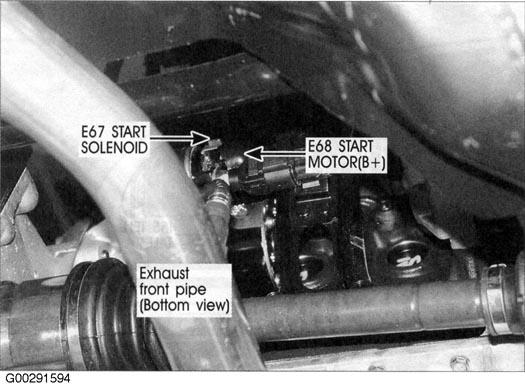

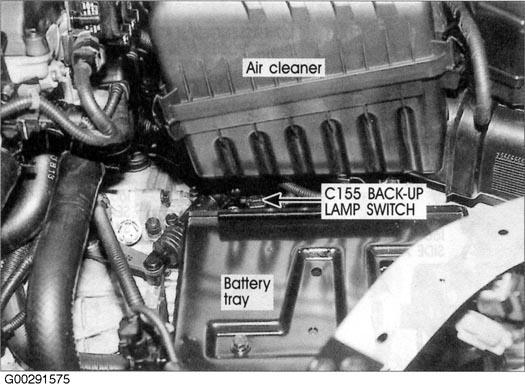

Fig 65: Transaxle
Courtesy of HYUNDAI MOTOR CO.
Fig 66: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 67: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 68: Transaxle
Courtesy of HYUNDAI MOTOR CO.

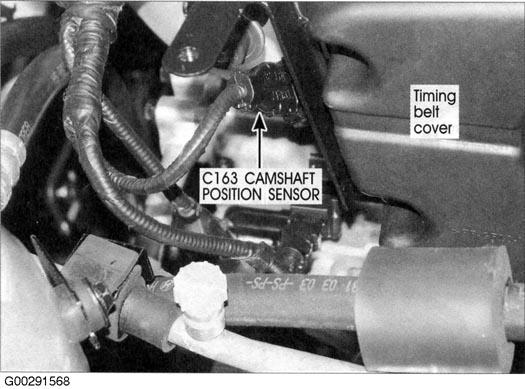

Fig 69: Left Front Of Engine
Courtesy of HYUNDAI MOTOR CO.

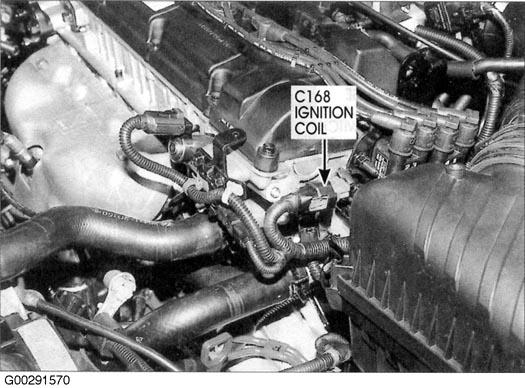

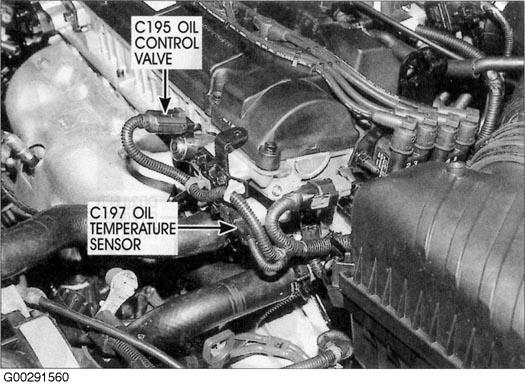

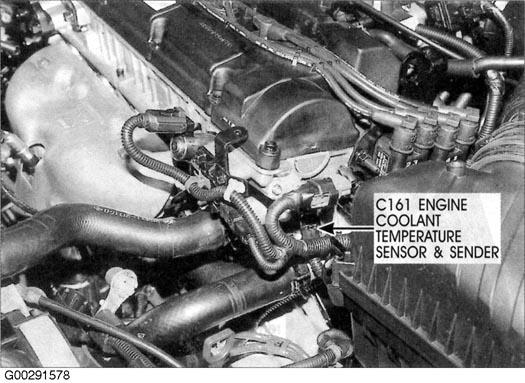

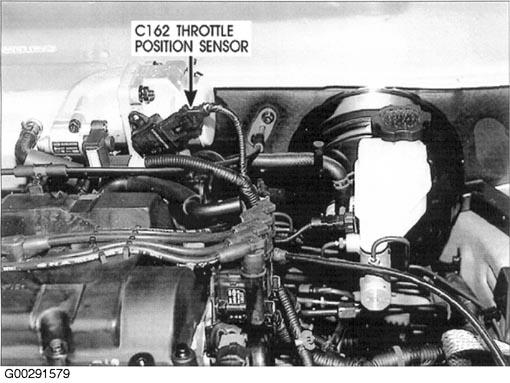

Fig 70: Engine
Courtesy of HYUNDAI MOTOR CO.

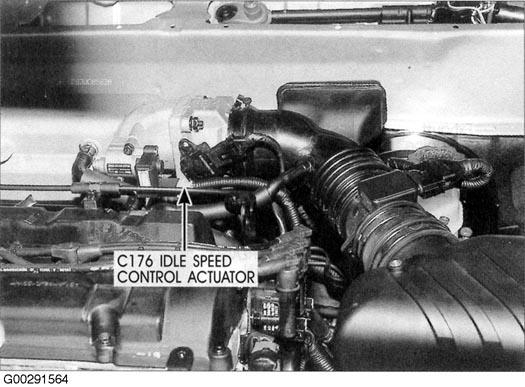

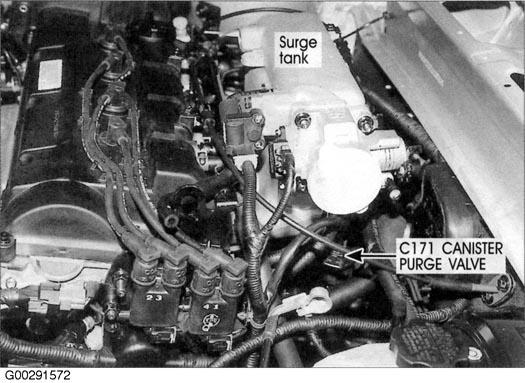

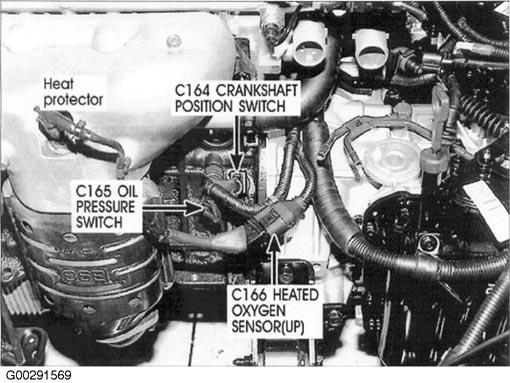

Fig 71: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 72: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 73: Left Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 74: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 75: Top Left End Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 76: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 77: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 78: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 79: Right Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

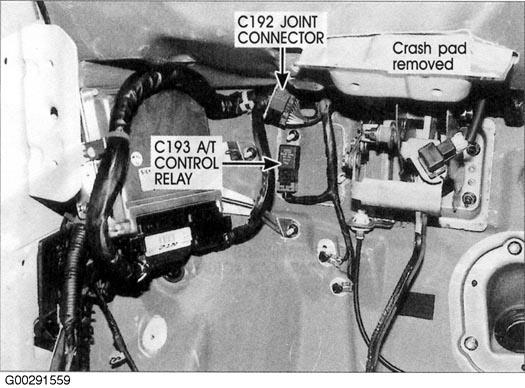

Fig 80: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 81: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 82: Lower Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 83: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 84: Left Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 85: Engine
Courtesy of HYUNDAI MOTOR CO.

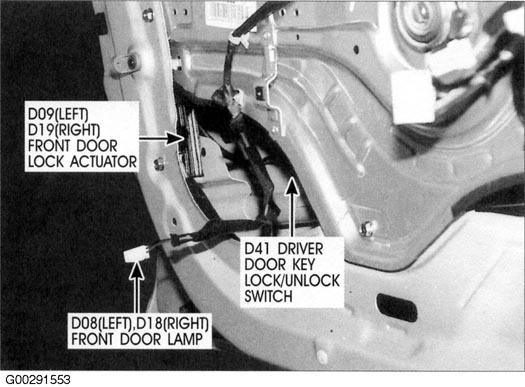

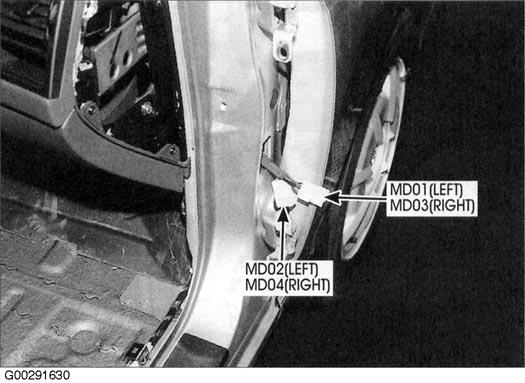

Fig 86: Left Front Door
Courtesy of HYUNDAI MOTOR CO.

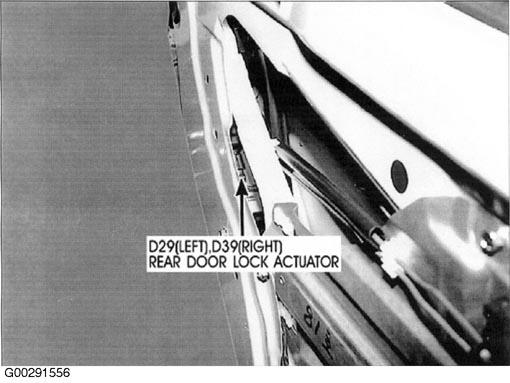

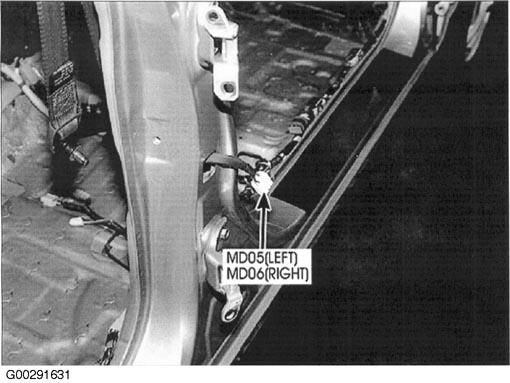

Fig 87: Left Rear Door
Courtesy of HYUNDAI MOTOR CO.

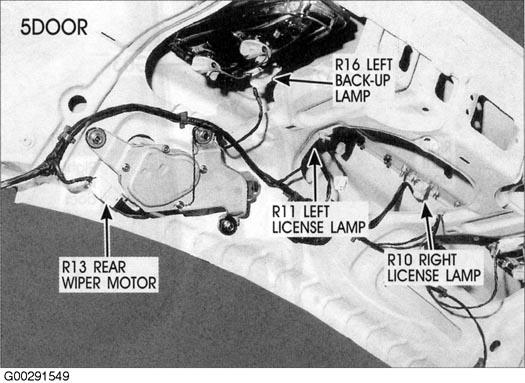

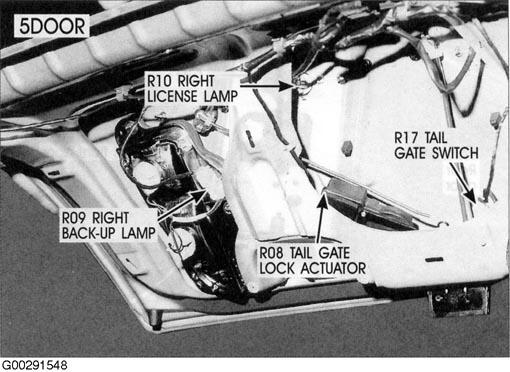

Fig 88: Tail Gate (5 Door)
Courtesy of HYUNDAI MOTOR CO.
Fig 89: Tail Gate (5 Door)
Courtesy of HYUNDAI MOTOR CO.
Fig 90: Tail Gate (5 Door)
Courtesy of HYUNDAI MOTOR CO.

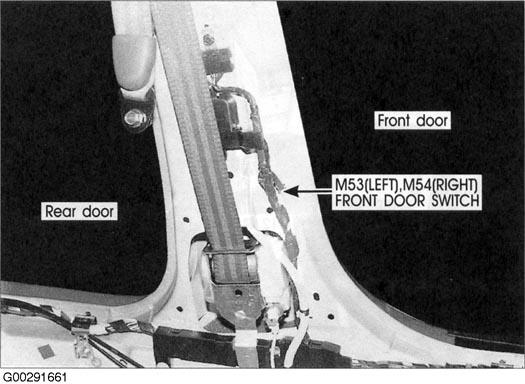

Fig 91: Left "B" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 92: Right "B" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 93: Below Center Of Rear Seat
Courtesy of HYUNDAI MOTOR CO.

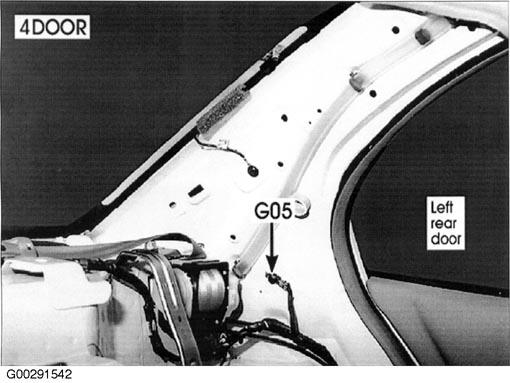

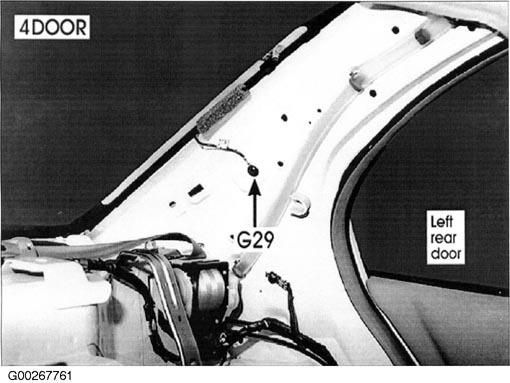

Fig 94: Left "C" Pillar (4 Door)
Courtesy of HYUNDAI MOTOR CO.
Fig 95: Left Side Luggage Area (5 Door)
Courtesy of HYUNDAI MOTOR CO.
Fig 96: Right Rear Of Trunk Room
Courtesy of HYUNDAI MOTOR CO.

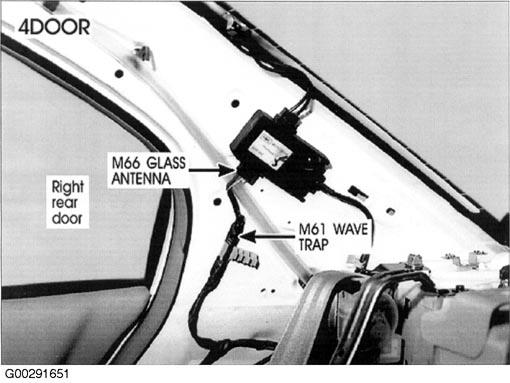

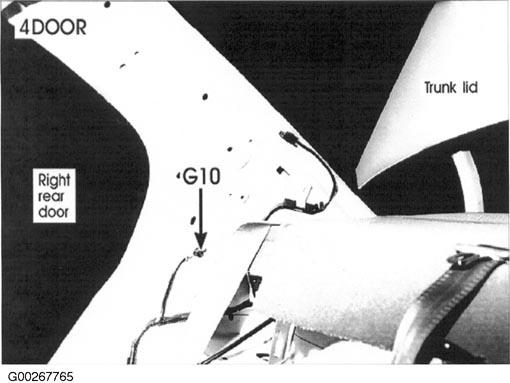

Fig 97: Right "C" Pillar
Courtesy of HYUNDAI MOTOR CO.

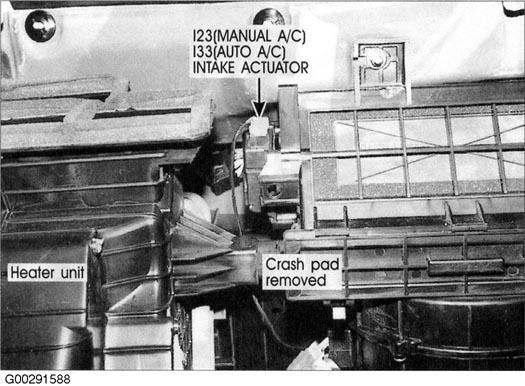

Fig 98: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

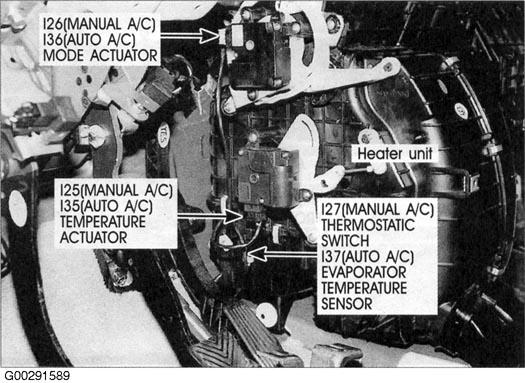

Fig 99: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 100: Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.

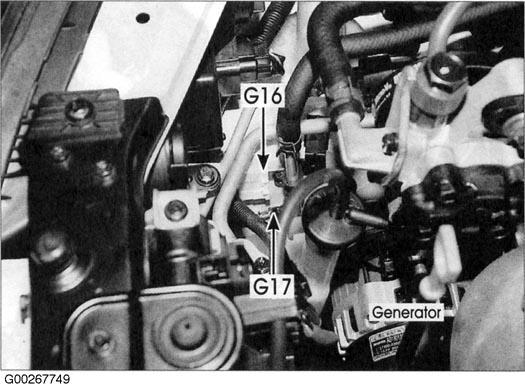

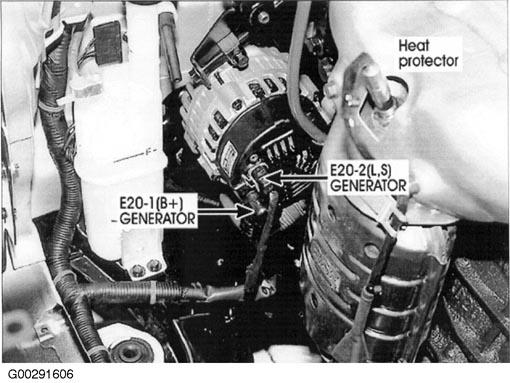

Fig 101: Near Generator
Courtesy of HYUNDAI MOTOR CO.

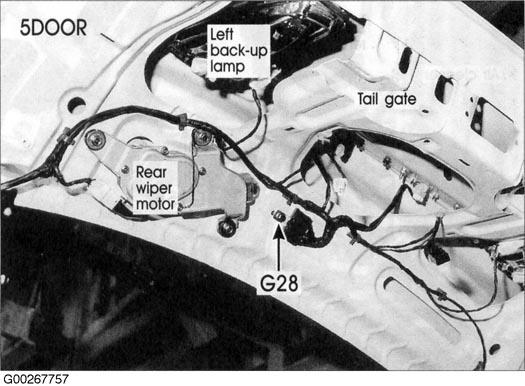

Fig 102: Tail Gate (5 Door)
Courtesy of HYUNDAI MOTOR CO.
Fig 103: Above Left End Of Rear Shelf
Courtesy of HYUNDAI MOTOR CO.

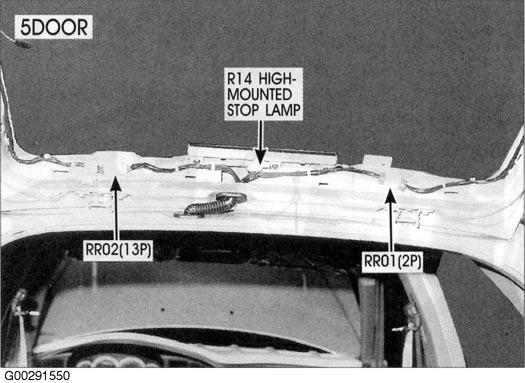

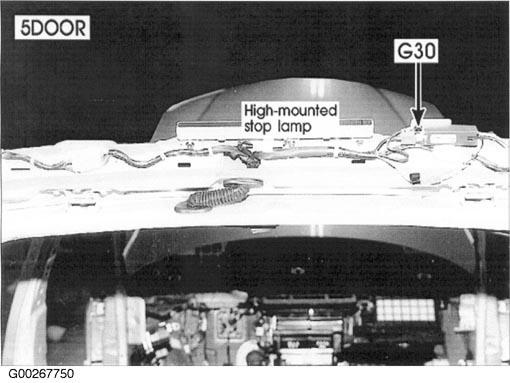

Fig 104: Top Right Of Tail Gate (5 Door)
Courtesy of HYUNDAI MOTOR CO.
Fig 105: Lower Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 106: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 107: Right Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 108: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 109: Below Steering Column
Courtesy of HYUNDAI MOTOR CO.

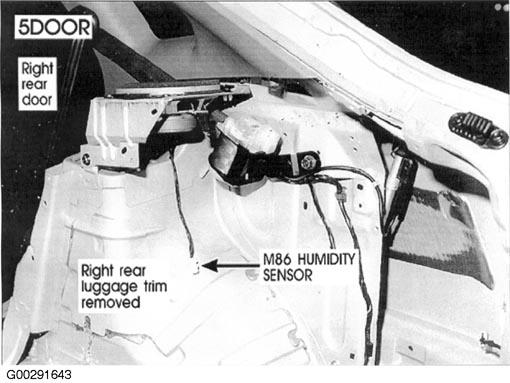

Fig 110: Right Side Of Luggage Area (5 Door)
Courtesy of HYUNDAI MOTOR CO.

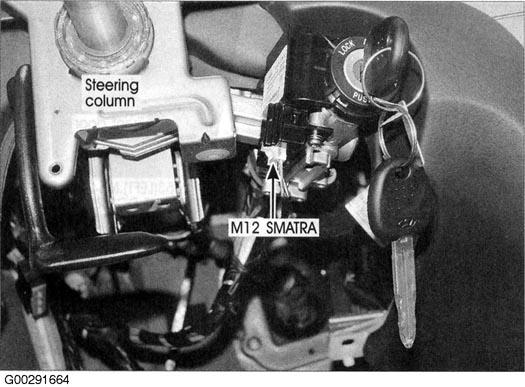

Fig 111: Ignition Switch
Courtesy of HYUNDAI MOTOR CO.
