Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

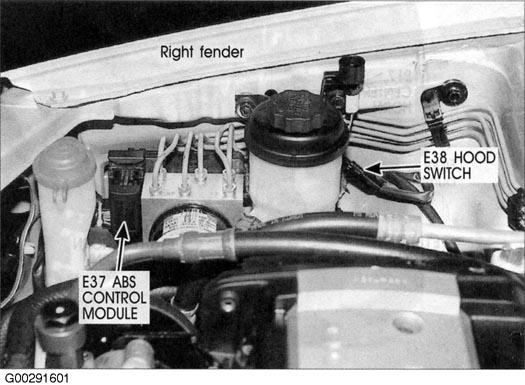

| ABS Control Module | In right front corner of engine compartment. See Figure. |

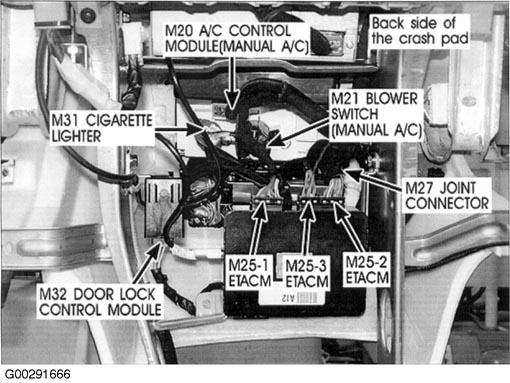

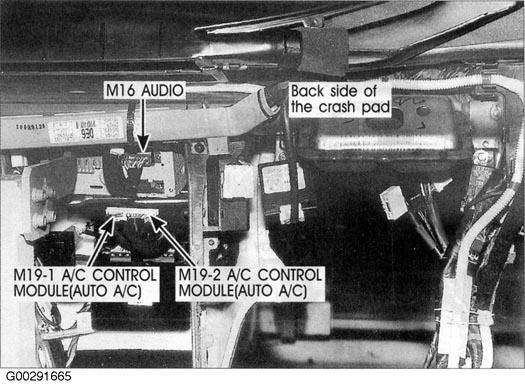

| A/C Control Module | Below center of dash, forward of shift lever. See Figure. |

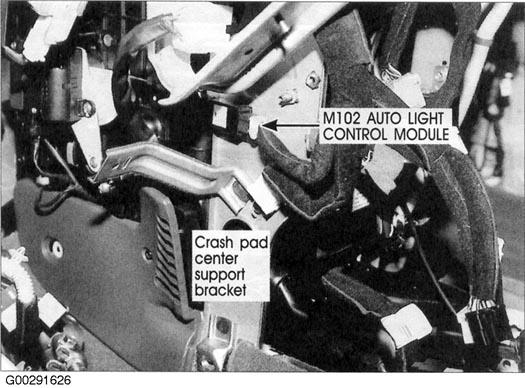

| Auto Light Control Module | Center of dash. See Figure. |

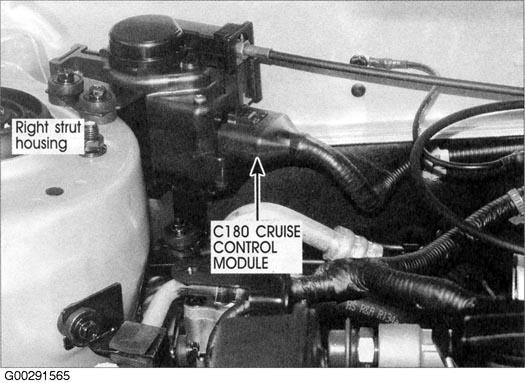

| Cruise Control Module | On right fender, behind strut tower. See Figure. |
| Door Lock Control Module | Behind center of dash. See Figure. |

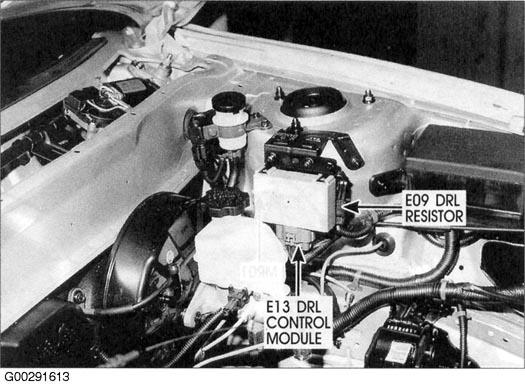

| DRL Control Module | On left front inner fender panel.Figure. |
| ETACM | Under center of dash, below radio.Figure. |

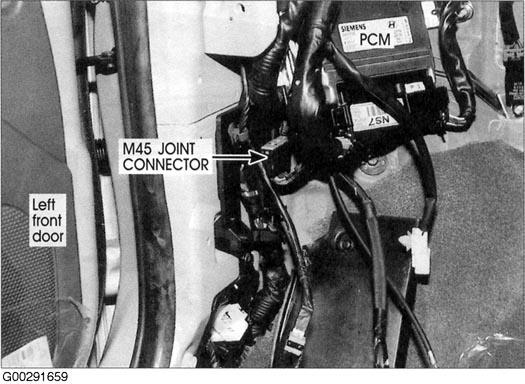

| PCM | Left side of dash. See Figure. |

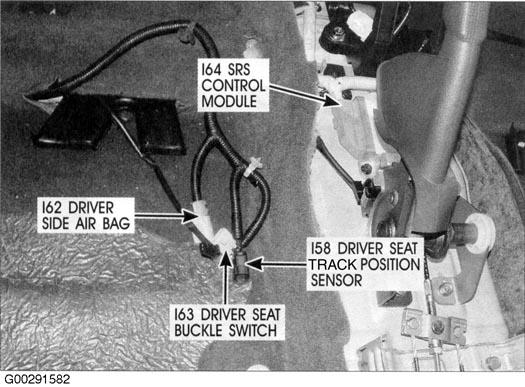

| SRS Control Module | Under rear console. See Figure. |
