Ignition Coil

  1. Remove the engine cover.
  2. Disconnect the spark plug cable and connector.
  3. Remove the ignition coil.
  4. Installation is the reverse of removal.

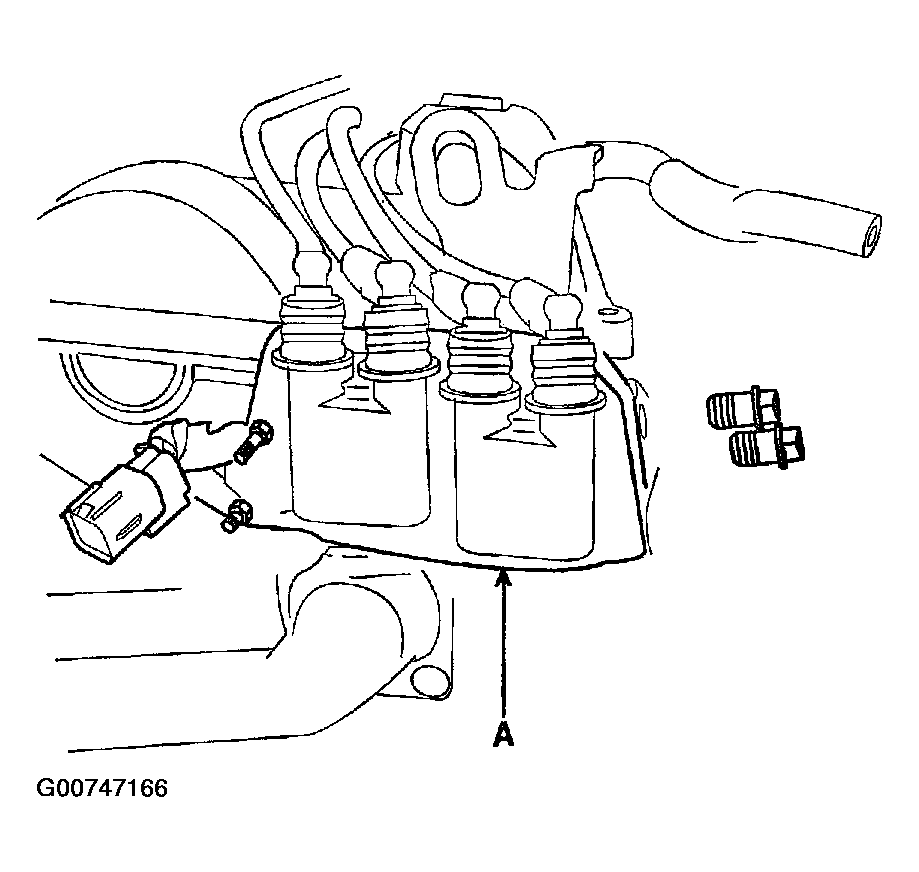

    Fig 1: Removing & Installing Ignition Coils
    G00747166Courtesy of HYUNDAI MOTOR CO.
