Home >> Hyundai >> 2004 >> Santa Fe Base, Automatic >> Repair and Diagnosis >> Transmission >> Clutch System >> General >> Specifications >> Notes

Clutch System: General: Specifications: Notes

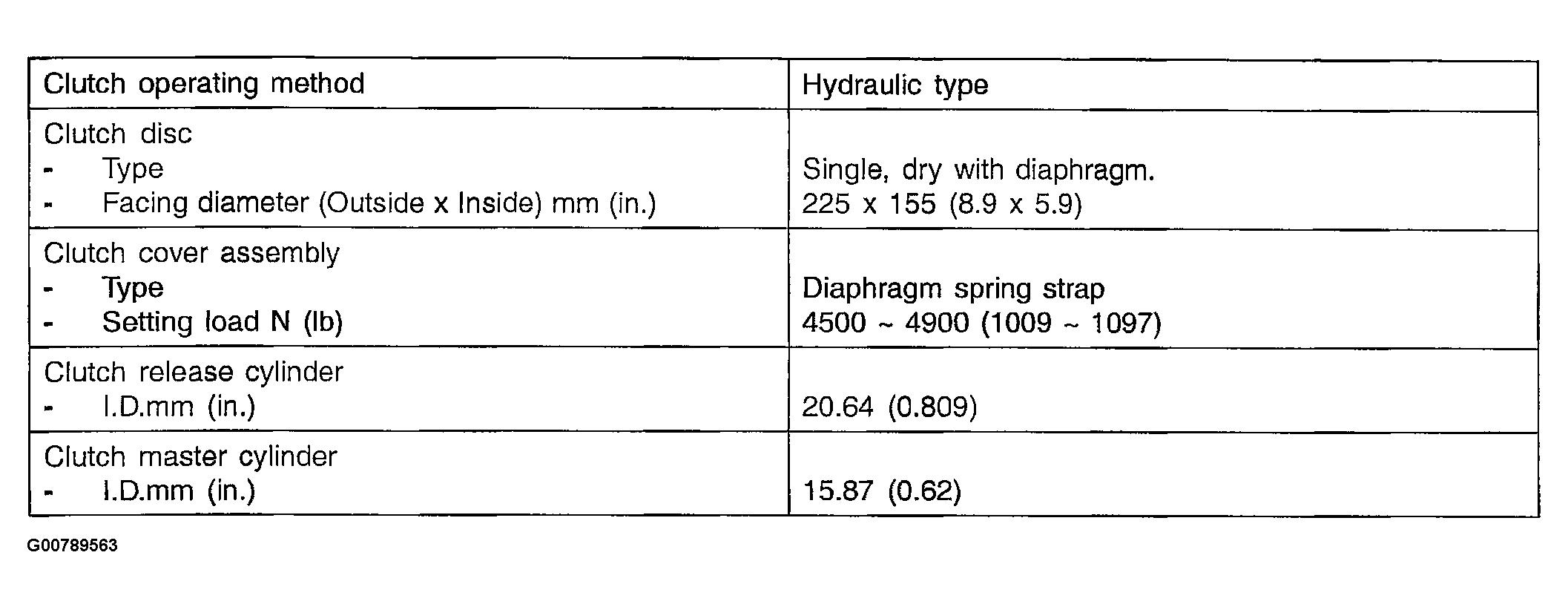

Fig 1: General Clutch Specification Table

G00789563

Courtesy of HYUNDAI MOTOR CO.
