Home >> Hyundai >> 2004 >> Santa Fe Base, Automatic >> Repair and Diagnosis >> Transmission >> Clutch System >> General >> Specifications >> Service Standard

Service Standard

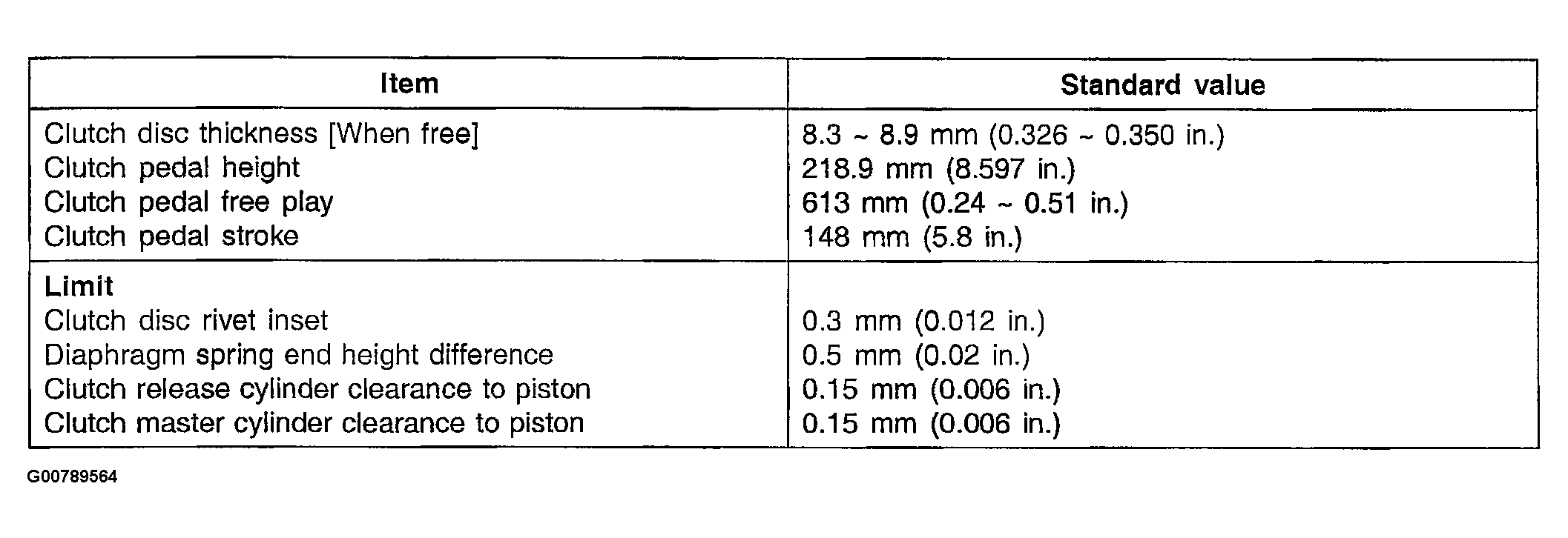

Fig 1: Clutch Service Standard Table

G00789564

Courtesy of HYUNDAI MOTOR CO.
