Crankshaft Position Sensor: Notes

The crankshaft position sensor is a Hall-effect sensor that senses the crank angle (piston position) of each cylinder and converts it into a pulse signal. Based on the input signal, the PCM computes the engine speed and controls the fuel injection timing and ignition timing.

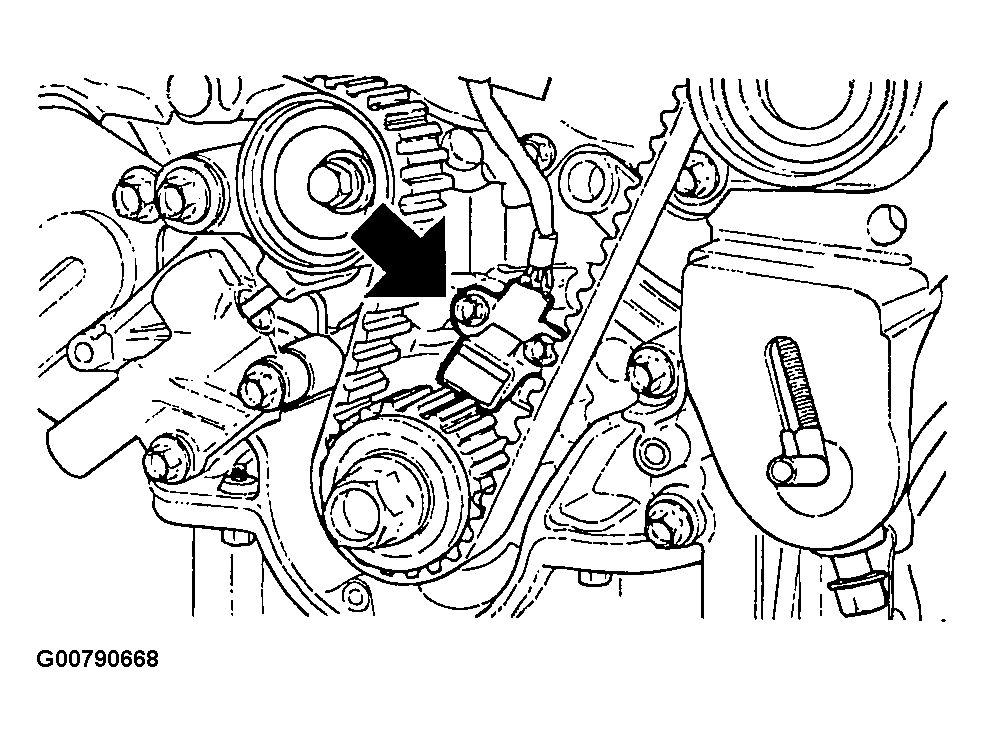

Fig 1: View Of Crankshaft Position Sensor

Courtesy of HYUNDAI MOTOR CO.
