Using Hi-Scan (Pro)

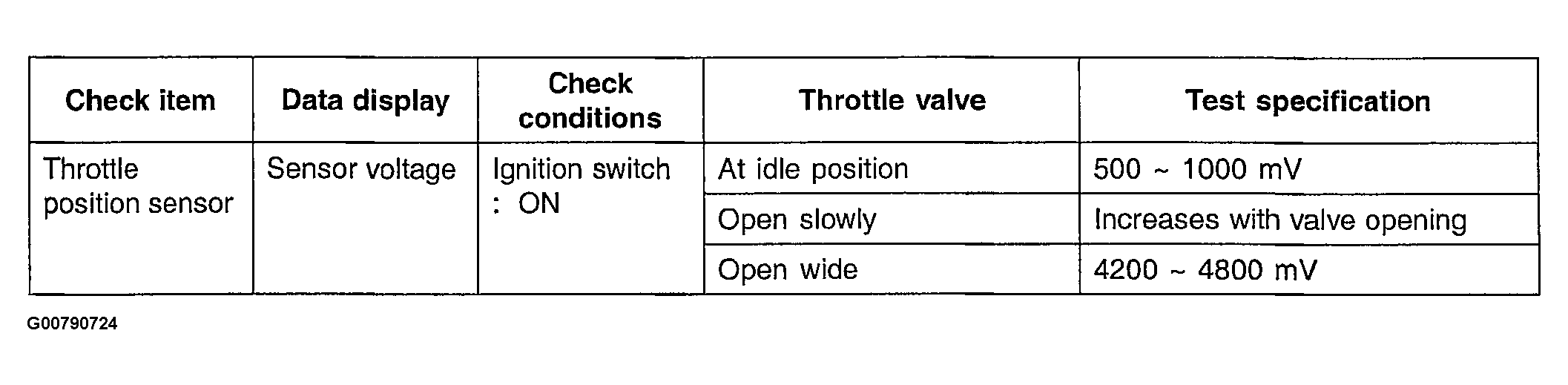

Fig 1: Throttle Position Sensor Check Item Table
G00790724Courtesy of HYUNDAI MOTOR CO.
