Automatic Transaxle: Removal

(F4A42 Model)

1. Remove the battery terminal and battery.
2. Remove the drain plug and drain the automatic transaxle fluid

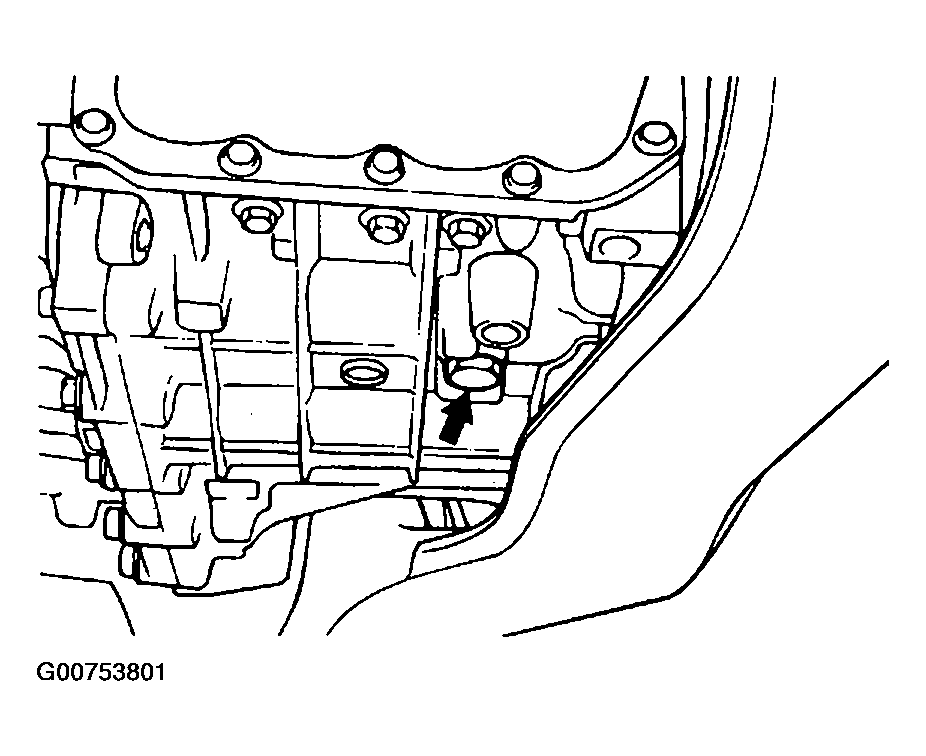

   Fig 1: Identifying Drain Plug

   Courtesy of HYUNDAI MOTOR CO.
3. Remove the air cleaner assembly.
4. Disconnect the speedometer sensor connector.
5. Disconnect the transaxle range switch connector, solenoid connector, and oil temperature sensor connector.
   Fig 2: Identifying TR Switch Connector

   Courtesy of HYUNDAI MOTOR CO.
6. Remove the oil cooler hose.

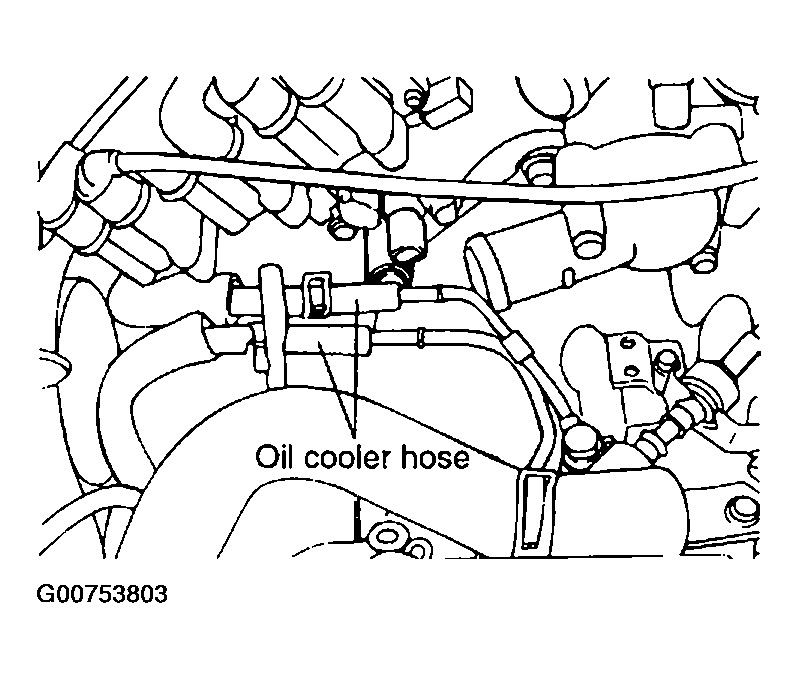

   Fig 3: Identifying Oil Cooler Hose

   Courtesy of HYUNDAI MOTOR CO.
7. Remove the control cable.

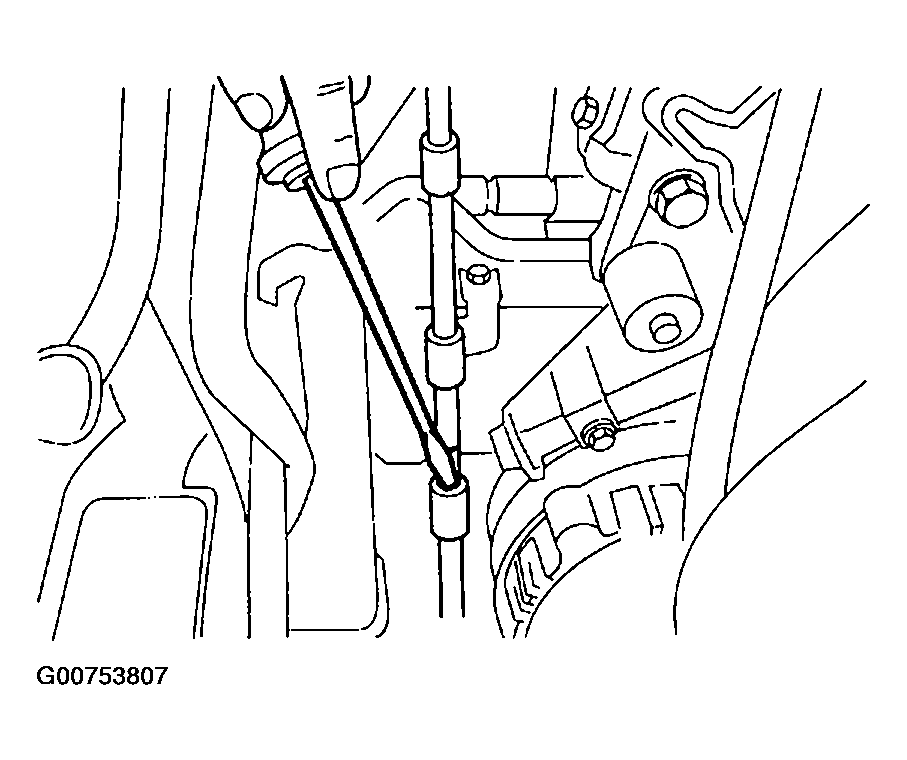

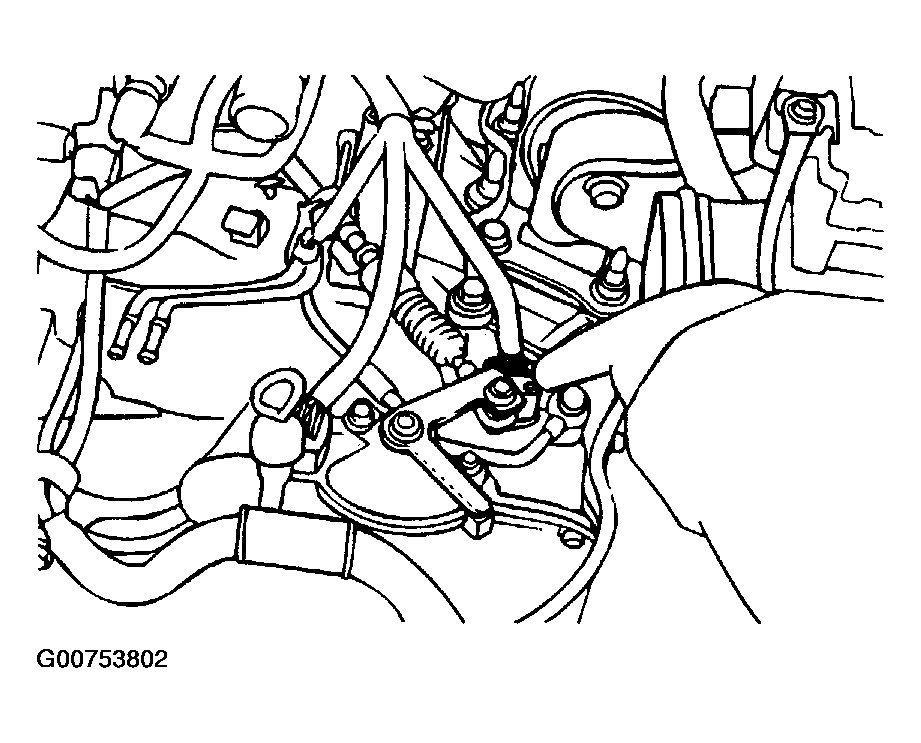

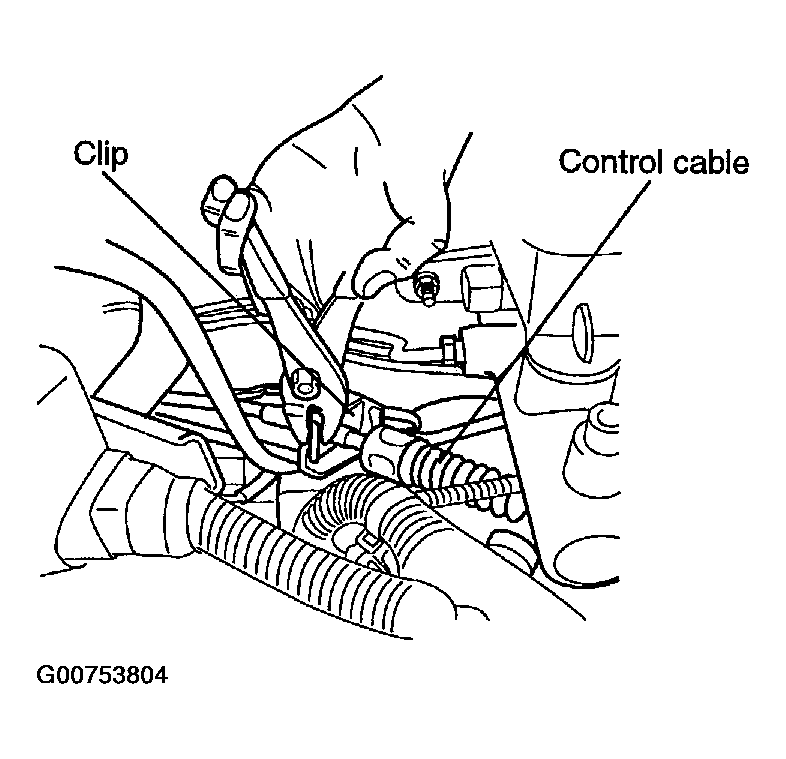

   Fig 4: Identifying Control Cable & Clip

   Courtesy of HYUNDAI MOTOR CO.
8. Remove the steering u-joint bolt and return tube mounting bolts.
   NOTE: Mark a mating line on the steering column universal joint and the gear box before disassembling to make the installation easier.

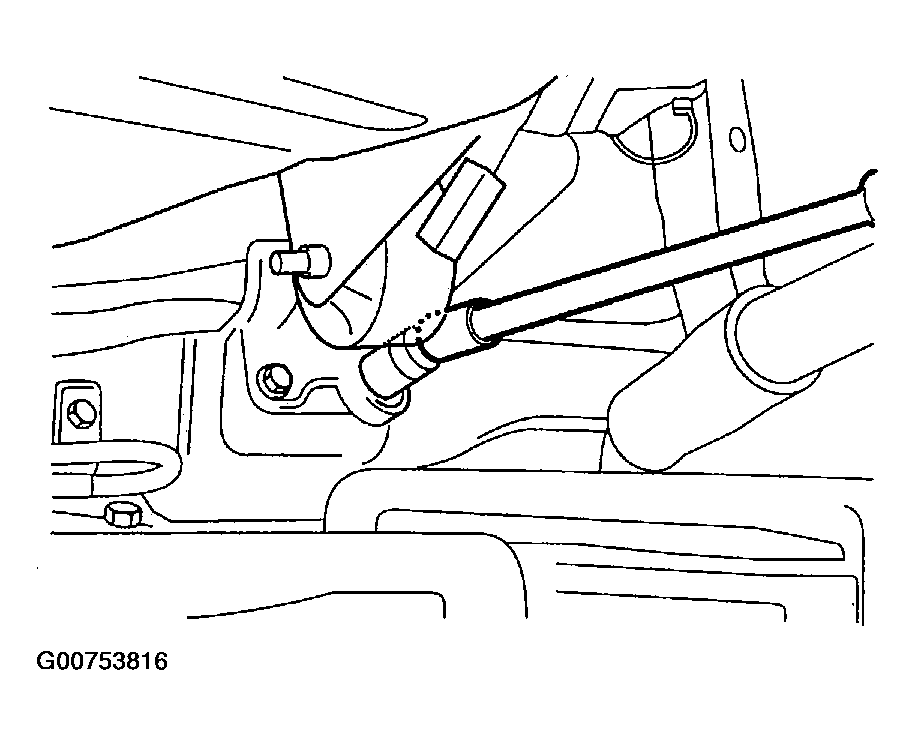

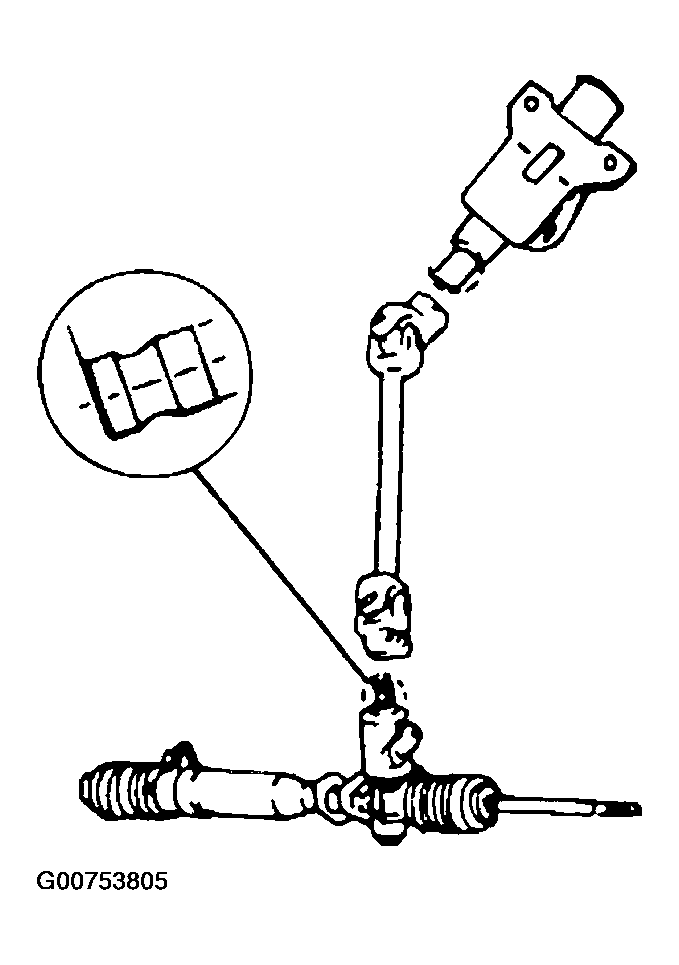

   Fig 5: Identifying Steering Column Shaft Universal Joint

   Courtesy of HYUNDAI MOTOR CO.
9. Separate the power steering oil pump hose.

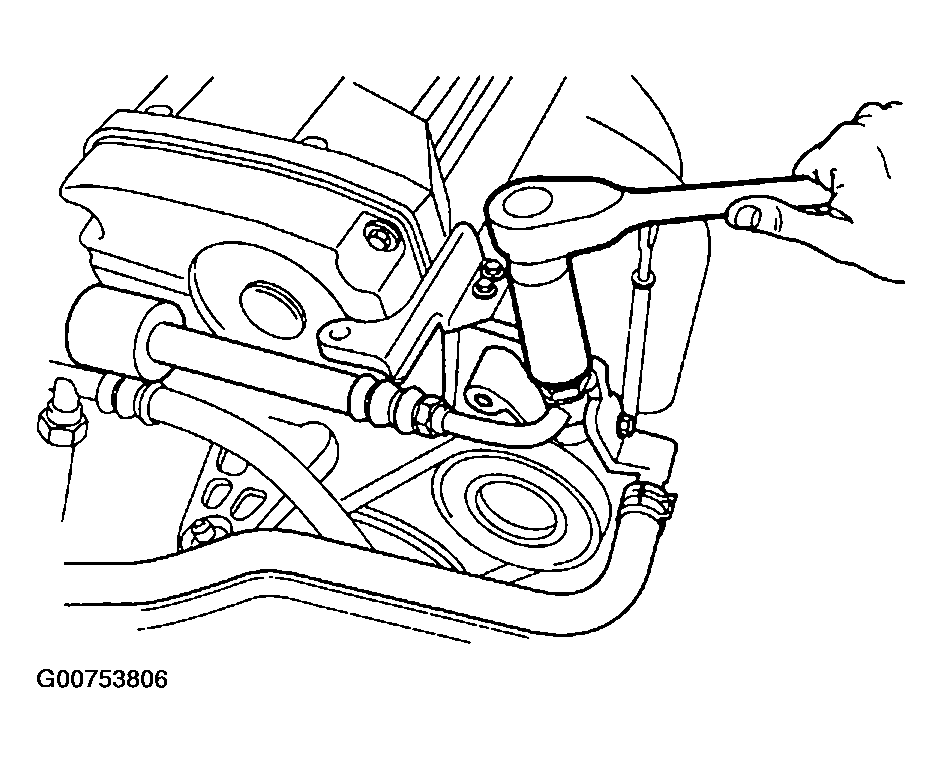

   Fig 6: Separating Power Steering Oil Pump Hose

   Courtesy of HYUNDAI MOTOR CO.
10. Separate the power steering return hose.
    Fig 7: Separating Power Steering Return Hose

    Courtesy of HYUNDAI MOTOR CO.
11. Remove the upper connecting transaxle bolt.
12. Attach the special tools, engine support fixture, (J28467-B, J28467-125) to the engine hooks.
13. Remove the tire and caliper

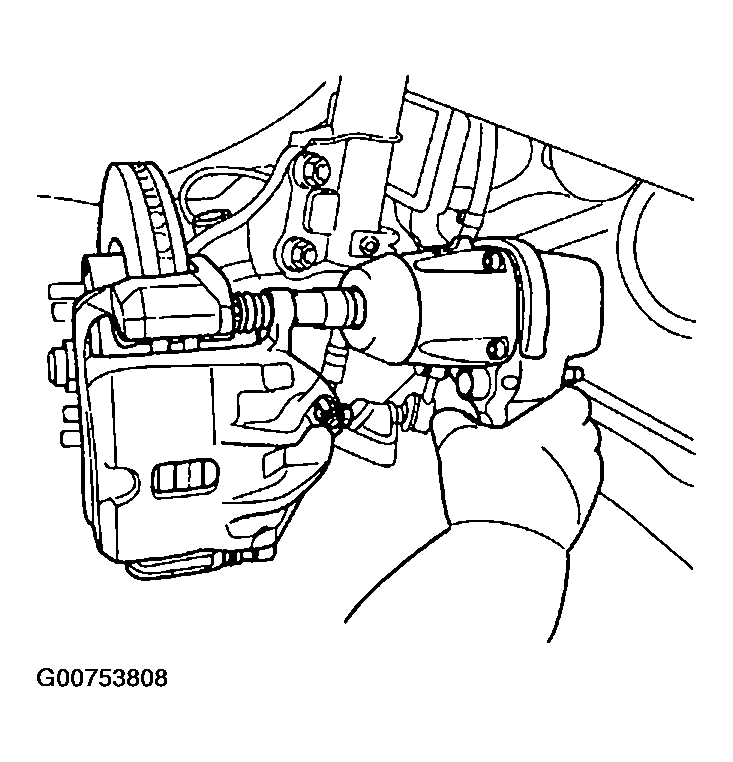

    Fig 8: Removing Brake Caliper

    Courtesy of HYUNDAI MOTOR CO.
14. Separate the tie rod end.

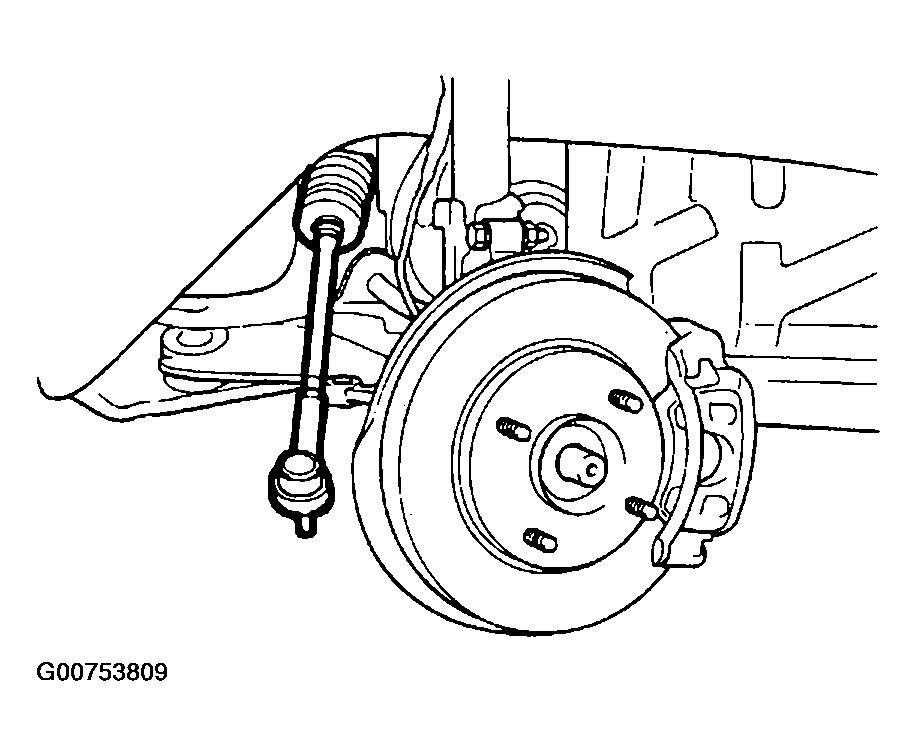

    Fig 9: Separating Tie Rod End

    Courtesy of HYUNDAI MOTOR CO.
15. Remove the wheel speed sensor and the knuckle mounting bolt.

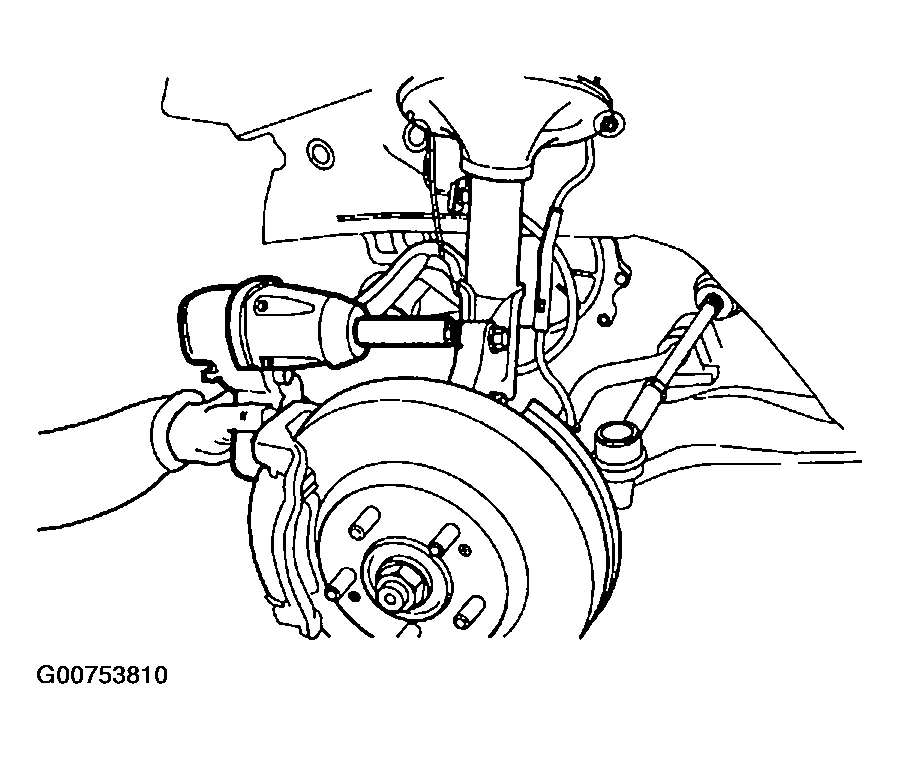

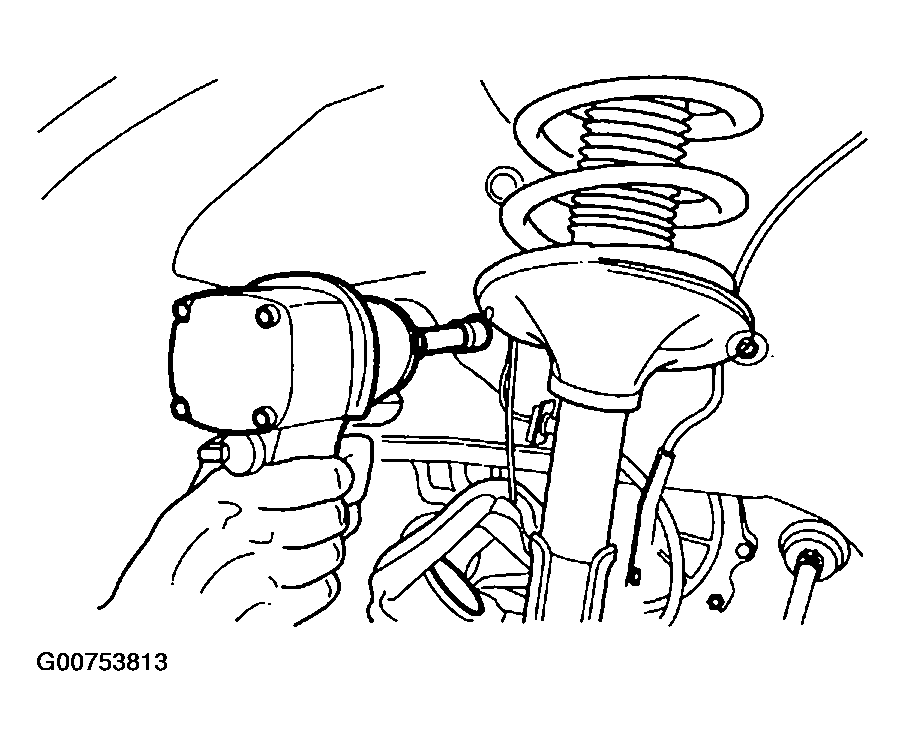

    Fig 10: Removing Wheel Knuckle Bolt

    Courtesy of HYUNDAI MOTOR CO.
16. Remove the transaxle mounting bracket.
    1. Insulator bolt

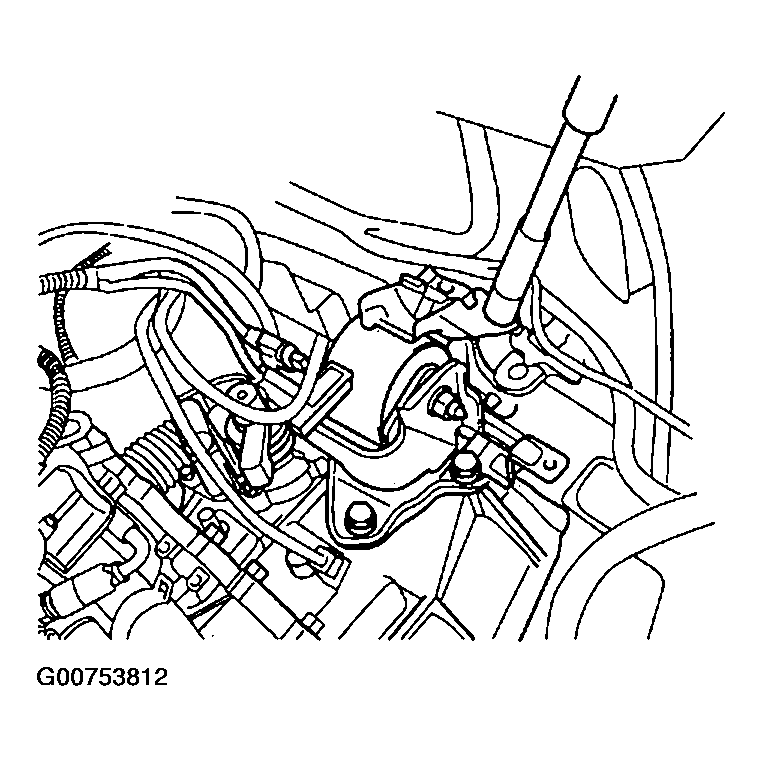

       Fig 11: Removing Transaxle Mounting Bracket Insulator Bolt

       Courtesy of HYUNDAI MOTOR CO.
    2. Body mounting bolt (Upper)

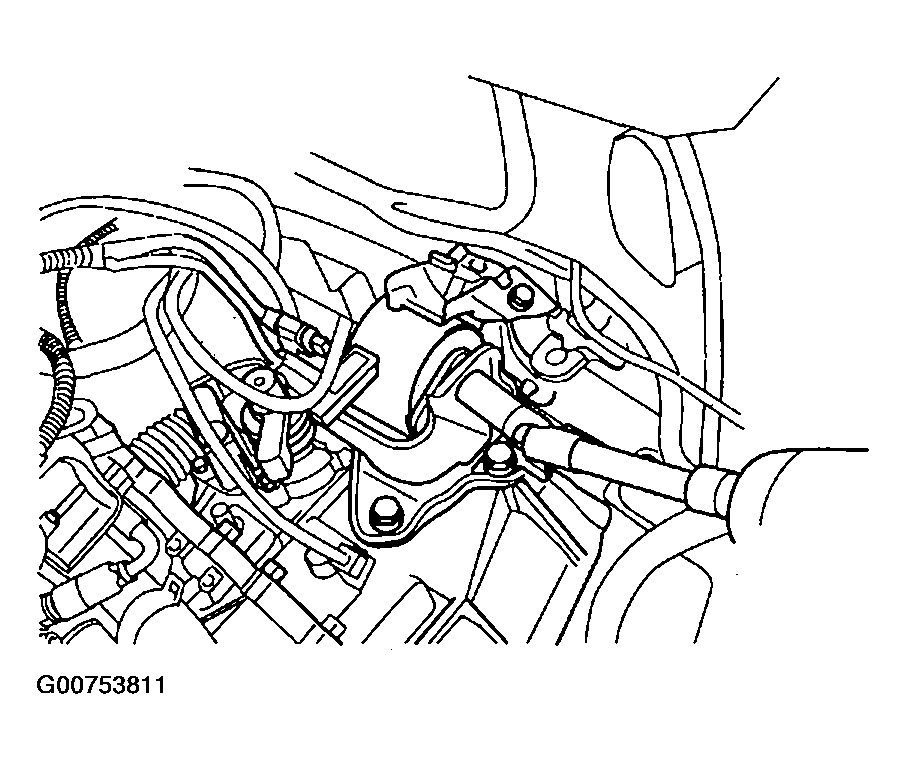

       Fig 12: Removing Upper Body Mounting Bolt

       Courtesy of HYUNDAI MOTOR CO.
    3. Body mounting bolt (Side)
       Fig 13: Removing Side Body Mounting Bolt

       Courtesy of HYUNDAI MOTOR CO.
    4. Transaxle side mounting bolt.

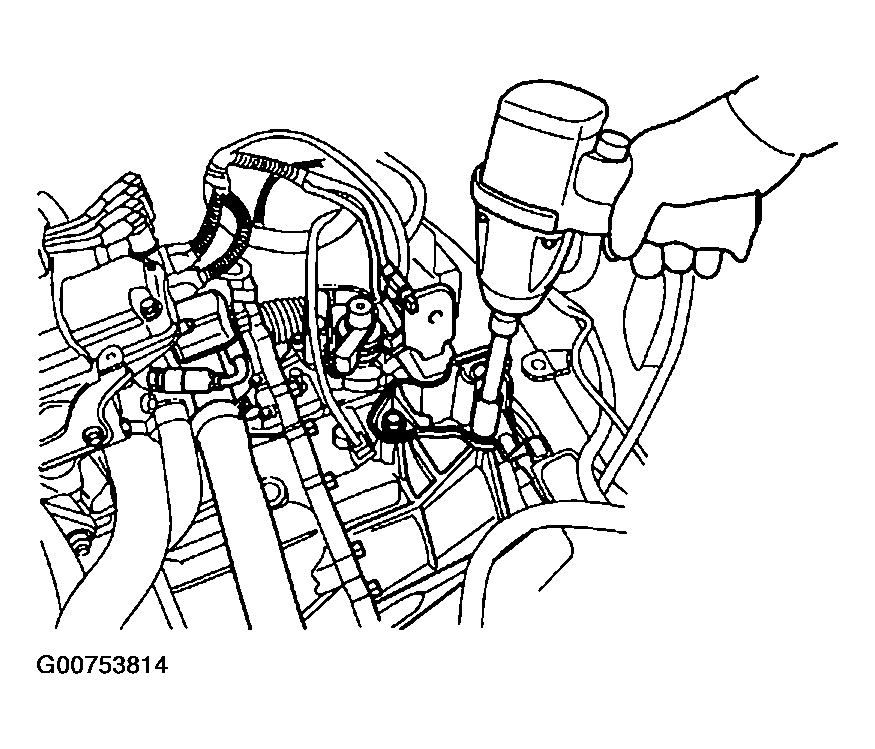

       Fig 14: Removing Transaxle Side Mounting Bolt

       Courtesy of HYUNDAI MOTOR CO.
17. Remove the front roll stopper.
    1. Insulator bolt

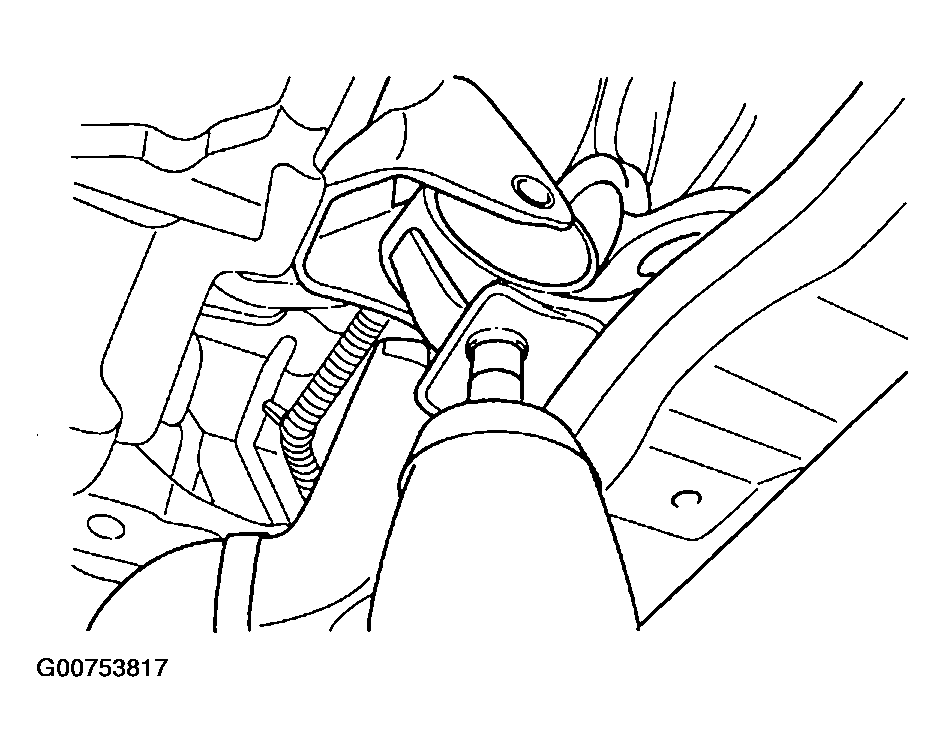

       Fig 15: Removing Front Roll Stopper Insulator Bolt

       Courtesy of HYUNDAI MOTOR CO.
    2. Stopper bolt (Upper)

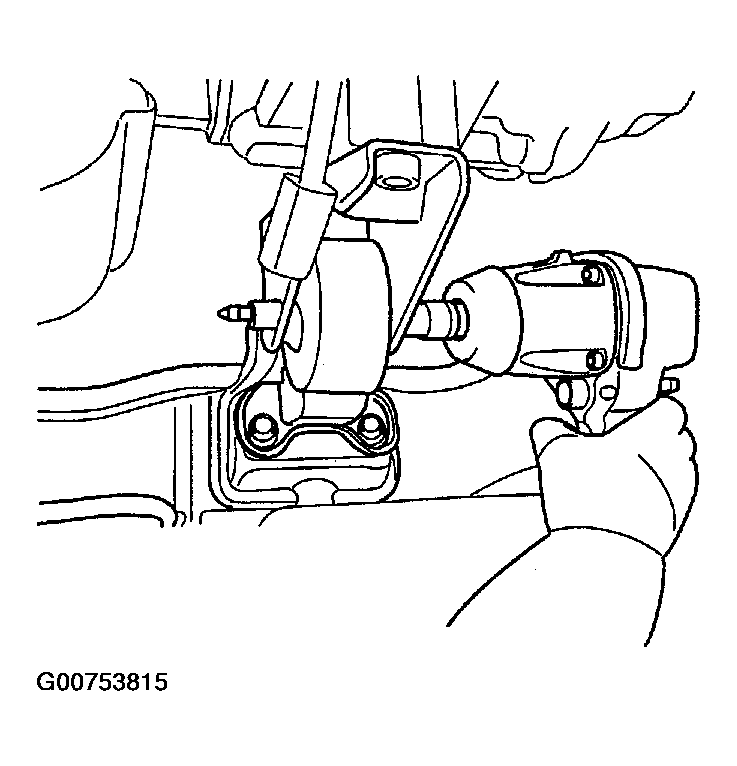

       Fig 16: Removing Front Roll Stopper Upper Stopper Bolt

       Courtesy of HYUNDAI MOTOR CO.
    3. Stopper bolt (Lower)
       Fig 17: Removing Front Roll Stopper Lower Stopper Bolt

       Courtesy of HYUNDAI MOTOR CO.
18. Remove the rear roll stopper.
    1. Insulator bolt

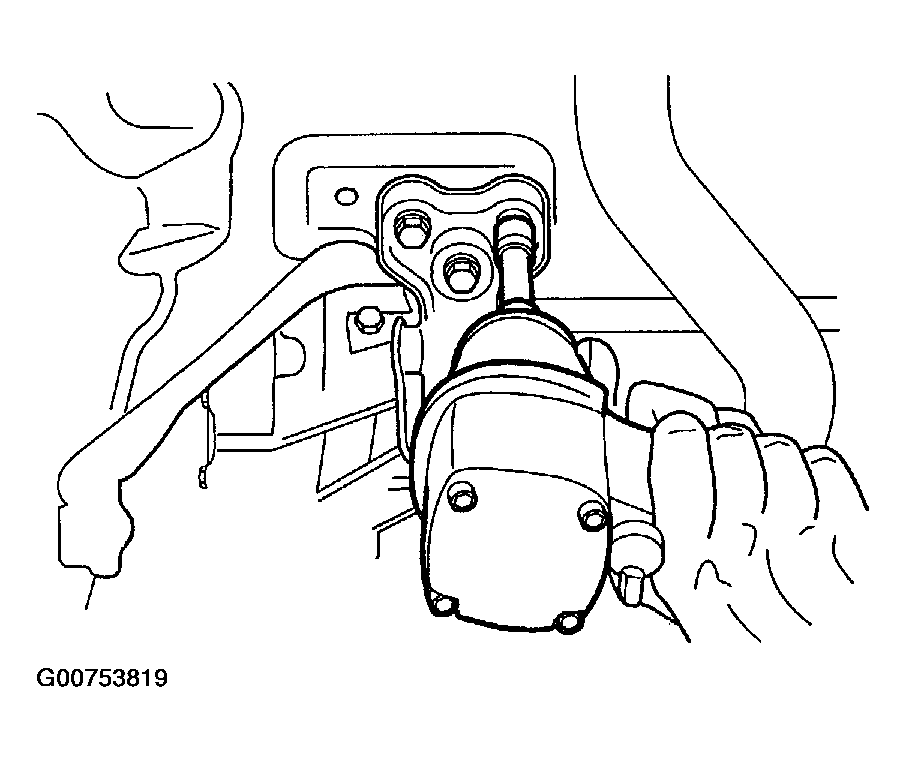

       Fig 18: Removing Rear Roll Stopper Insulator Bolt

       Courtesy of HYUNDAI MOTOR CO.
    2. Stopper bolt

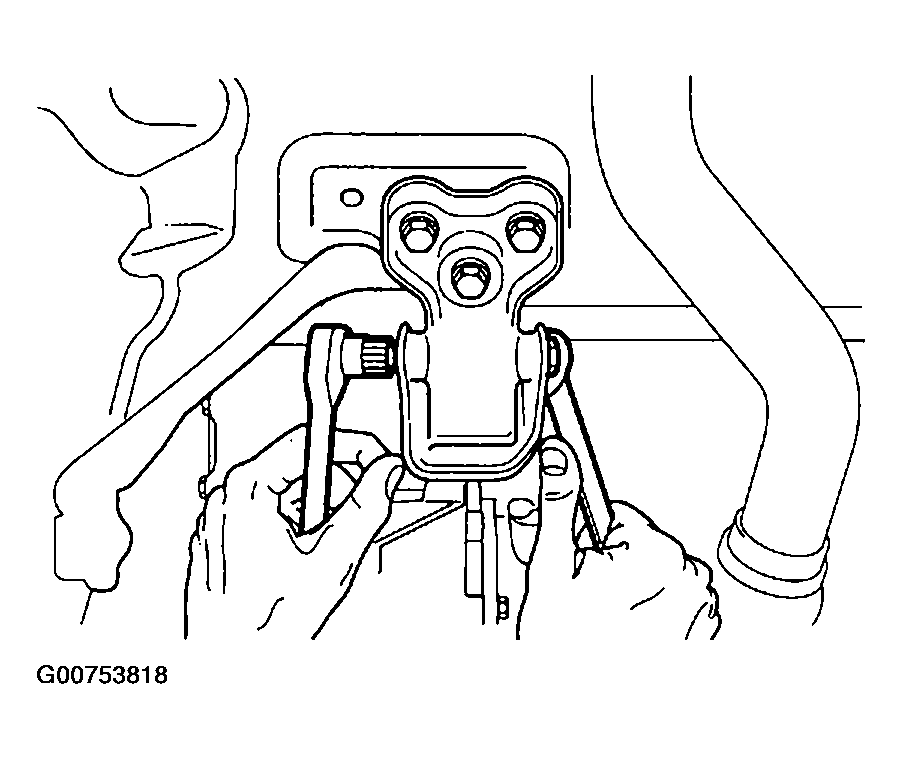

       Fig 19: Removing Rear Roll Stopper Bolt

       Courtesy of HYUNDAI MOTOR CO.
19. Remove the drive shaft.
20. Remove the subframe mounting bolts and the subframe.
    Fig 20: Removing Subframe Mounting Bolts

    Courtesy of HYUNDAI MOTOR CO.
21. Install the jack under the transaxle assembly.

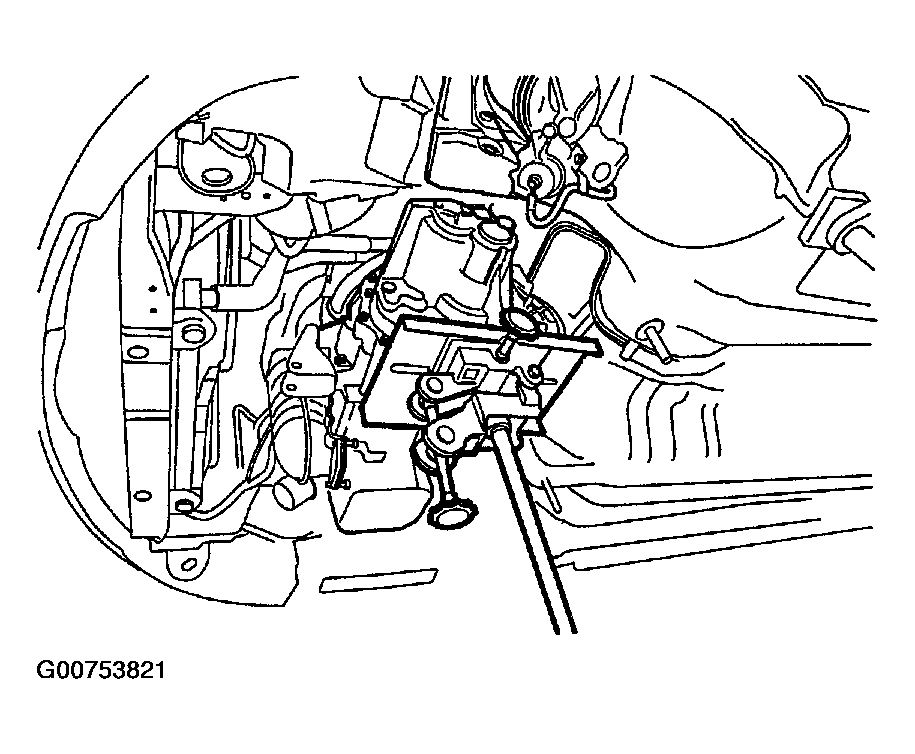

    Fig 21: Installing Jack Under Transaxle Assembly

    Courtesy of HYUNDAI MOTOR CO.
22. Remove the automatic transaxle mounting lower bolts.

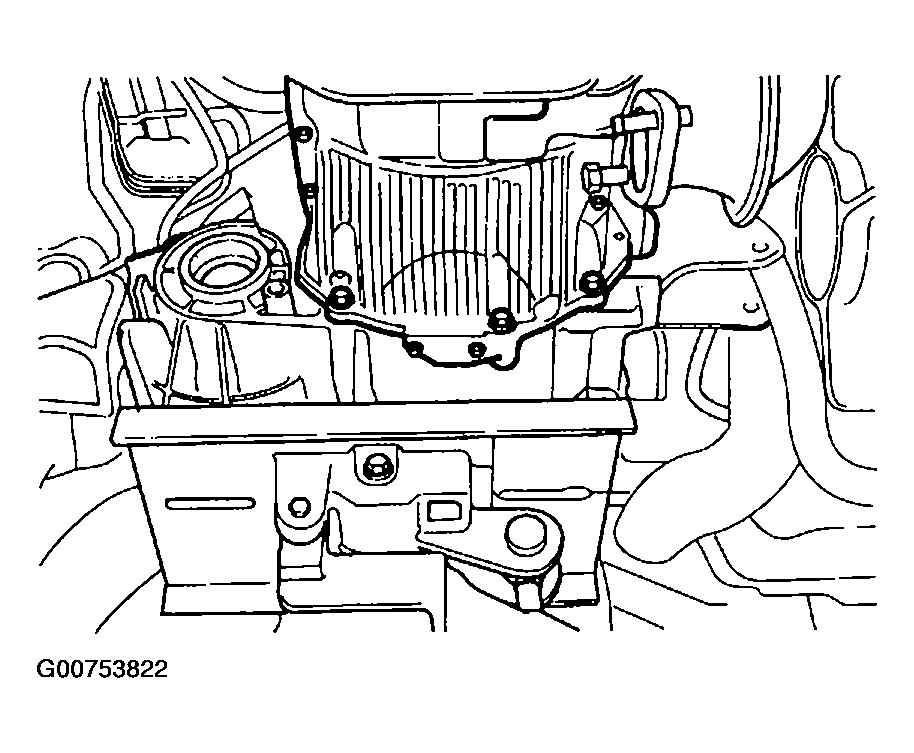

    Fig 22: Identifying Lower Transaxle Mounting Bolts

    Courtesy of HYUNDAI MOTOR CO.
23. Remove the engine to automatic transaxle bolts.
24. Remove the automatic transaxle assembly by jack.
    CAUTION:

    1. Engine and transmission mounting insulators should be installed as specified orders.
    2. Mounting bracket installation procedures.
       1. Engine mounting bracket.
       2. T/M mounting bracket.
       3. Rear roll stopper mounting bracket.
       4. Front roll stopper mounting bracket.
    3. When installing the front roll stopper mounting bracket, be especially careful not to crush the insulator. If crushed, idle vibration may occur.
