HECU Block Diagram

  1. ABS ECU BLOCK DIAGRAM

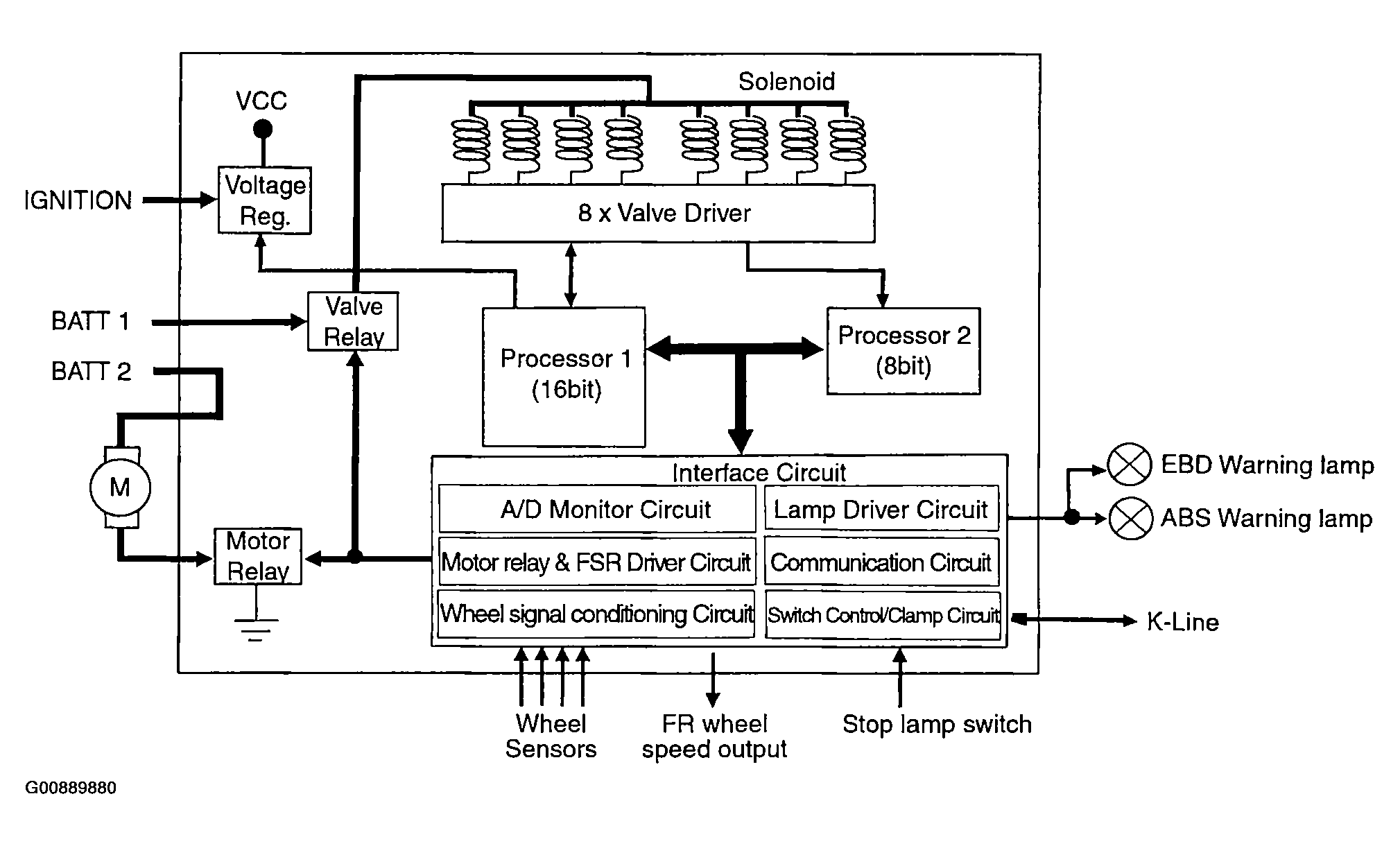

    Fig 1: ABS ECU Block Diagram
    G00889880Courtesy of HYUNDAI MOTOR CO.
  2. TCS ECU BLOCK DIAGRAM

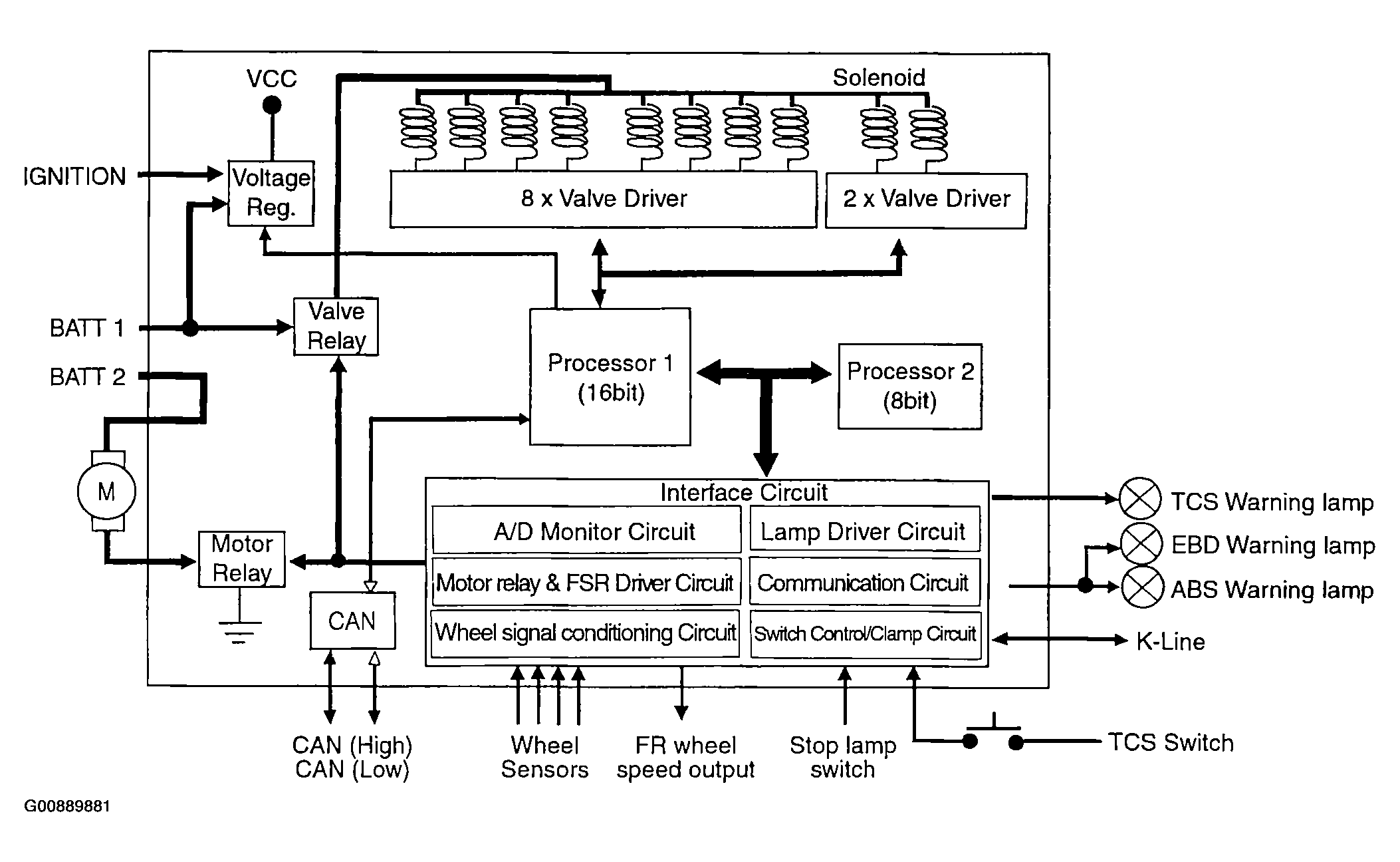

Fig 2: TCS ECU Block Diagram
G00889881Courtesy of HYUNDAI MOTOR CO.
