Home >> Hyundai >> 2004 >> Tiburon Base, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Anti-Lock Braking System Control Module >> Components >> HECU

Anti-Lock Braking System Control Module: Components: HECU

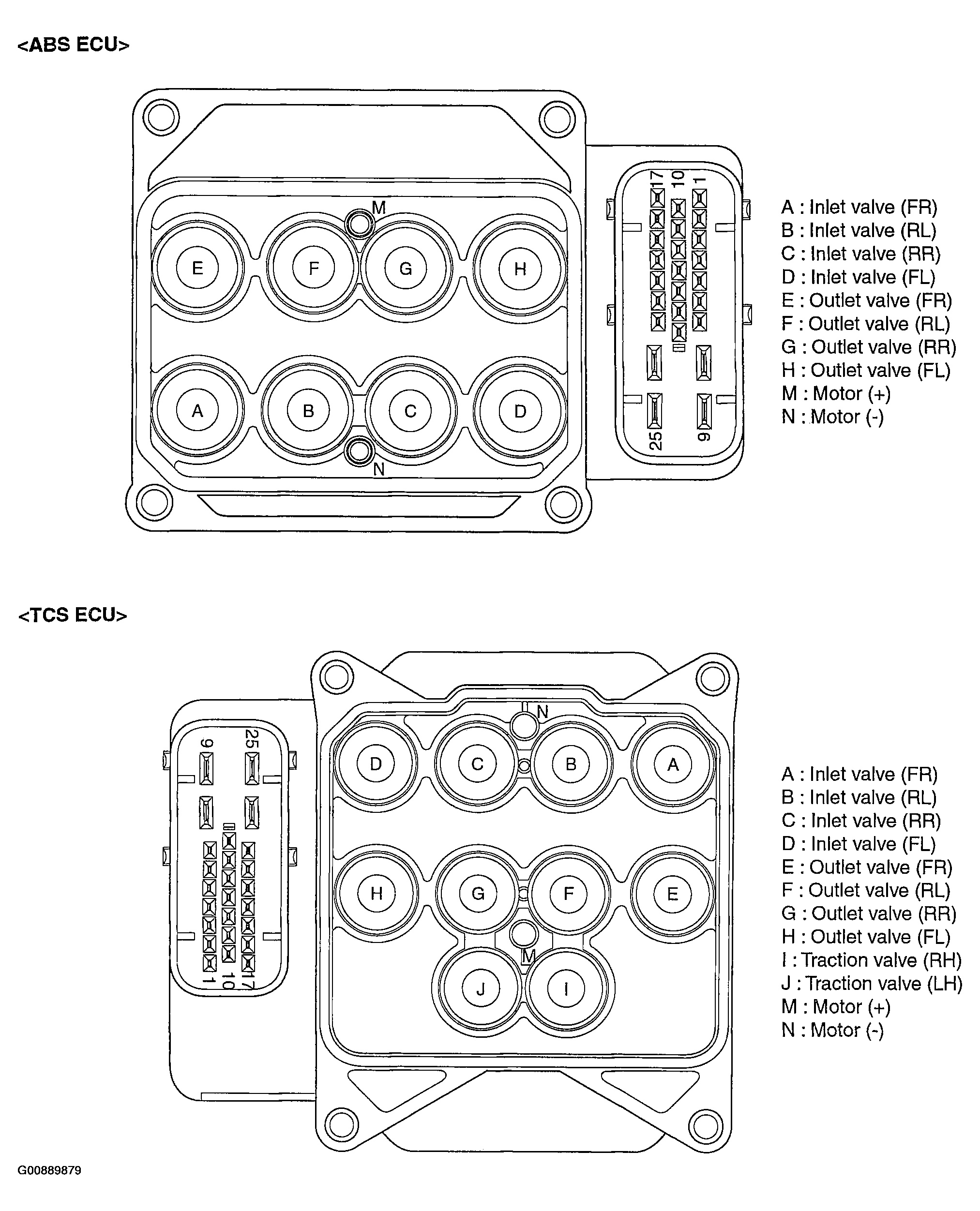

Fig 1: Identifying HECU

G00889879

Courtesy of HYUNDAI MOTOR CO.
