Home >> Hyundai >> 2004 >> Tiburon Base, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Anti-Lock Braking System Control Module >> Components >> Notes

Anti-Lock Braking System Control Module: Components: Notes

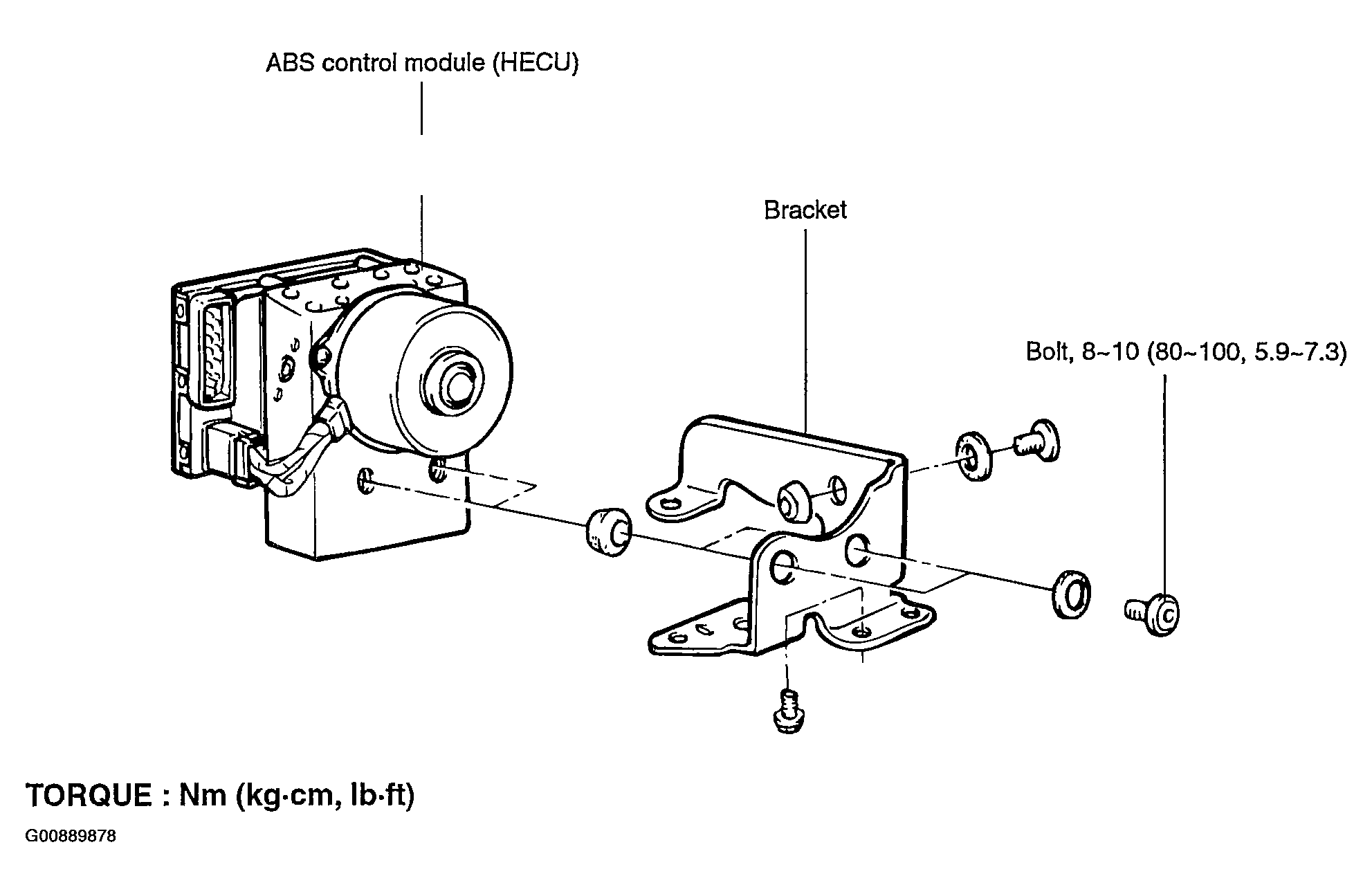

Fig 1: Identifying Anti-Lock Braking System Control Module Components

G00889878

Courtesy of HYUNDAI MOTOR CO.
