Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | In right front corner of engine compartment. See Figure . |

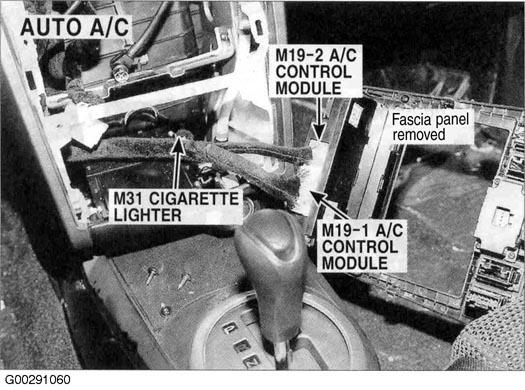

| A/C Control Module | Below center of dash, forward of shift lever. See Figure . |

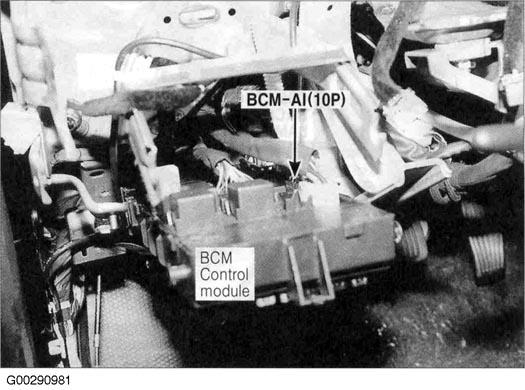

| Body Control Module | At lower left side of dash. See Figure . |

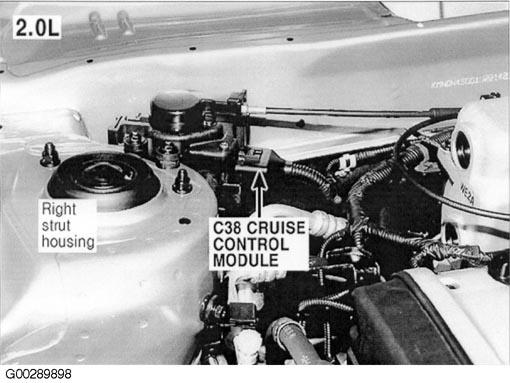

| Cruise Control Module (2.0L) | On right side of firewall, behind strut tower. See Figure . |

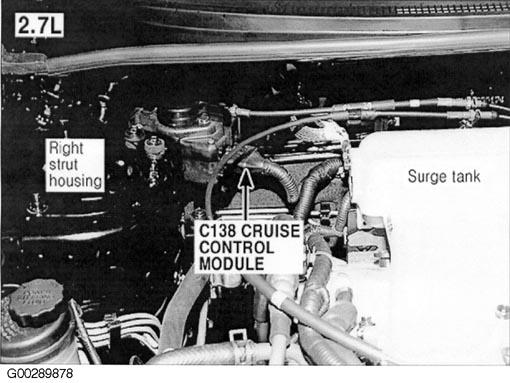

| Cruise Control Module (2.7L) | On right side of firewall, behind strut tower. See Figure . |

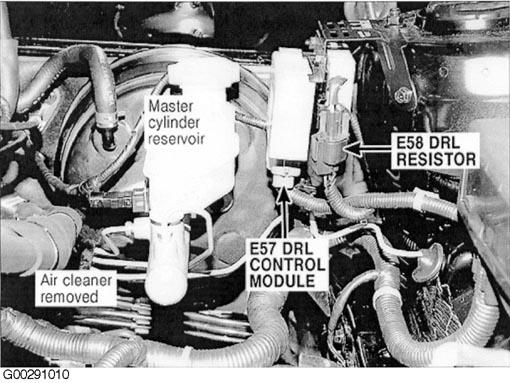

| DRL Control Module | On left front inner fender panel. See Figure . |

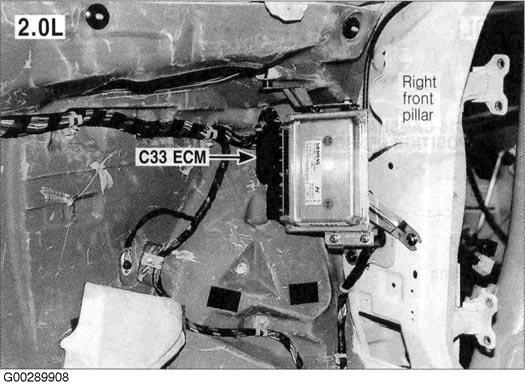

| ECM (2.0L) | Behind right side of dash, above kick panel. See Figure . |

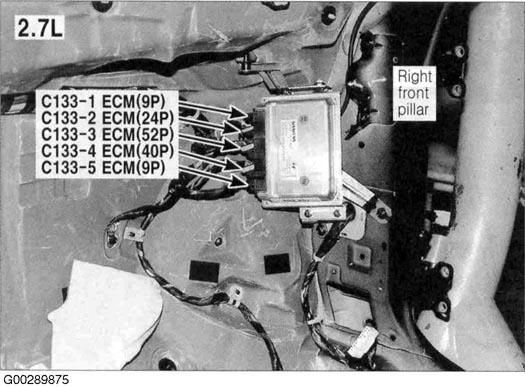

| ECM (2.7L) | Behind right side of dash, above kick. See Figure . |

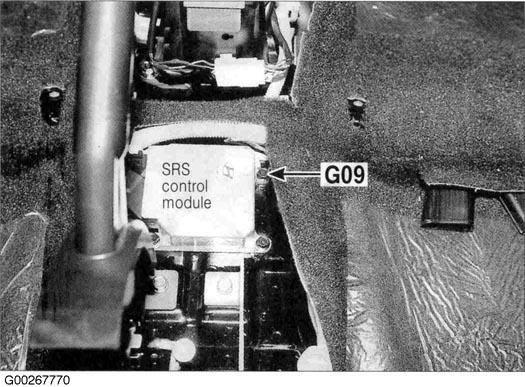

| SRS Control Module | Under rear console. See Figure . |

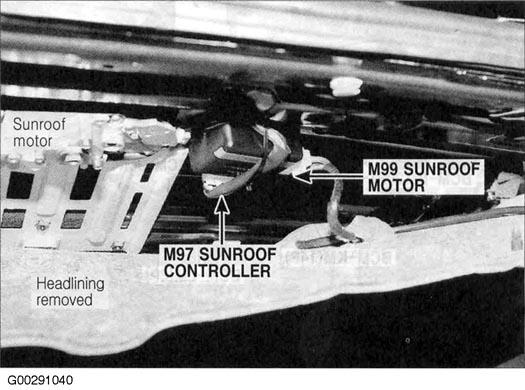

| Sunroof Controller | Front of sunroof opening. See Figure . |

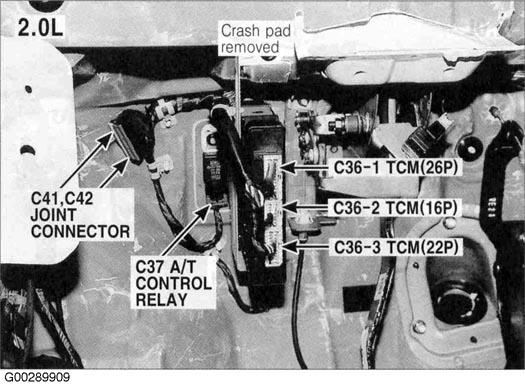

| TCM (2.0L) | Behind left side of dash. See Figure . |

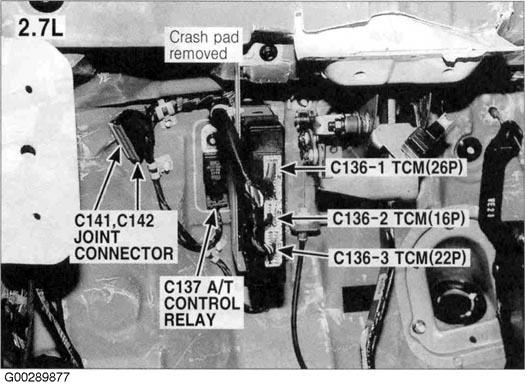

| TCM (2.7L) | Behind left side of dash. See Figure . |
