Home >> Hyundai >> 2004 >> Tiburon Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (2.0L) >> DTC Troubleshooting Procedures >> DTC P0121: Throttle Position Sensor Circuit Range/Performance Problem >> Specifications

DTC P0121: Throttle Position Sensor Circuit Range/Performance Problem: Specifications

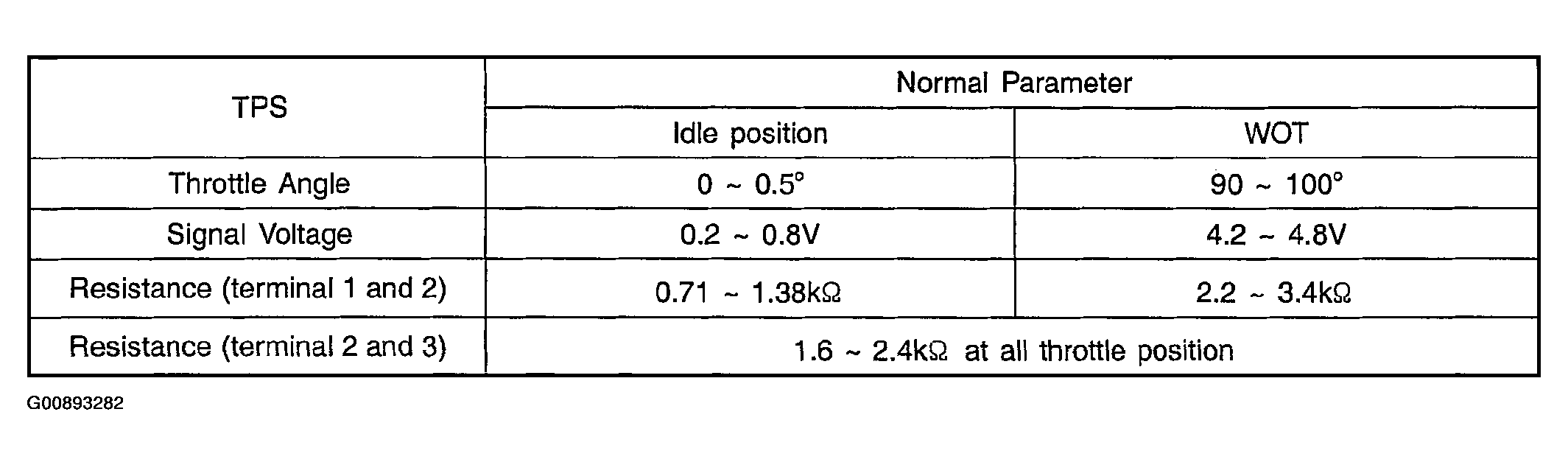

Fig 1: Specifications

G00893282

Courtesy of HYUNDAI MOTOR CO.
