INJ Pulse

Should increase when depressing the accelerator pedal and should decrease when the pedal is released.

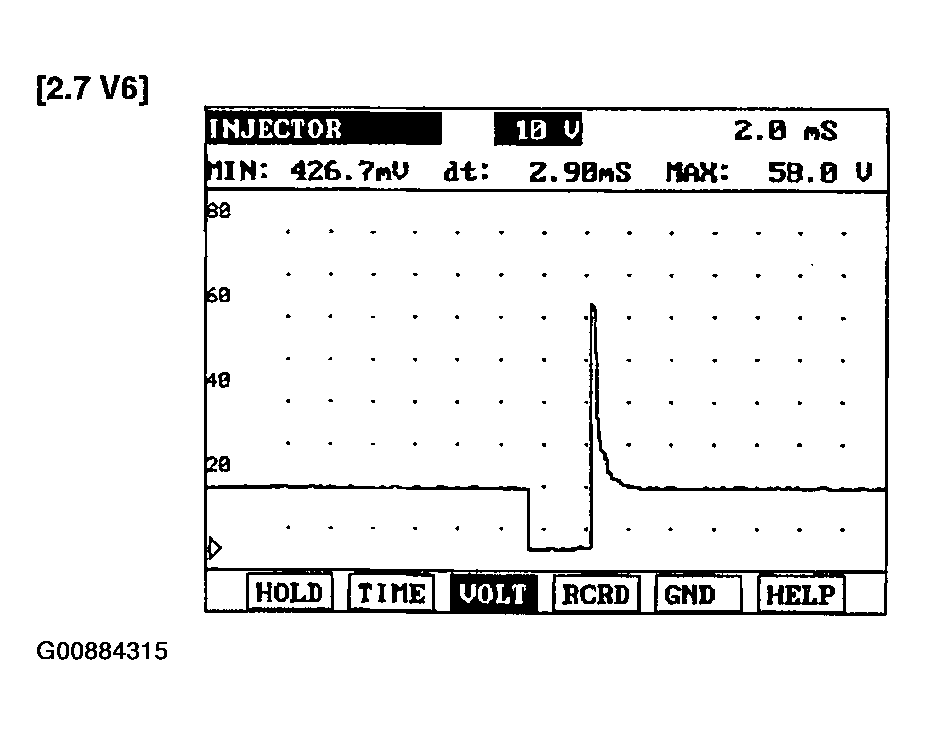

Fig 1: INJ Pulse Wave Form
G00884315Courtesy of HYUNDAI MOTOR CO.
