Rectifier Assembly Test
NOTE:
On Digital Volt-Ohmmeters (DVOM), it will be necessary to select diode test function.

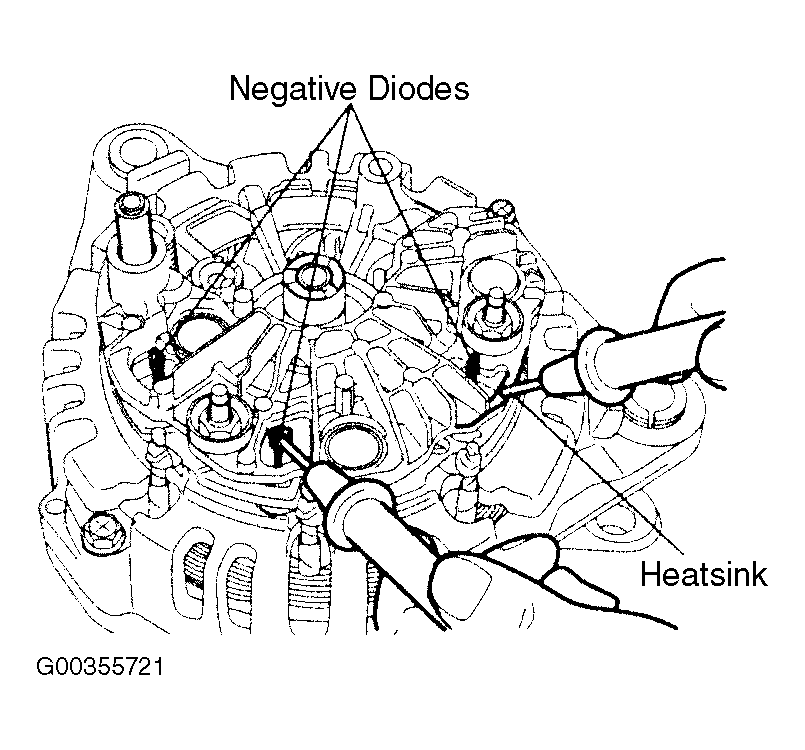

Check for continuity between the negative diode and heat sink. See Fig 1
. If there is continuity replace generator. See GENERATOR
under REMOVAL & INSTALLATION.
Courtesy of HYUNDAI MOTOR CO.
