Using Hi-Scan (Pro)

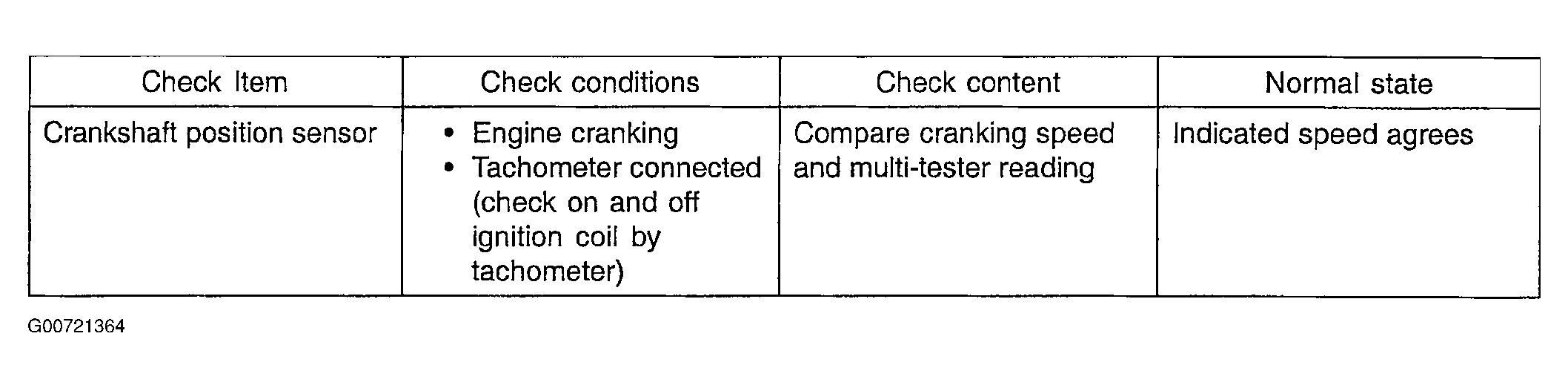

Fig 1: Crankshaft Position Sensor Conditions Table

G00721364

Courtesy of HYUNDAI MOTOR CO.

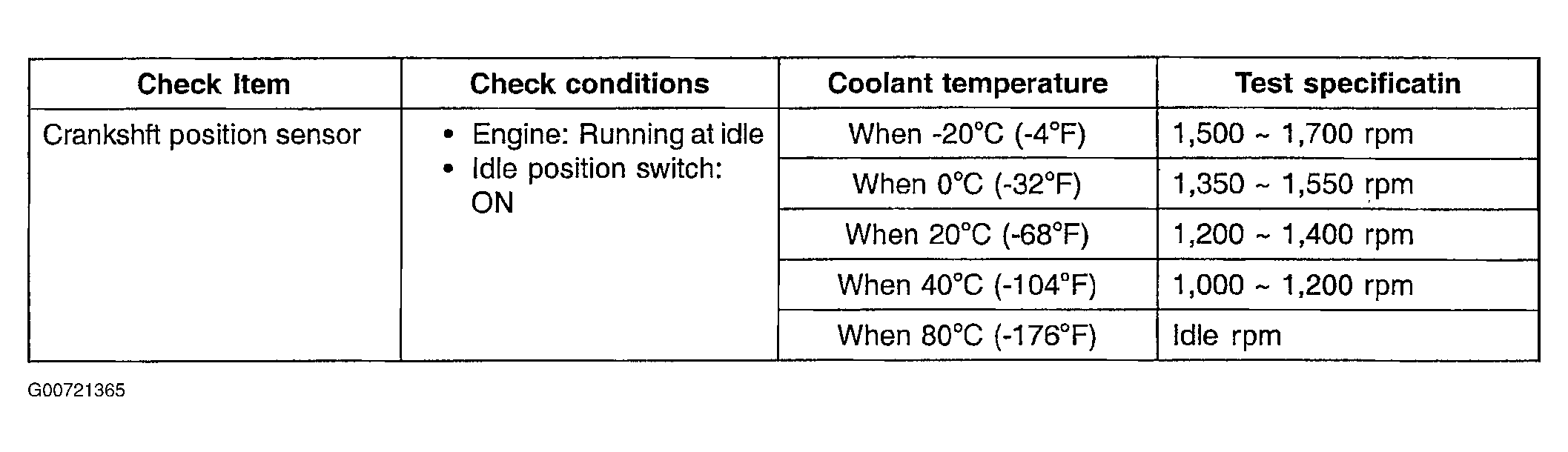

Fig 2: Crankshaft Position Sensor Specification Table

G00721365

Courtesy of HYUNDAI MOTOR CO.
