Using Voltmeter

  1. Disconnect the APS connector.
  2. Check the continuity between terminal 4 and sensor ground.

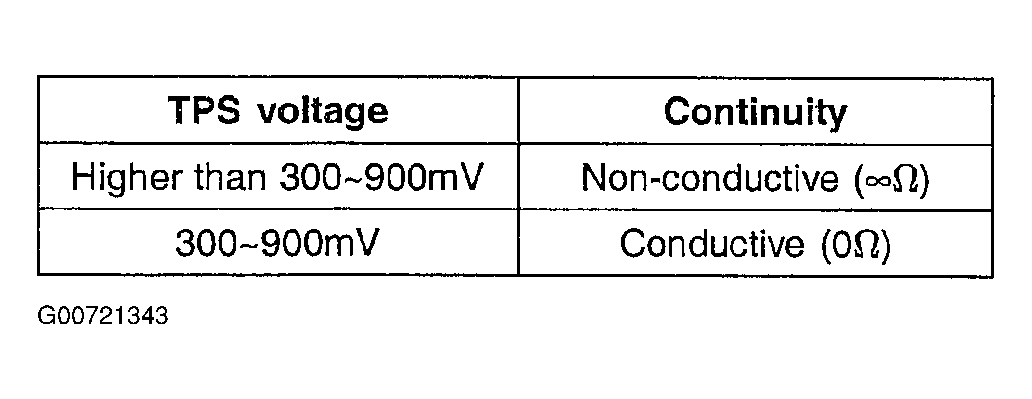

    Fig 1: Idle Switch Voltage/Continuity Table
    G00721343Courtesy of HYUNDAI MOTOR CO.
  3. If out of specification, replace the throttle position sensor.

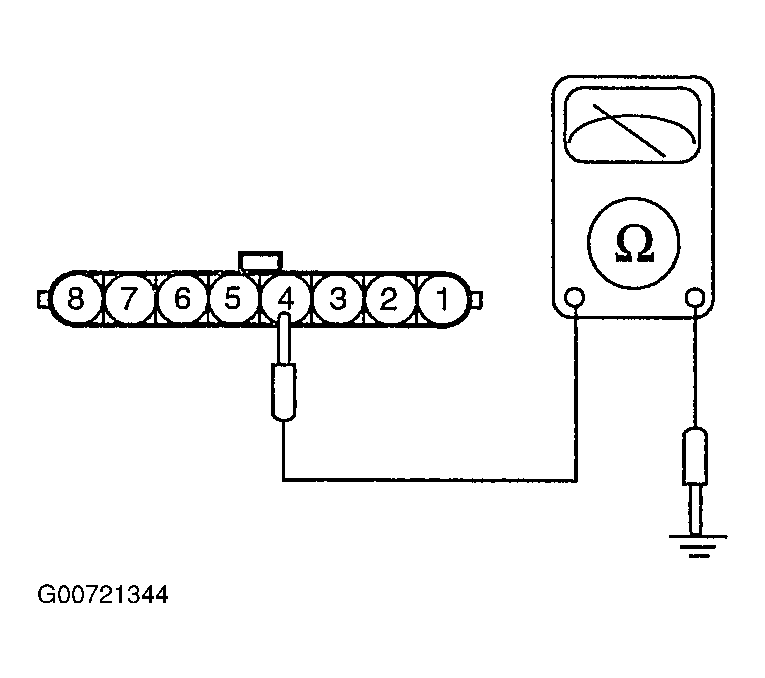

    Fig 2: Checking Idle Switch Continuity
    G00721344Courtesy of HYUNDAI MOTOR CO.
