Harness Inspection Procedures

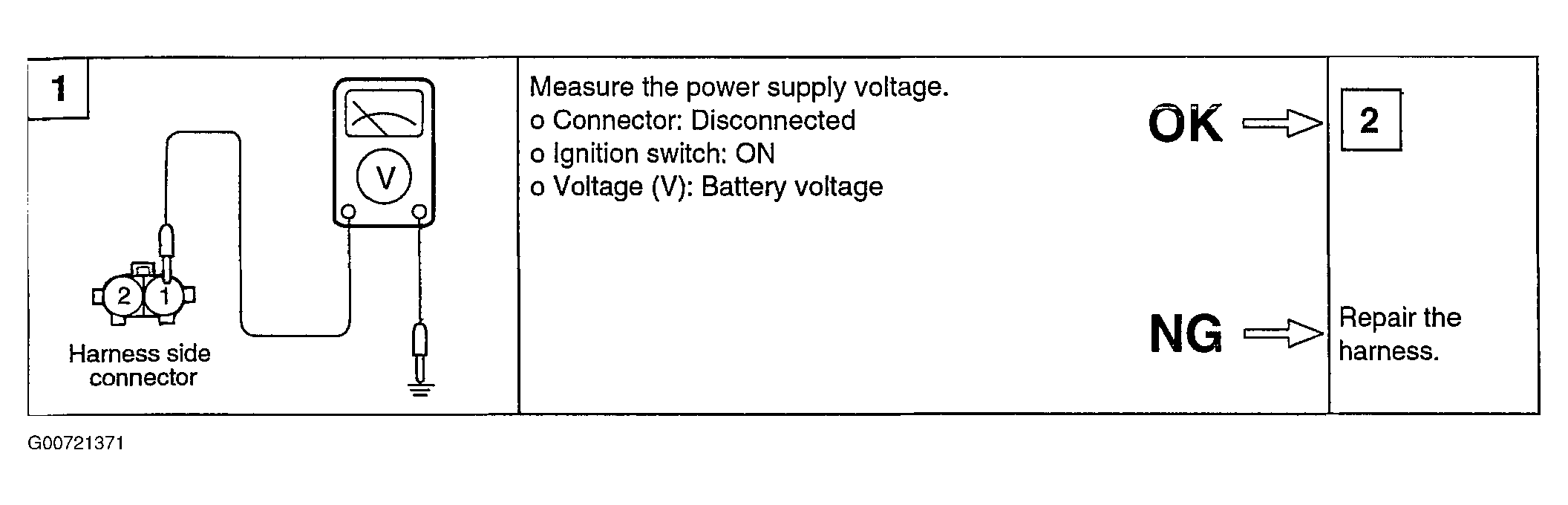

Fig 1: Checking Injector Harness (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

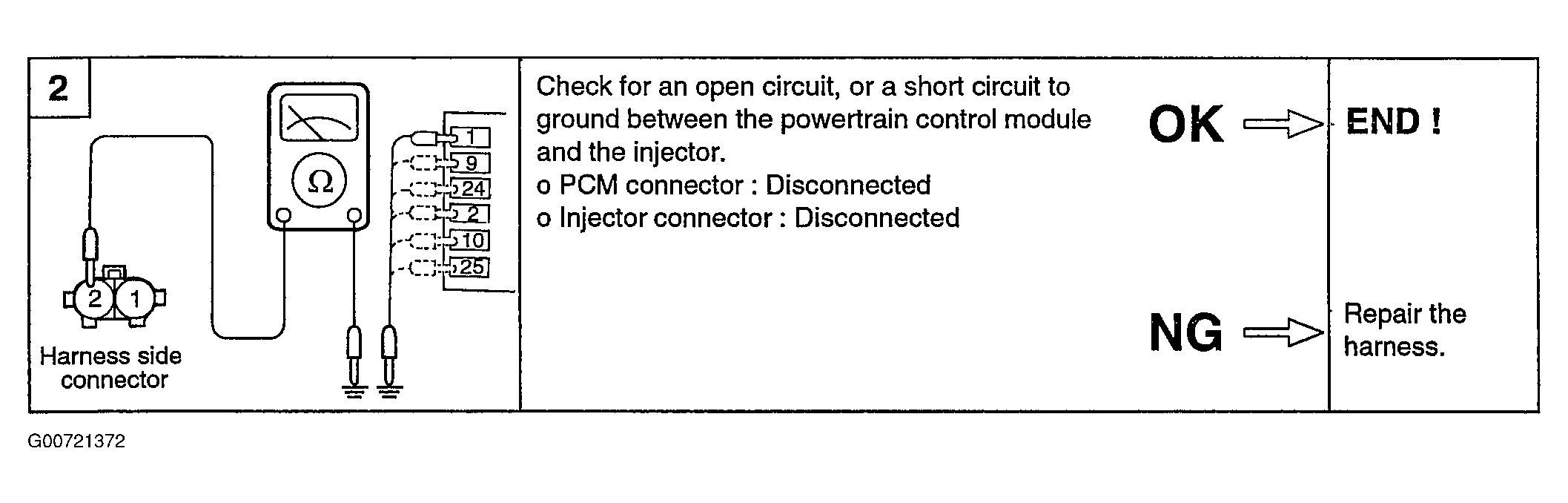

Fig 2: Checking Injector Harness (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
