Ignition Coil: Notes

The ignition power transistor functions to control the ignition timing by controlling the ignition coil primary current through signals from the PCM.

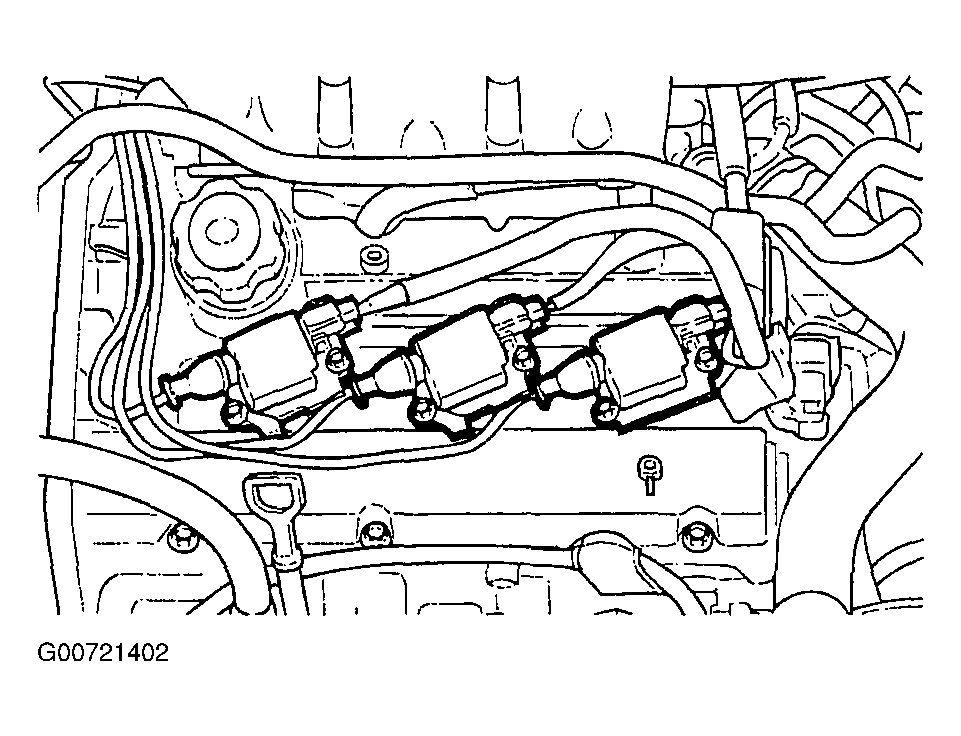

Fig 1: Locating Ignition Coils
G00721402Courtesy of HYUNDAI MOTOR CO.
