Power Window Sub Switch

  1. Remove the power window sub switch from the rear door trim panel.

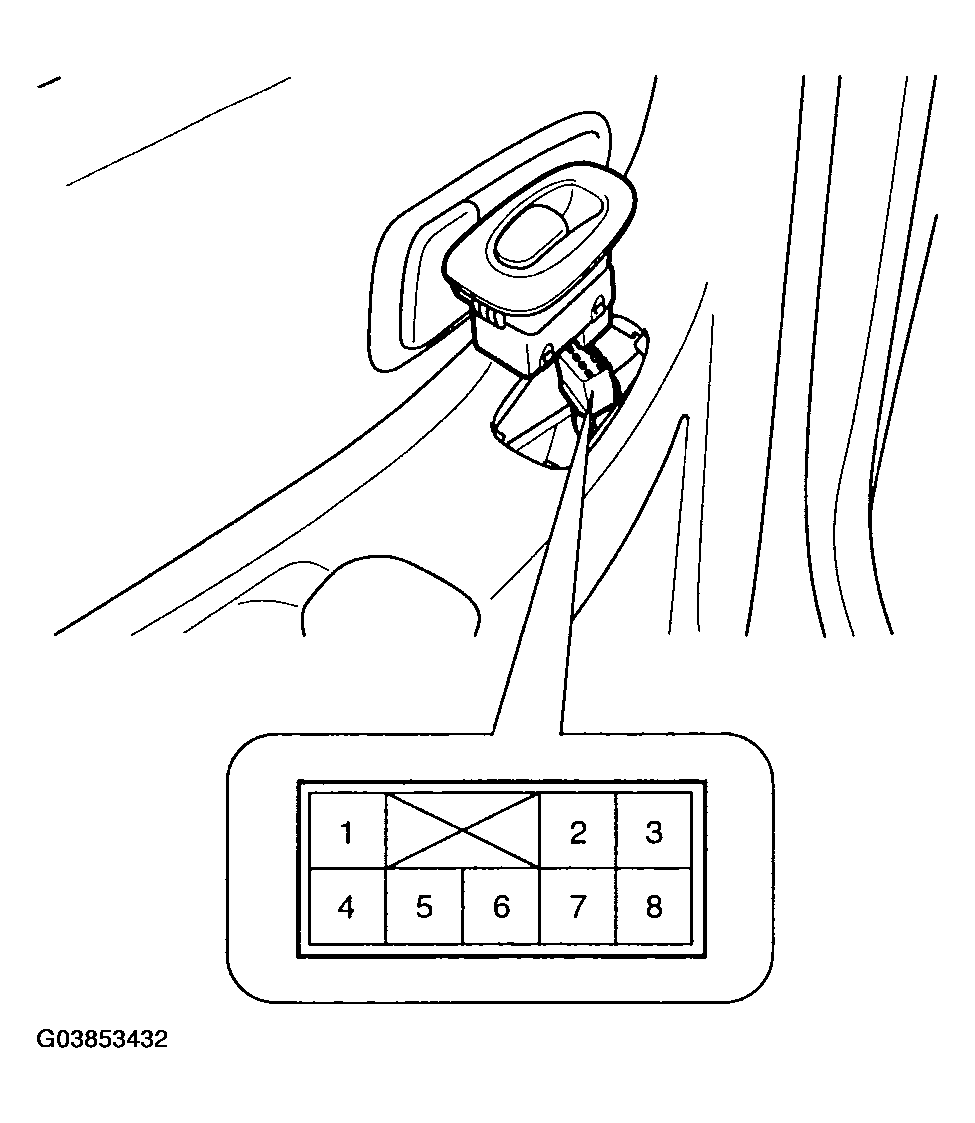

    Fig 1: Removing Power Window Sub-Switch From Rear Door Trim Panel
    G03853432Courtesy of HYUNDAI MOTOR CO.
  2. Check for continuity between the terminals.

    If continuity is not as specified in the table, replace the power window switch.

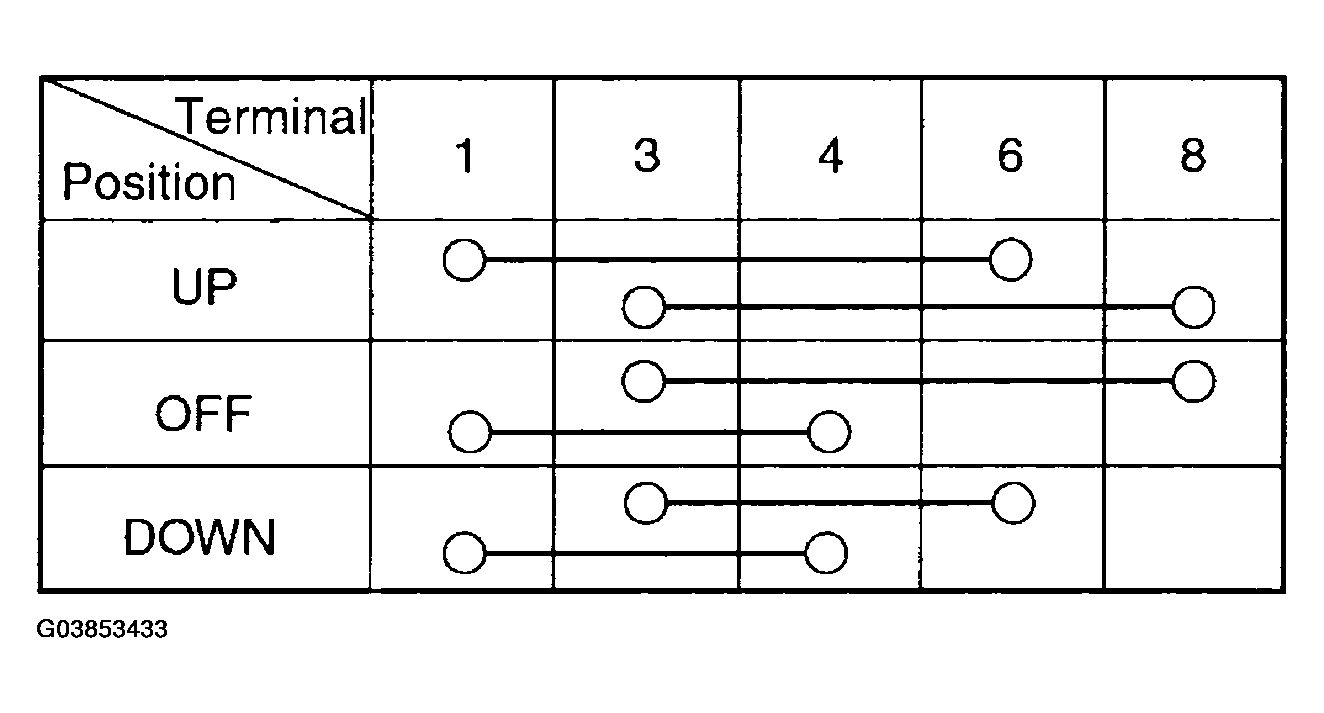

    Fig 2: Checking Power Window Sub-Switch Continuity
    G03853433Courtesy of HYUNDAI MOTOR CO.
