Adjustment Of Control Cable

  1. Eliminate slack from the control cable with the adjusting flange nut and check that the select lever operates smoothly.
  2. Driving the car, check that the transaxle is set in the proper range when the select lever is shifted to each position.

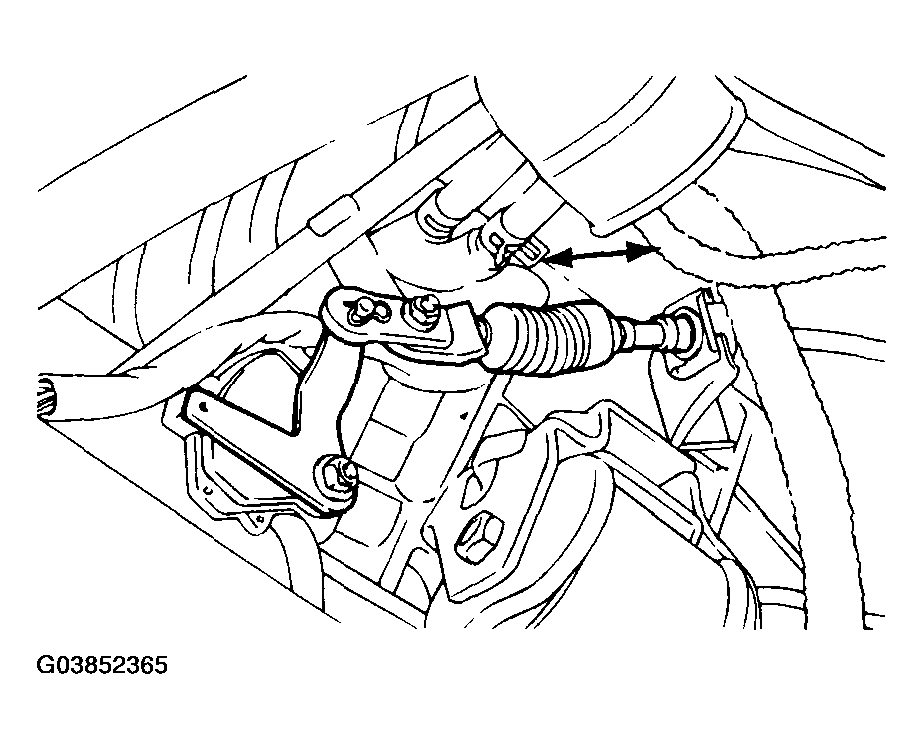

    Fig 1: Checking Transaxle Is Set In Proper Range When Selected Lever Is Shifted To Each Position
    G03852365Courtesy of HYUNDAI MOTOR CO.
