Automatic Transaxle Shift Control: Installation: Notes

  1. Apply a coating of the specified grease to the interior of the bushing.

    Specified grease:

    Chassis grease SAE J310, NLGI No.0

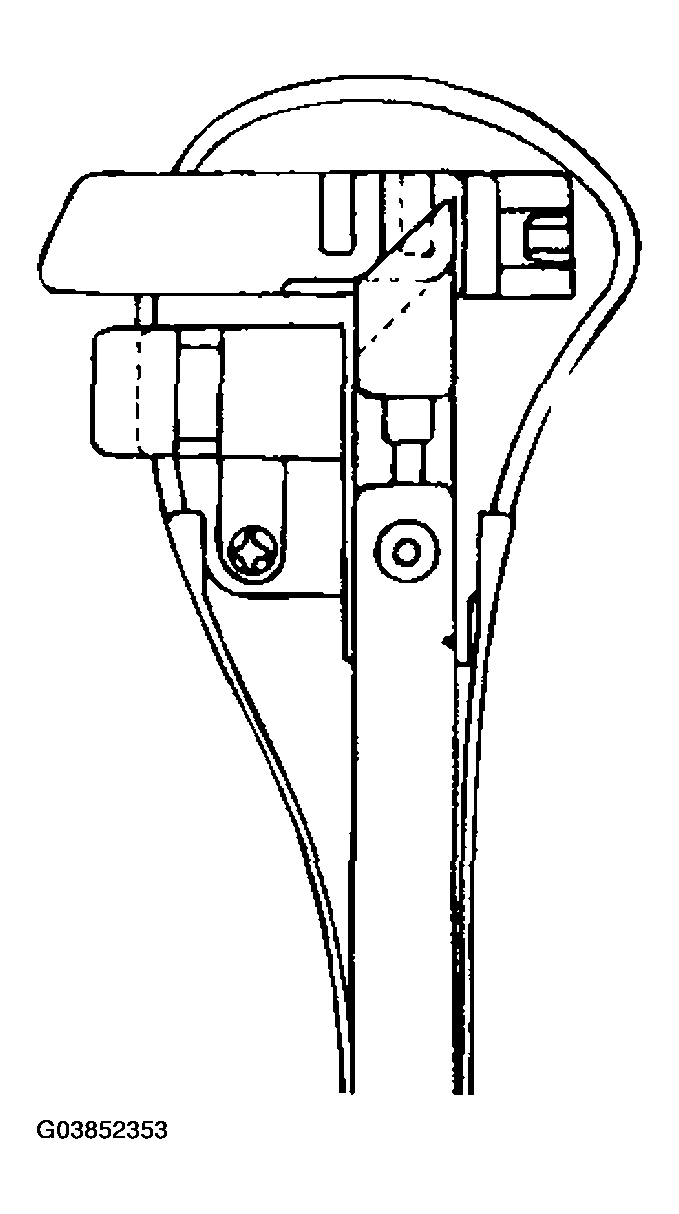

    Fig 1: Applying Coating Of Specified Grease To Interior Of Bushing
    G03852353Courtesy of HYUNDAI MOTOR CO.
  2. Move the shift lever and the transaxle range switch to the N position, and install the control cable.

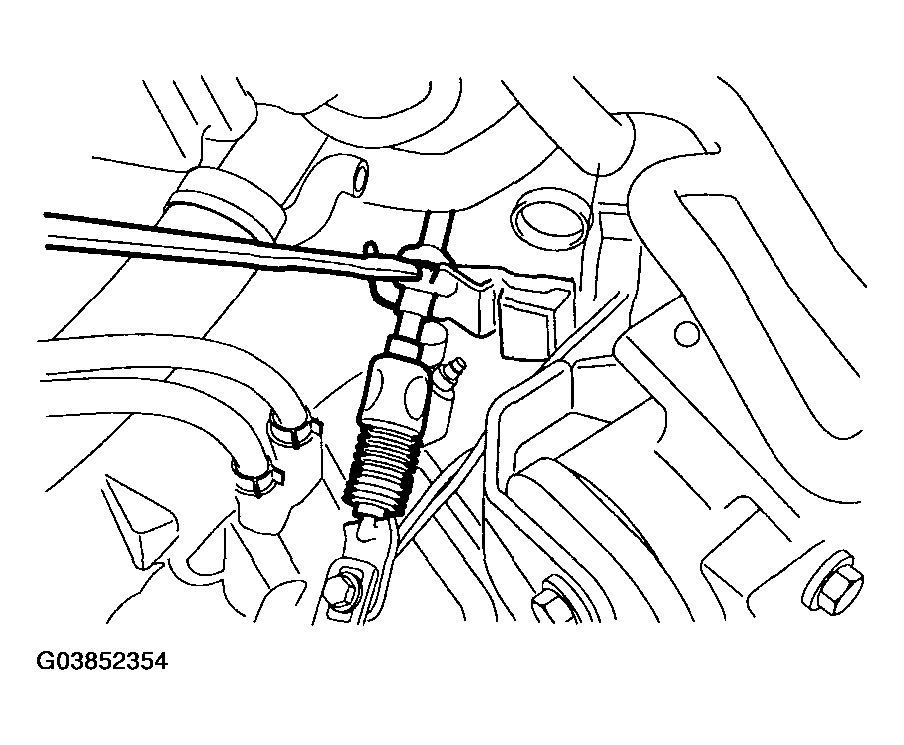

  3. Fig 2: Installing Control Cable
    G03852354Courtesy of HYUNDAI MOTOR CO.
  4. When connecting the control cable to the transaxle mounting bracket, install the clip until it contacts the control cable.

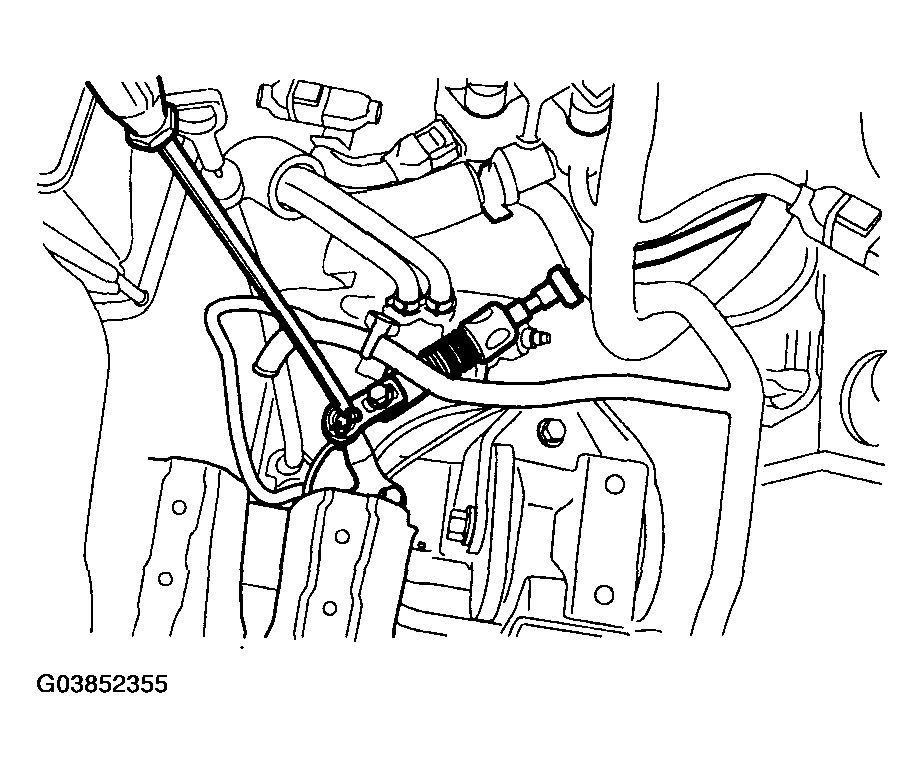

    Fig 3: Installing Shift Lever
    G03852355Courtesy of HYUNDAI MOTOR CO.
  5. Install the bolt-washer assembly and nut.

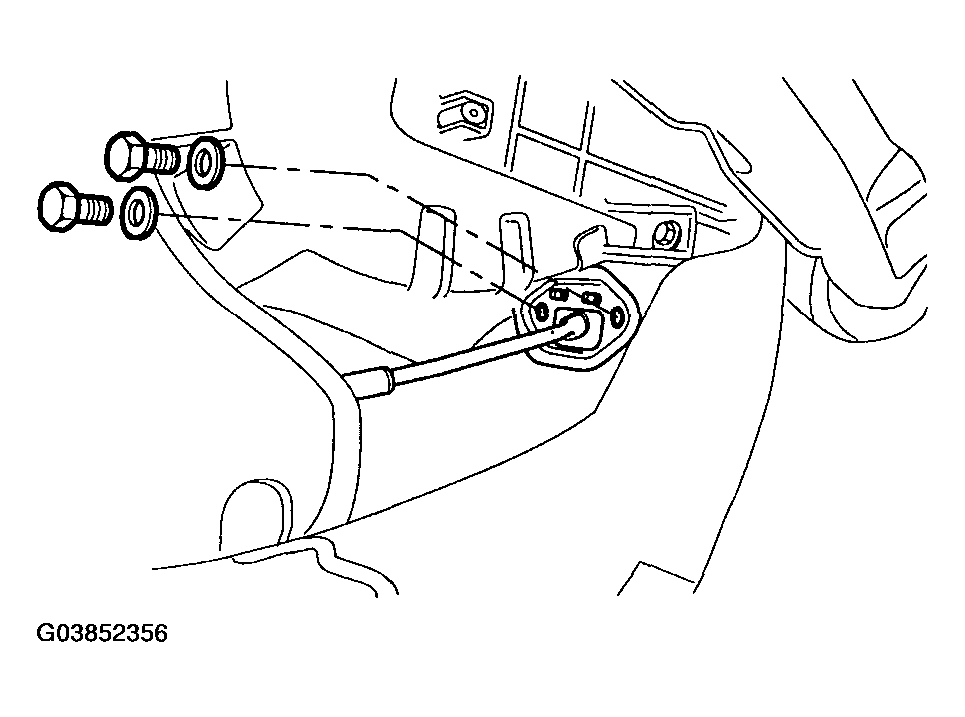

    Fig 4: Installing Bolt-Washer Assembly
    G03852356Courtesy of HYUNDAI MOTOR CO.
  6. Install the clip pin and self lock pin.

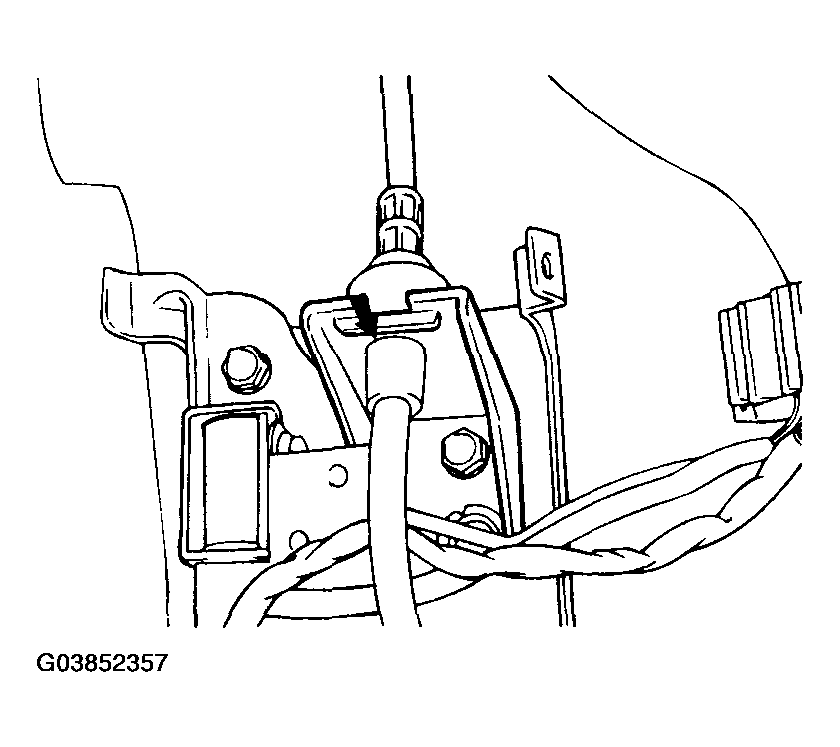

    Fig 5: Installing Clip Pin And Self Lock Pin
    G03852357Courtesy of HYUNDAI MOTOR CO.
  7. Install the cotter pin.

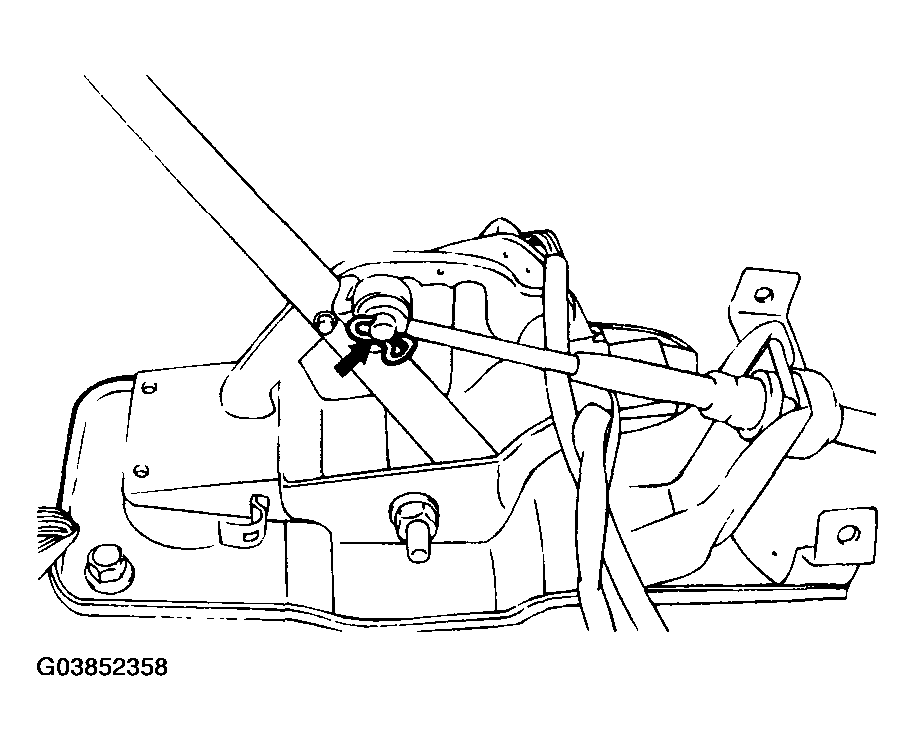

    Fig 6: Installing Cotter Pin
    G03852358Courtesy of HYUNDAI MOTOR CO.
  8. Connect the position indicator light connector, the O/D switch connector, the parking position switch connector, normal/economy select switch connector and the shift lock solenoid connector.

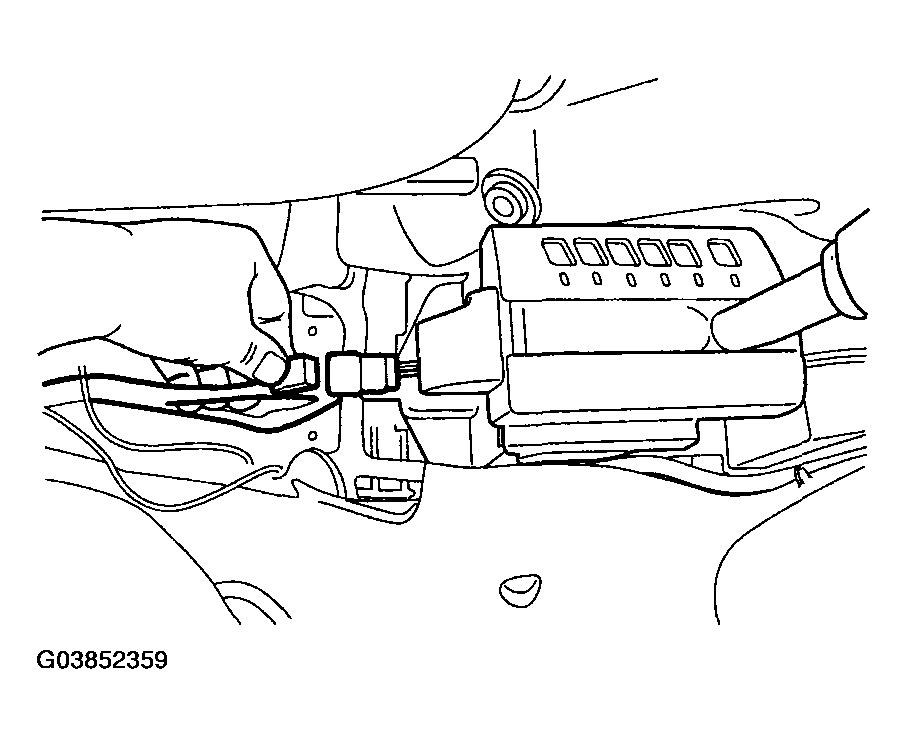

    Fig 7: Connecting Position Indicator Light Connector
    G03852359Courtesy of HYUNDAI MOTOR CO.
  9. Install the shift lever indicator assembly.
    Fig 8: Installing Shift Lever Indicator Assembly
    G03852360Courtesy of HYUNDAI MOTOR CO.
  10. Apply the specified grease at the place shown in the figure.

    Specified grease:

    Multipurpose grease SAE J310, NLGI No.2

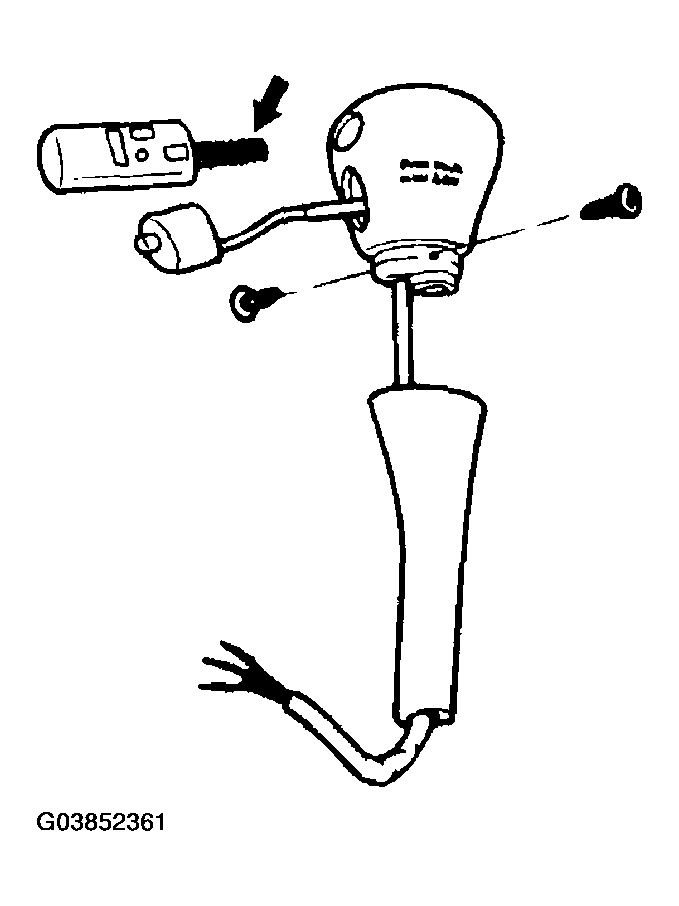

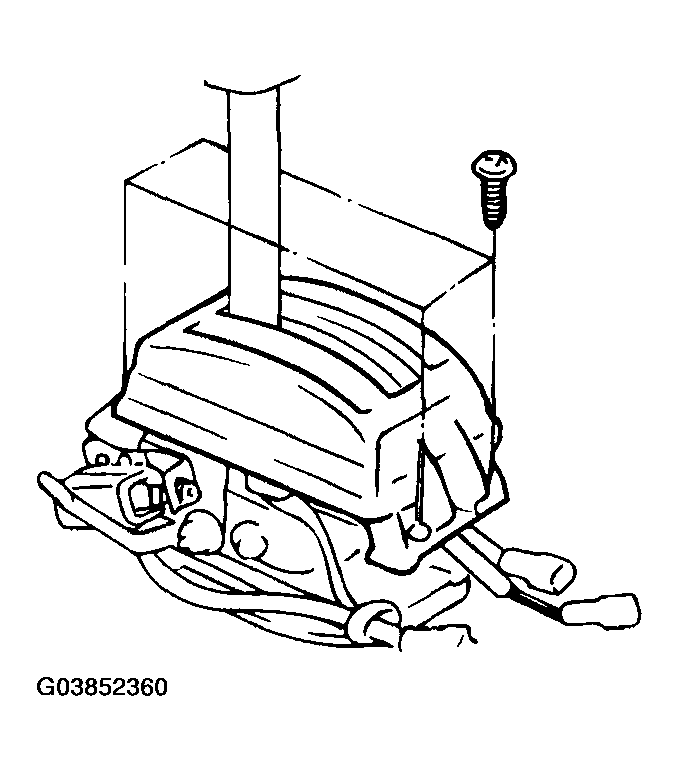

    Fig 9: Applying Specified Grease
    G03852361Courtesy of HYUNDAI MOTOR CO.
  11. Install the shift lever assembly.
  12. Place the shift lever in the N position, and then turn the cam adjusting so that the clearance between the cam adjusting and the lever assembly end in within the standard value.

    Standard value (A) 15.2~15.9 mm (0.598~0.625 in.)

    NOTE: Be sure to face B of the adjusting cam to the push button (driver's side).

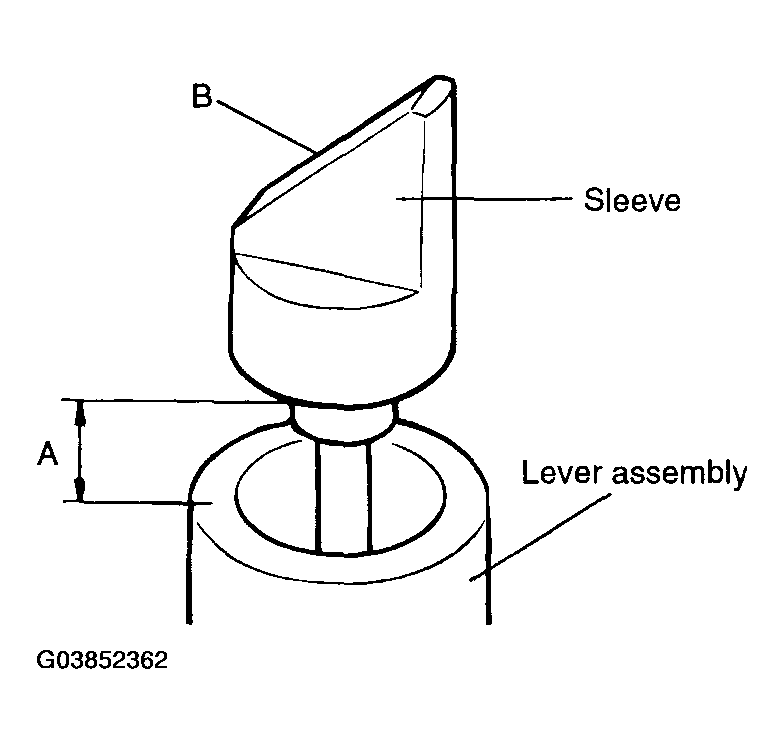

    Fig 10: Identifying Cam Adjusting And Lever Assembly End Are Within Standard Value
    G03852362Courtesy of HYUNDAI MOTOR CO.
  13. Insert the O/D switch wiring to the shift lever cover, and then assemble the pin into the O/D switch connector.
  14. Install the front console.

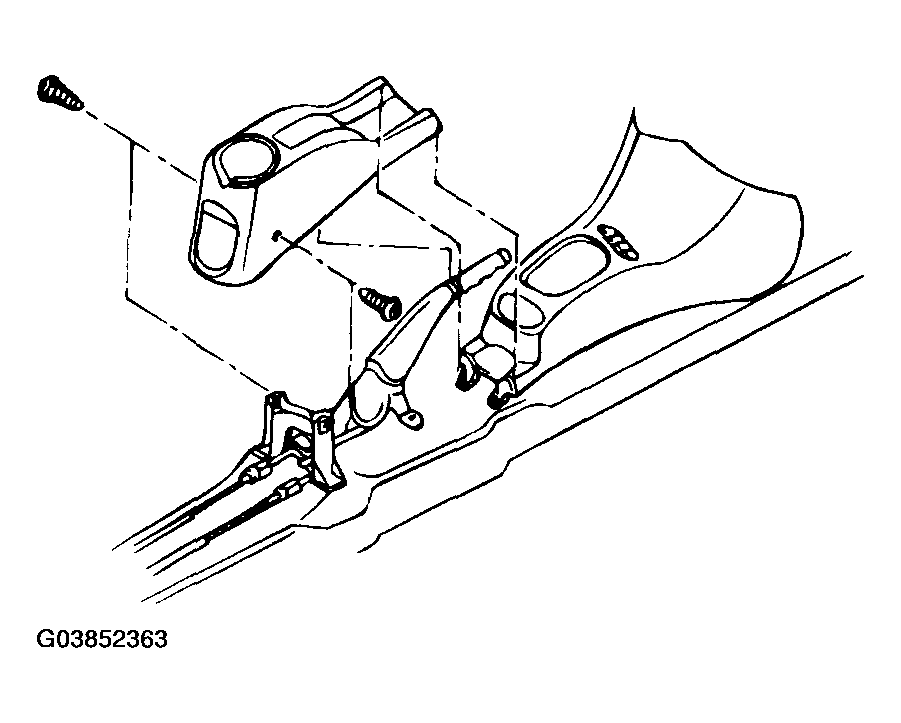

    Fig 11: Installing Front Console
    G03852363Courtesy of HYUNDAI MOTOR CO.
  15. Install the rear console.

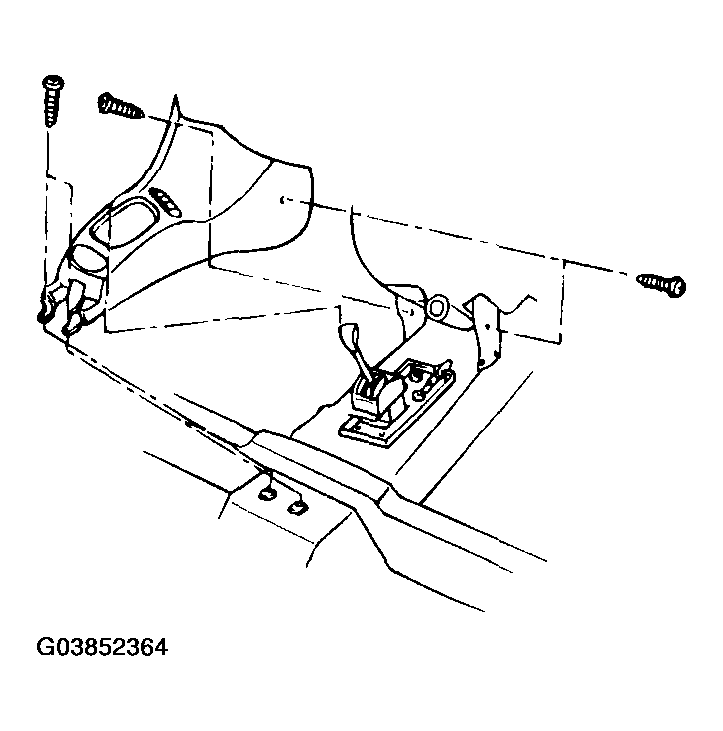

    Fig 12: Installing Rear Console
    G03852364Courtesy of HYUNDAI MOTOR CO.
